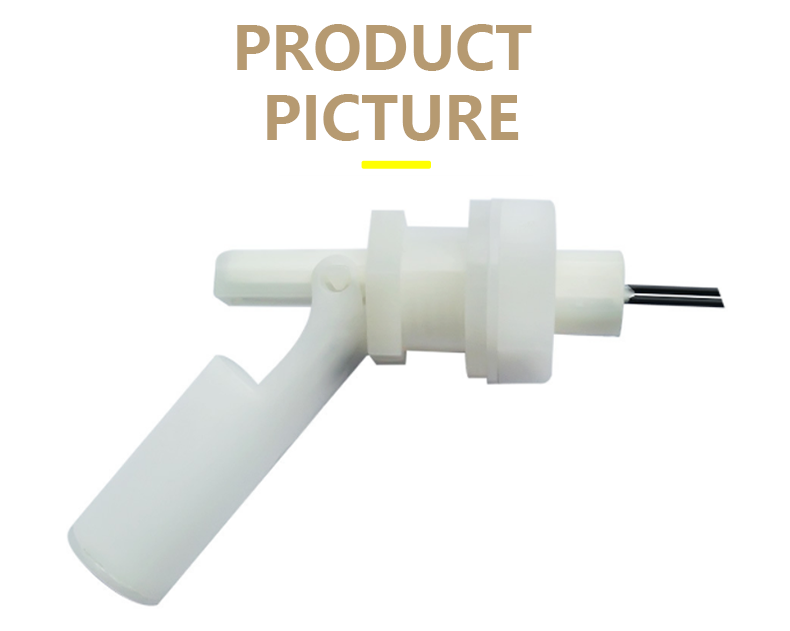

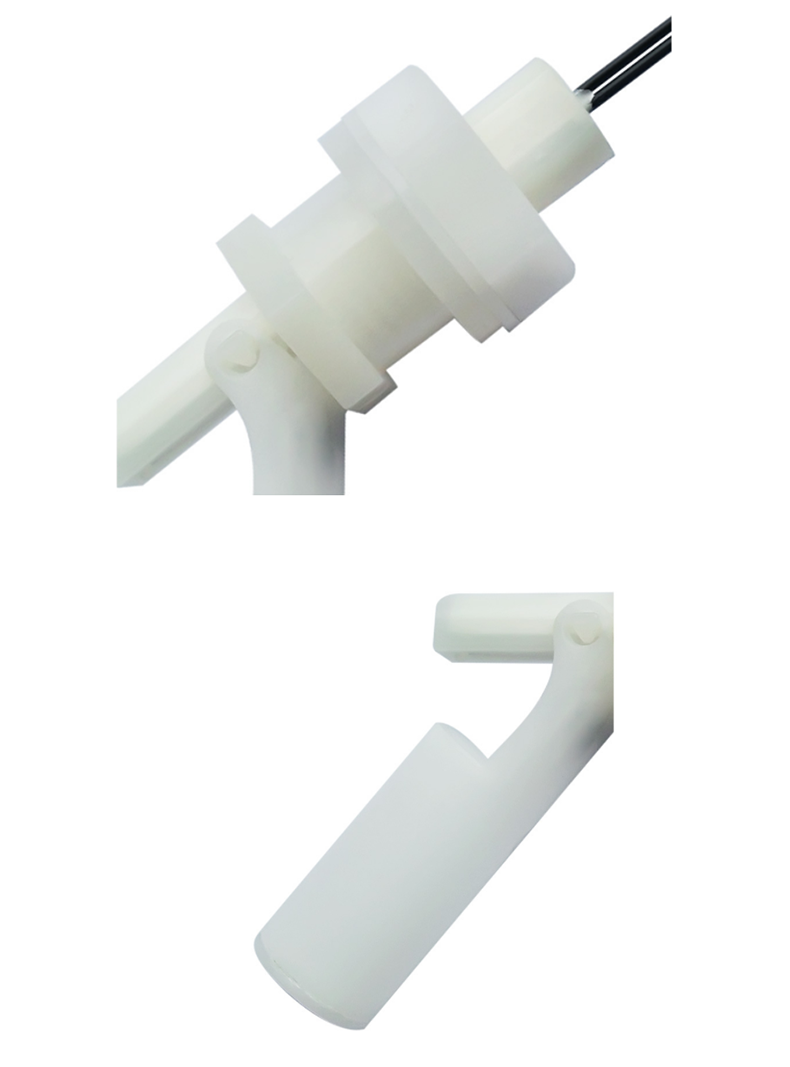

Horizontal/Side-mounted Plastic Float Water Level Switch Tank Level Control Liquid Sensor Side Mounted Float Valve Level Switch

• Model Number:XST-YW-SF121
• Type:Liquid Level Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:liquid level measurement
• Description:Float Water Level Switch
• Maximum switch power:10W
• Maximum switch voltage (DC):200V
• Maximum switch voltage (AC):140V
• Maximum switch current (DC):500mA
• Maximum switch current (AC):500mA
• Minimum breakdown voltage:250V DC
• Maximum load current:1.0A
• Maximum contact impedance:200mΩ
• Minimum insulation resistance:108MΩ
• Range of working temperature:-40℃~+80℃

product description
The principle of floating ball magnetic liquid level switch is equipped with a powerful constant magnetic field in the floating ball of the pole. Due to the rise or decrease of the liquid level, the magnetic field generated inside the floating ball triggers the dry reservoir in the pole to generate action. Widely used in the field of liquid level measurement, liquid level alarm and liquid level safety control.

Characteristic

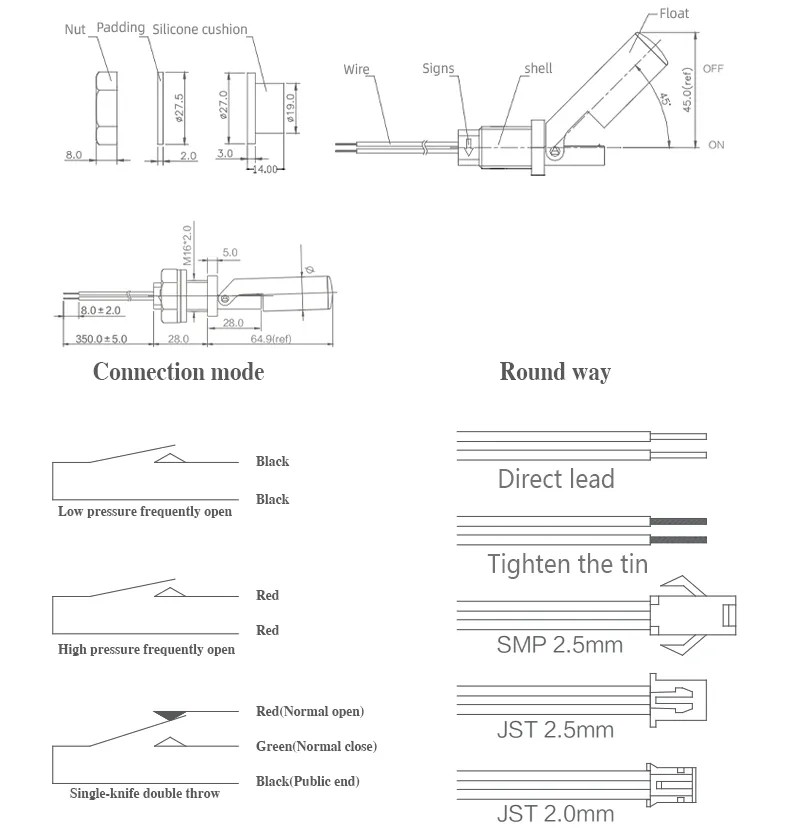

Frequently open, normally close can be rotated by 180 ° to choose
Internal installation, customer can customize the connection method
Shell material food grade
High cost performance, high stability, long service life

Application field
Liquid level control, liquid level measurement
Household appliance liquid level detection
Water heater, coffee machine, water dispenser, humidifier, etc.
Line container water level monitoring
