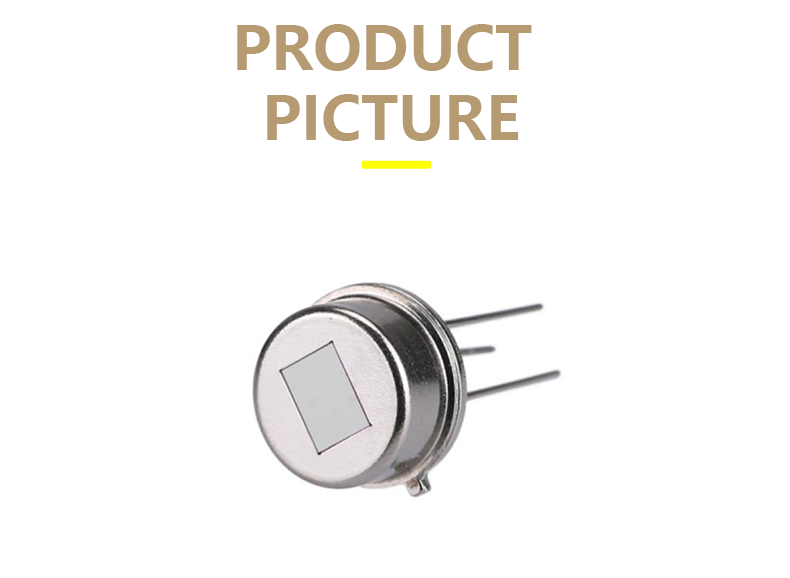

Pyroelectric Infrared Sensor RD624 for Human body detection lighting,Home Appliance and Auto control

• Model Number:XST-RD-624
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Human body detection lighting
• Brand:Pyroelectric Infrared Sensor
• Voltage - Supply:3~15V
• Output Type:3~15V
• Humidity Range:-30~70℃
• Size:None
• Measuring Range:None
• Resolution:None
• Interface:None
• Technology:None
• Sensing Range:None
• Bandwidth:None
• Function:None
• Acceleration Range:None
• Sensitivity (LSB/g):None
• Sensitivity (mV/g):None
• Sensitivity (LSB/(°/s)):None
• Sensitivity (mV/°/s):None
• Sensing Distance:None
• Power - Rated:None
• Power - Max:None
• Sensing Object:None
• Sensing Light:None
• Resistance:None
• Resistance Tolerance:None
• Sensing Temperature - Remote:None
• Current Rating - AC:None
• Current Rating - DC:None
• Tolerance:None
• Voltage - Rated:None
• Flow Sensor Type:None
• Voltage - Input:None
• Application:None
• Output Function:None
• Cross Reference:None

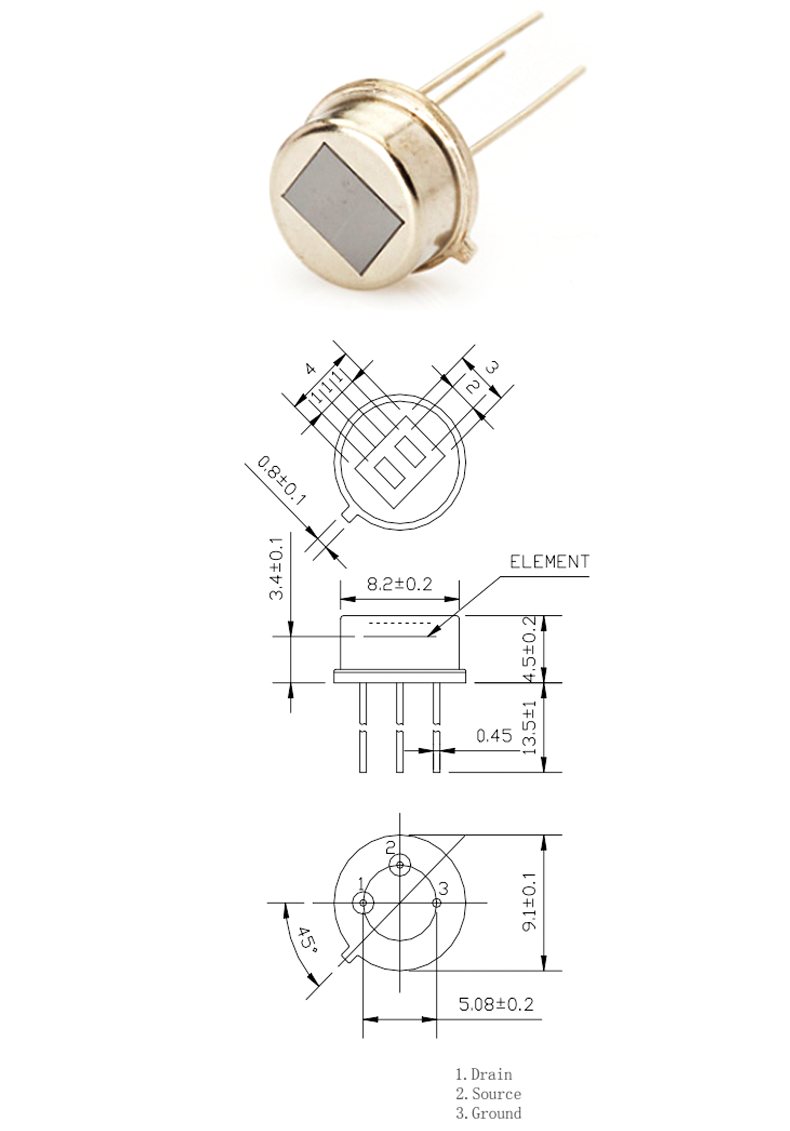

• Infrared receiving Electrode:2x1mm, 2 sensitive elements
• Window Size:3x4mm
• Receiving Wavelength:5~14um
• Transmittance:>75%
• Output signal peak[Vp-p]:≥3500mV
• Sensitivity:≥3200V/W
• Source Voltage:0.3~1.1V
• Storage temperature:-40~80℃
• Output balance degree:<10%
• Noise peak[Vp-p]:<70mV

Pyroelectric Infrared Sensor detects the infrared radiation by using the temperature-dependent feature. It suppresses the interference caused by temperature change, adopts the method of dual sensing elements complementary which improves the stability of the sensor. This PIR sensor can be
widely used in safety device, burglar alarm, automatic door, auto light control and intelligent toys.

Features:
High transmittance and good selectivity filter
Adopting dual-sensing elements compensation structure, high resistance to external environment
interference
High sensitivity and excellent signal to noise ratio
High Stability and strong anti-jamming ability (e.g. vibration, radio-frequency interference etc.)

Applications
Human body detection lighting;
Auto control door, toys, switches;
Anti-crime devices: security camera, alarm;
Home Appliance;
