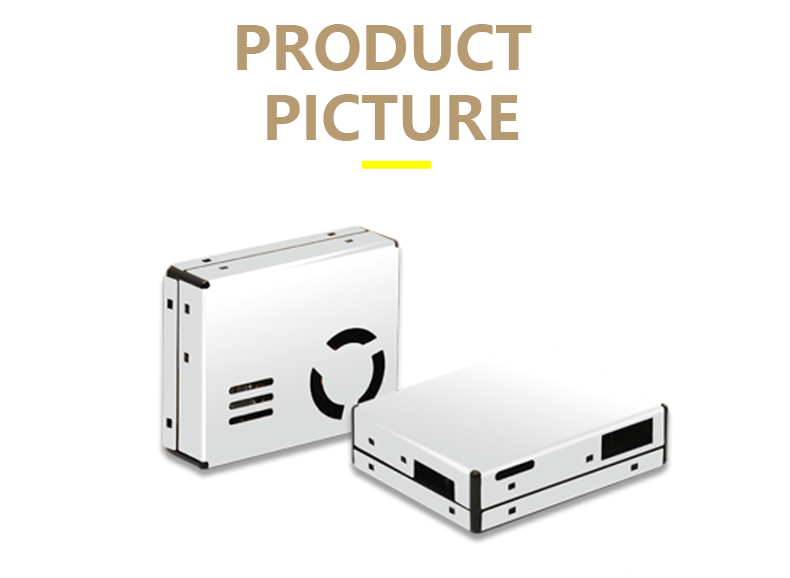

ZH06 Laser dust sensor module PM2.5 sensor ZH06-II ZH06-IV can be detected with large dust particles
XST-ZH06
minimum order
1 piece
Quantity
- Model Number:XST-ZH06
- Type:Dust Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:detect the dust particles
- Description:Dust Sensor
- Detection Range:0.3-10μm
- Effective Range:0-1000μg/m³
- Detection Interval:1s
- PM2.5 Detection Accuracy:0-100 μg/m³:±15μg/m³
- Preheating Time:30s
- Working Voltage:4.9V~5.5V(DC)
- Working Current:<120mA
- Response Time:Response Time
- Working Humidity:0~80%RH
- Working Tem:-10~60℃
Description:

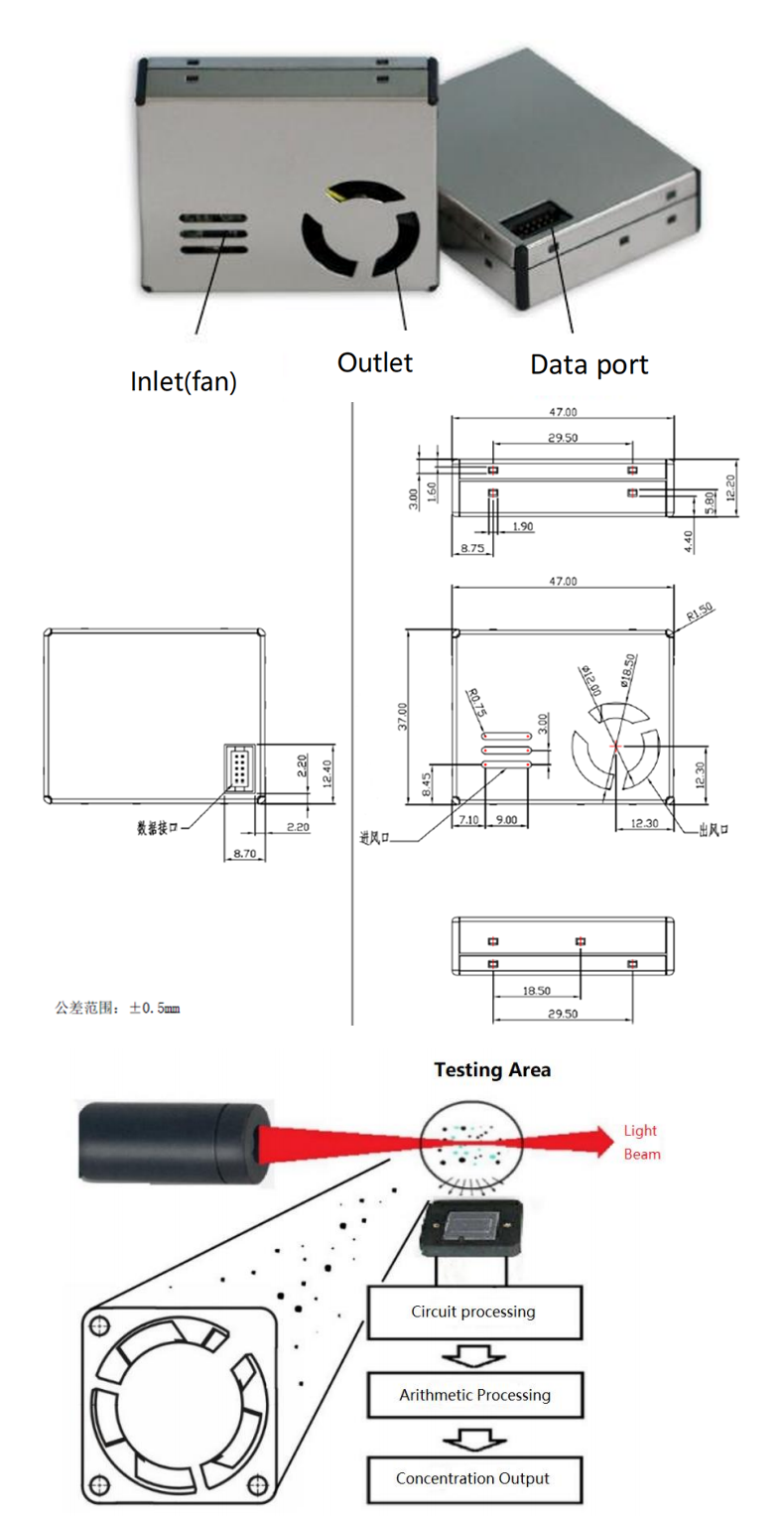

Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good consistency and stability. It is easy to use, with UART & PWM output;Small size is suitable for integrating.
Features:
Good consistency
Real time response
Accurate data
Low power consumption
Minus resolution of particle diameter
is 0.3 µm
Main Applications:
Air purifiers
Ventilation systems
Portable instrument
Air quality monitoring equipment
Air conditioner
Smart home fields
| Model | ZH06 |
| Detection Range | 0.3-10μm |
| Effective Range | 0-1000μg/m³ |
| Detection Interval | 1s |
| PM2.5 Detection Accuracy | 0-100 μg/m³:±15μg/m³ 101-1000 μg /m³: ± 15% Reading (Test Condition: 25 ± 2 ℃, 50 ± 10% RH,TSI8530, Cigarette, GBT18801-2015) |
| Preheating Time | 30s |
| Output | UART_TTL Output (3.3V level) |
| PWM Output (3.3V level) | |
| Working Voltage | 4.9V~5.5V(DC) |
| Working Current | <120mA |
| Dormancy Current | <20mA |
| Response Time | T90<45s |
| Working Humidity | 0~80%RH(No Condensation) |
| Working Tem | -10~60℃ |
| Storage Tem | -30~70℃ |
| Weight | <30g |
| MTTF | Continuous >10000H |
