Electrochemical Alcohol Module ZE29A-C2H5OH Fuel Cell Alcohol Sensor For Detect Exhaled Alcohol Gas

• Model Number:XST-ZE29A
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Detect Exhaled Alcohol Gas
• Brand:Electrochemical Alcohol Module
• Voltage - Supply:5V±0.3V
• Current - Supply:<500mA
• Operating Temperature:10℃~40℃

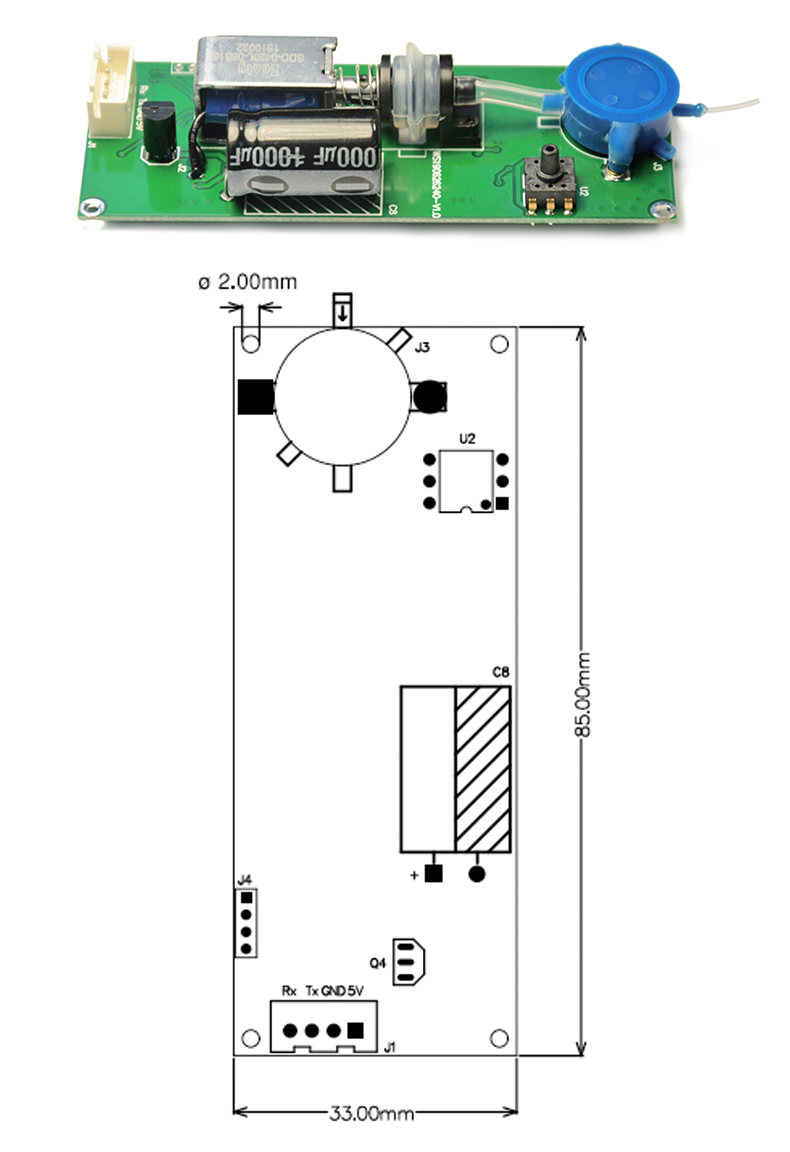

• Size / Dimension:85*33*18mm
• Sensing Object:none
• Sensing Light:none
• Resistance:none
• Resistance Tolerance:none
• Current Rating - AC:none
• Current Rating - DC:none
• Tolerance:none
• Voltage - Rated:none
• Flow Sensor Type:none
• Voltage - Input:none
• Application:none
• Output Function:none
• D/C:none
• Cross Reference:none
• Sensor Type:Fuel cell alcohol sensor
• Target Gas:Alcohol
• Output:UART (3.3V TTL)
• Preheating time:≤10s
• Detection Range:0~1.0 mg/l
• Storage temperature:-10℃~70℃

Profile

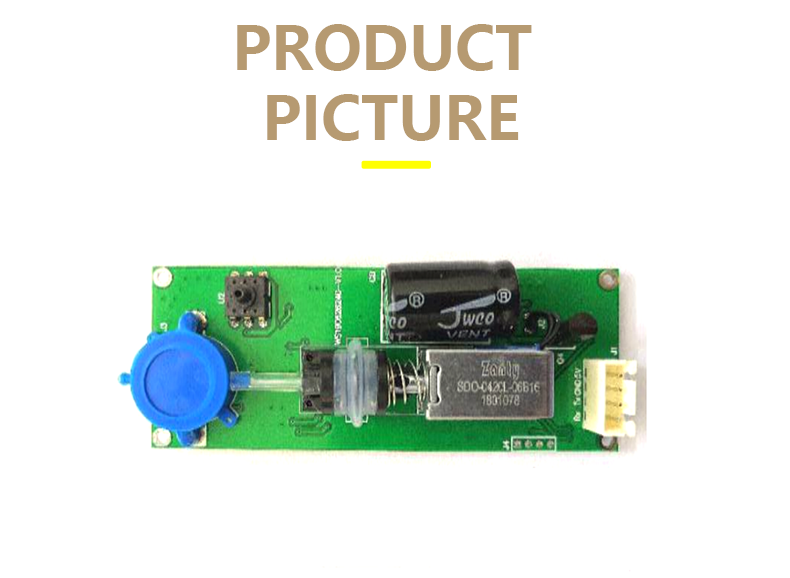

The ZE29A-C2H5OH electrochemical alcohol sensor module is to detect exhaled alcohol gas. With electrochemical alcohol sensor as core part and built-in temperature compensation sensor, it has high accuracy, high sensitivity, and strong anti-interference ability. It’s integrated with pressure sensor, which can realize blowing action detection to further ensure the accuracy of measurement. This product is suitable for alcohol detection of drunk driving or before work.

Features
High-precision and high-sensitivity
UART output
Blow interruption alarm
High stability and strong anti-interference ability

Application
Portable alcohol detector;
Car alcohol testing
