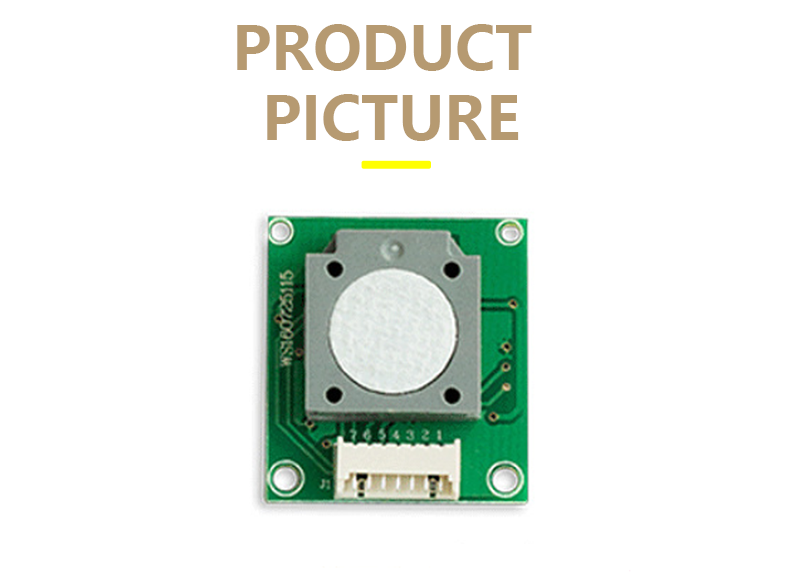

ZE08-CH2O Common Type Of Electrochemical Sensor Module Formaldehyde Home Decoration Module Air Quality

• Model Number:XST-ZE08
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Industrial Automation
• Brand:Electrochemical CH2O Detection Module
• Voltage - Supply:3.7V~5.5V
• Output Type:0.4~2V DAC
• Operating Temperature:-20℃~50℃
• Humidity Range:15%RH-90%RH
• Resistance:none
• Resistance Tolerance:none
• Sensing Temperature - Local:none
• Sensing Temperature - Remote:none
• Current Rating - AC:none
• Current Rating - DC:none
• Tolerance:none
• Voltage - Rated:none
• Flow Sensor Type:none
• Voltage - Input:none
• Application:none
• Output Function:none
• D/C:none
• Cross Reference:none
• Target Gas:CH2O
• Interference Gas:Alcohol, CO &ect.
• Warm up time:≤3 minutes
• Response time:≤60s
• Detection Range:0~5ppm
• Resolution:≤0.01ppm
• Storage temp.:0~25℃
• Working life:5 years (in clean air 18 ℃ ~ 25 ℃)

Profile
ZE08-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature sensor to make temperature compensation. It has the digital output and analog voltage output at the same time. It is a combination of mature electrochemical detection principle and sophisticated circuit design.

Features
High sensitivity &resolution, Low power consumption, Long life
UART/Analog Voltage/PWM wave output
Good stability, excellent ability of Anti-interference
Temperature compensation , Excellent Linear output

Main Application
Portable detector, air-quality monitor, air cleaner, air renewal system, air conditioner, smart home.
