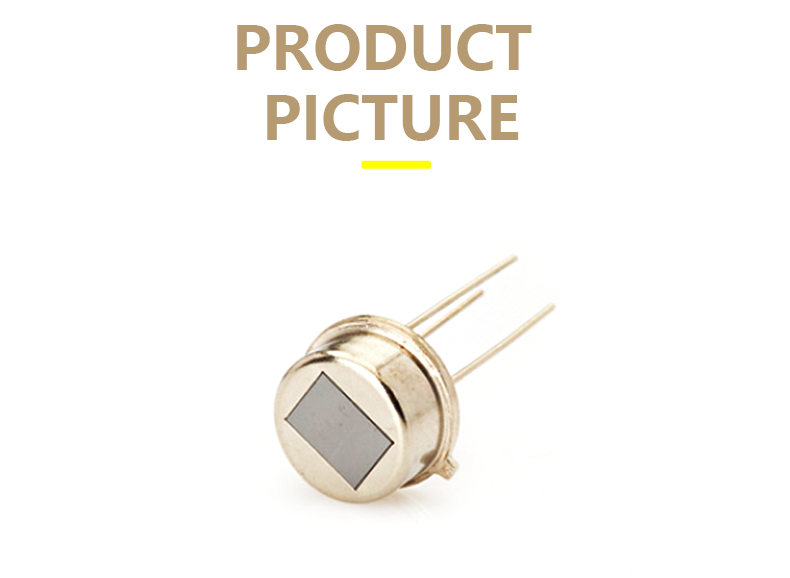

RD-623 Pyroelectric Infrared Sensor used in safety device, burglar alarm, automatic control and intelligent toy

• Model Number:XST-RD-623
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:safety device, burglar alarm, automatic control
• Brand:RD-623 Pyroelectric Infrared Sensor
• Output Type:2~15V
• Current - Supply:0.2~1.5V
• Operating Temperature:-30~70℃
• Mounting Type:DIP
• Resolution (Bits):none
• Current - Supply (Max):1.5V
• Packaging:none
• Operating Force:none
• Oxygen Range:none
• Resolution:none
• Interface:none
• Technology:none
• Sensing Range:none
• Acceleration Range:none
• Sensitivity (LSB/g):none
• Sensitivity (mV/g):none
• Sensitivity (LSB/(°/s)):none
• Sensitivity (mV/°/s):none
• Voltage - Output Difference (Typ) @ Distance:none
• Voltage - Output (Typ) @ Distance:none
• Sensing Object:none
• Sensing Light:none
• Resistance:none
• Resistance Tolerance:none
• Sensing Temperature - Local:none
• Sensing Temperature - Remote:none
• Current Rating - AC:none
• Current Rating - DC:none
• Tolerance:none
• Voltage - Rated:none
• Flow Sensor Type:none
• Voltage - Input:none
• Application:none
• Output Function:none
• Cross Reference:none
• Standard Encapsulation:Standard Encapsulation

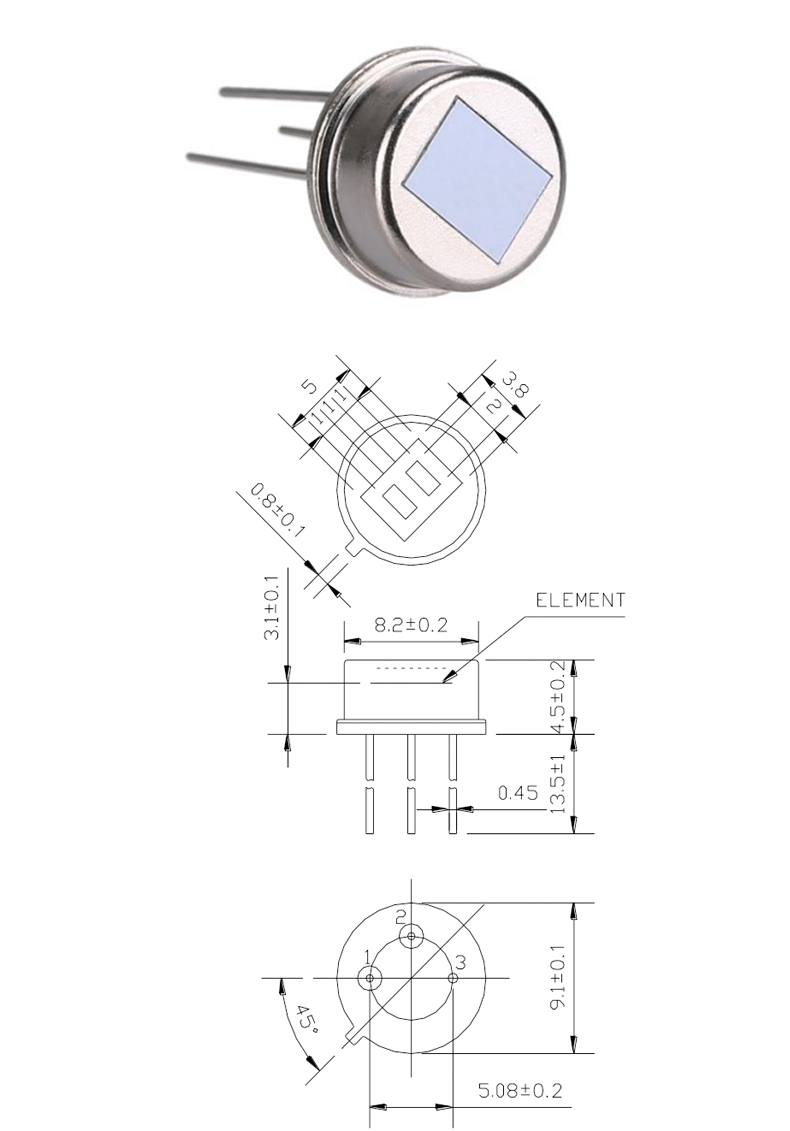

• Infrared receiving Electrode:2x1mm, 2 sensitive elements
• Window Size:3.8x5mm
• Receiving Wavelength:7~14um
• Transmittance:>75%
• Output signal peak[Vp-p]:3500mV
• Sensitivity:3200V/W
• Working temperature:-30~70℃
• Working Voltage:2~15V
• Source Voltage:0.2~1.5V

Pyroelectric Infrared Sensor detects the infrared radiation by using the temperature-dependent feature. It suppresses the interference caused by temperature change adopts the method of dual sensing elements complementary which improves the stability of the sensor. This PIR sensor can be widely used in safety device, burglar alarm, automatic door, auto light control and intelligent toys.

Features:
* High sensitivity and excellent signal to noise ratio
* High temperature-dependent stability
* Strong anti-jamming ability (e.g. vibration, radio-frequency interference etc.)
* High value with competitive price

Applications
Safety Alarm
Electricity Lighting
House-hold and other fields
