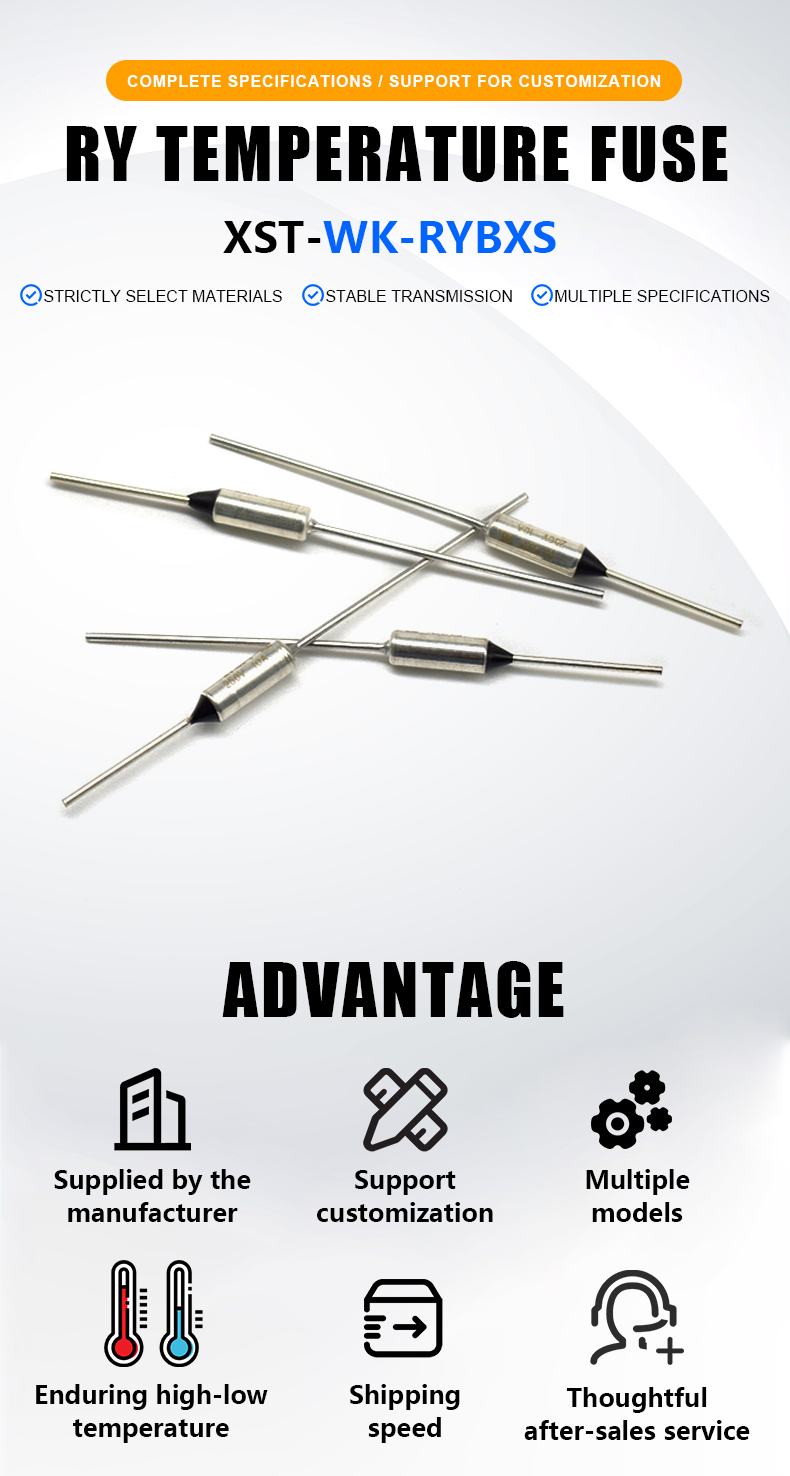

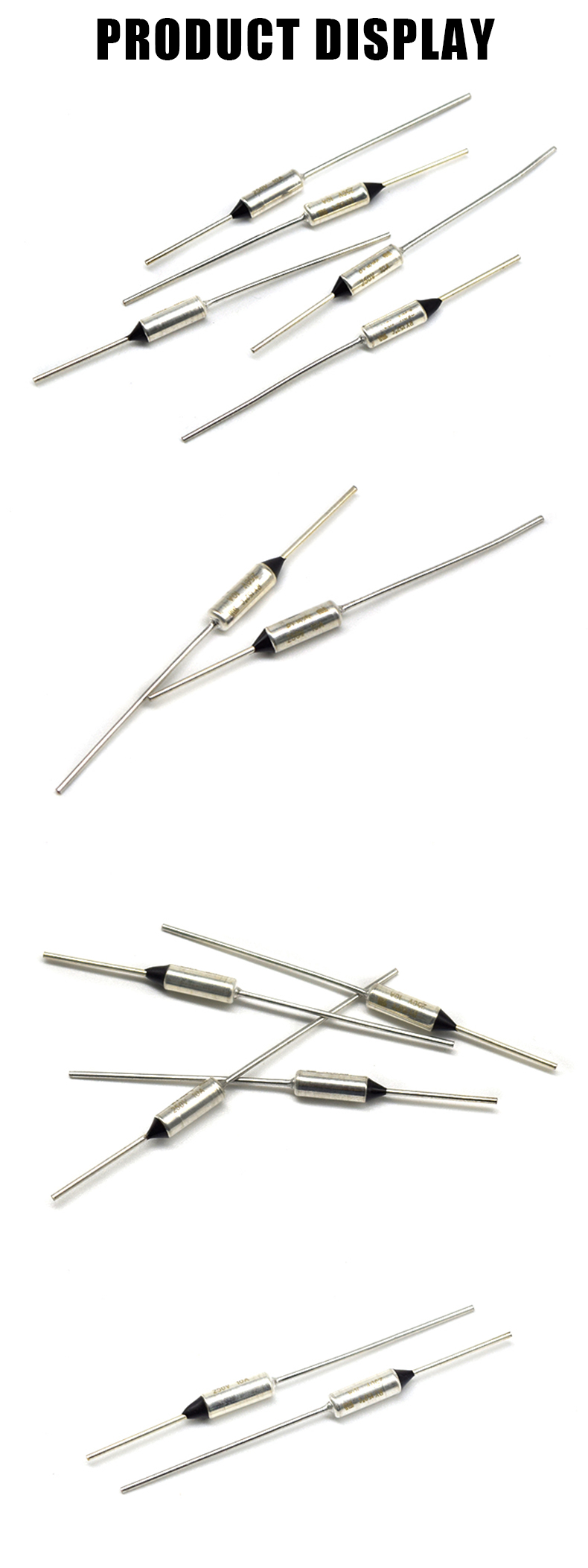

Metal temperature thermal fuse tube RY TF 150 degrees 10A 250V electric Rice cooker and other household appliance thermal fuse
BL-WK-RYBXS
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Mulsens
- Model Number:BL-WK-RYBXS
- Use:LOW VOLTAGE
- Breaking Capacity:Low
- Safety Standards:IEC
- Rated Current:10A, 16A
- Rated voltage:not greater than 125/250 volts
- Rated current:not greater than 16/10 amps
- frequency:below 62HZ AC and DC current use
- stored relative humidity:not more than 90%
- Certification:CQC/UL/TUV
Thermal links, also known as thermal fuses, are disposable overheat protection devices. It is widely used for overheat protection of electrical, electronic equipment, and household appliances and components, such as small appliances such as coffee makers, hair dryers, irons, and rice cookers The effect of soybean milk machine, electric kettle, multi-function hotpot, etc. depends not only on the performance of the thermal fuse link, but also on the installation location, installation method and the current passing through.
Model | Action temperature Tf ℃ | Accurate temperature Ta ℃ | Maintain temperature Th ℃ | Extreme temperature Tm ℃ | Rated voltage AC | Rated current A |
RY72 | 72 | +0. -5℃ | 47 | 100 | 250V | 10A |
RY77 | 77 | +0. -5℃ | 52 | 125 | 250V | 10A |
RY84 | 84 | +0. -5℃ | 59 | 125 | 250V | 10A |
RY98 | 98 | +0. -5℃ | 72 | 140 | 250V | 10A |
RY104 | 104 | +0. -5℃ | 76 | 150 | 250V | 10A |
RY110 | 110 | +0. -5℃ | 85 | 150 | 250V | 10A |
RY121 | 121 | +0. -5℃ | 96 | 150 | 250V | 10A |
RY135 | 135 | +0. -5℃ | 108 | 160 | 250V | 10A |
RY142 | 142 | +0. -5℃ | 118 | 165 | 250V | 10A |
RY155 | 155 | +0. -5℃ | 125 | 172 | 250V | 10A |
RY157 | 157 | +0. -5℃ | 125 | 172 | 250V | 10A |
RY167 | 167 | +0. -5℃ | 142 | 210 | 250V | 10A |
RY172 | 172 | +0. -5℃ | 140 | 198 | 250V | 10A |
RY184 | 184 | +0. -5℃ | 160 | 205 | 250V | 10A |
RY192 | 192 | +0. -5℃ | 165 | 280 | 250V | 10A |
RY216 | 216 | +0. -5℃ | 192 | 310 | 250V | 10A |
RY230 | 230 | +0. -5℃ | 200 | 310 | 250V | 10A |
RY240 | 240 | +0. -5℃ | 200 | 380 | 250V | 10A |
FAQ:
Q1: Can you customize the product?
A1: Yes. We can customize according to needs, drawings, and samples. We have customized many products for our customers. We also made many molds for our customers.
Q2: Can you send me the catalogue to have a check of all your products?
A2: Our catalogue shows most of our products, but not all. So just let us know what product do you need ,and how many do you want If we do not have it , we can also design and make a new mould to produce it . For your reference, making a ordinary mould will take about 15-30days.
Q3: I need your price list of all your products, do you have a price list?
A3: We do not have a price list of all of our products.Because we have so many items,and it's impossible to mark all of their price on a list. And the price are always changing because of the material cost and quantity.And you can give us a list for all of the item you needed, we will confirm carefully one by one,and give you specification and price list .
Q4: Can you provide free samples?
A4:we can provide free samples. Normally, we provide 1-10pcs free samples for test or quality checking .But you have to pay for the shipping cost . If you need many items, or need more qty for each item,we will charge for the samples.
Q5: Do you test all your goods before delivery?
A5:Yes, we have 100% test before delivery
Q6: What about your delivery time?
A6: Different products and quantities have different procedures and different production time. We promise we will try our best to finish all your orders within the shortest time.
Q1: Can you customize the product?
A1: Yes. We can customize according to needs, drawings, and samples. We have customized many products for our customers. We also made many molds for our customers.
Q2: Can you send me the catalogue to have a check of all your products?
A2: Our catalogue shows most of our products, but not all. So just let us know what product do you need ,and how many do you want If we do not have it , we can also design and make a new mould to produce it . For your reference, making a ordinary mould will take about 15-30days.
Q3: I need your price list of all your products, do you have a price list?
A3: We do not have a price list of all of our products.Because we have so many items,and it's impossible to mark all of their price on a list. And the price are always changing because of the material cost and quantity.And you can give us a list for all of the item you needed, we will confirm carefully one by one,and give you specification and price list .
Q4: Can you provide free samples?
A4:we can provide free samples. Normally, we provide 1-10pcs free samples for test or quality checking .But you have to pay for the shipping cost . If you need many items, or need more qty for each item,we will charge for the samples.
Q5: Do you test all your goods before delivery?
A5:Yes, we have 100% test before delivery
Q6: What about your delivery time?
A6: Different products and quantities have different procedures and different production time. We promise we will try our best to finish all your orders within the shortest time.
