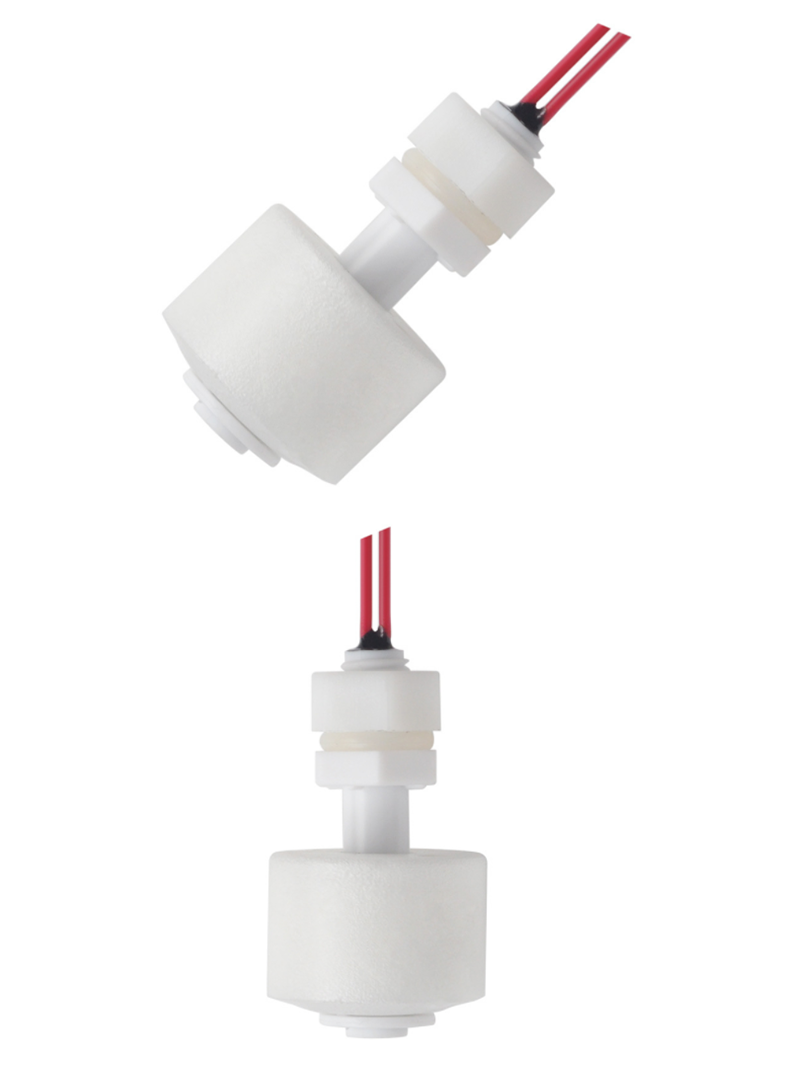

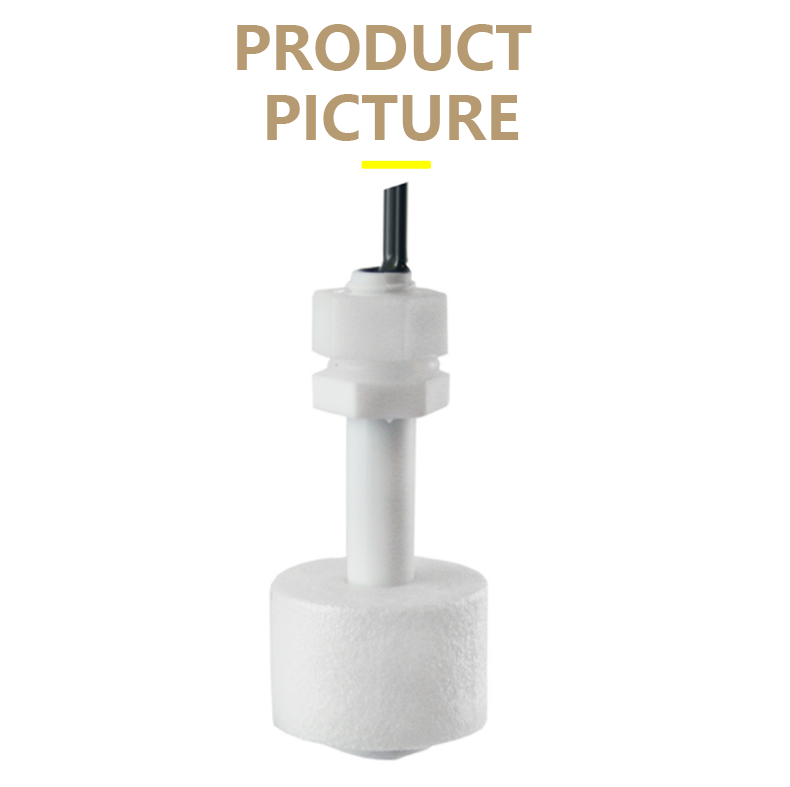

PP Liquid Water Level Sensor Horizontal Float Switch Down For Water Level Control

• Model Number:XST-YW-SF11D
• Type:Liquid Level Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Water Level Control
• Description:Liquid Water Level Sensor
• Maximum switch power:10W
• Maximum switch voltage (DC):200V
• Maximum switch voltage (AC):140V
• Maximum switch current (DC):500mA
• Maximum switch current (AC):500mA
• Minimum breakdown voltage:230V DC
• Maximum load current:1.75A
• Maximum contact impedance:100mΩ
• Minimum insulation resistance:106MΩ
• Range of working temperature:-40℃~+80℃

Product description
The principle of floating ball magnetic liquid level switch is equipped with a powerful constant magnetic field in the floating ball of the pole. Due to the rise or decrease of the liquid level, the magnetic field generated inside the floating ball triggers the dry reservoir in the pole to generate action. Widely used in the field of liquid level measurement, liquid level alarm and liquid level safety control.

Characteristic
Without the power consumption
Customers can customize the measurement range and connection method
Shell material engineering plastic
High cost performance, high stability, long service life

Application field
Liquid level control, liquid level measurement
Household appliance liquid level detection
Water heater, coffee machine, water dispenser, humidifier, etc.
Line container water level monitoring
