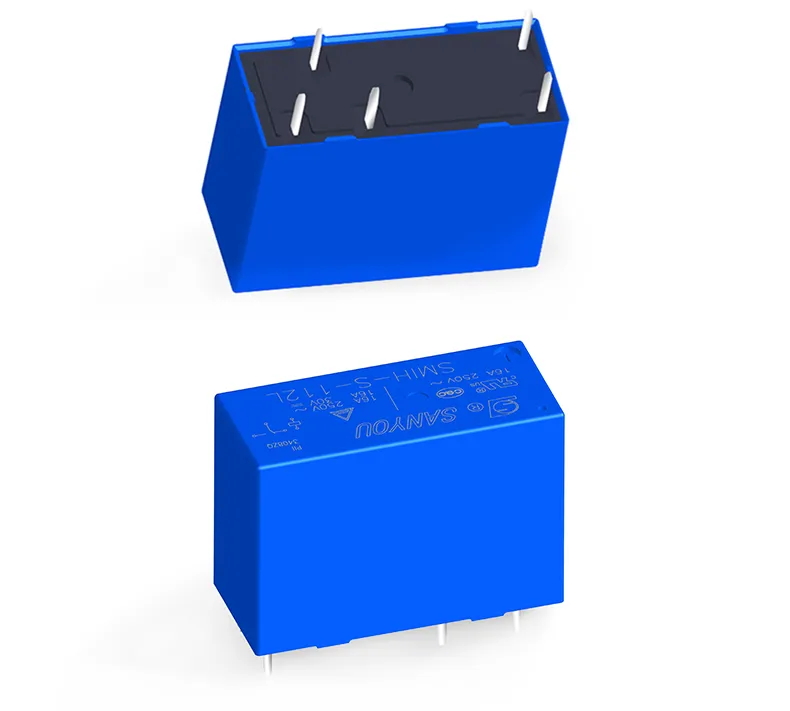

Power relay 1A high switching 17A PCB relay for washing machine

• Place of Origin:Guangdong, China
• Brand Name:Washing machine relay
• Model Number:XST-JDQ-SMIH V3.2
• Type:POWER RELAY
• Mounting Type:Surface Mount
• Output Type:DC
• Relay Type:General Purpose
• Contact Material:Silver Alloy
• Contact Resistance:100mΩ Max.(1A 6VDC)
• Pull-in Time:15msec. Max. (without diode)
• Release time:5msec. Max. (without diode)
• Insulation resistance:1,000MΩ Min.(DC500V)
• Ambient temperature:-40℃~+105℃(Non-condensing)

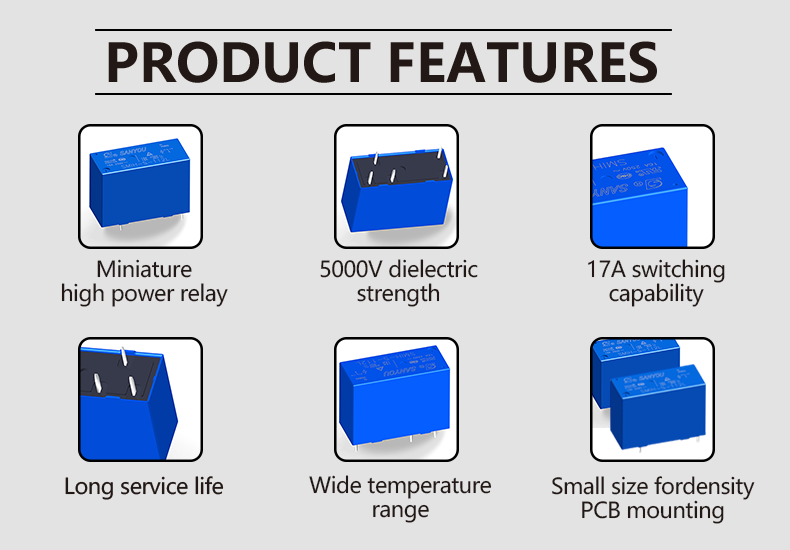

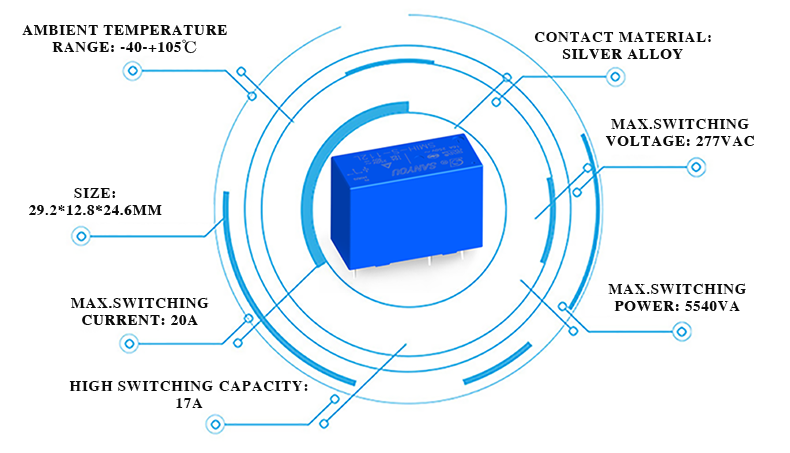

XST-JDQ-SMIH V3.2 is a small size fordensity PCB mounting, with 17A high switching capability. Its dielectric strength is 5000V.It hasUL,C-UL,TUV,CQC,VDE and other certifications.It has the characteristics of long service life, strong impact resistance and wide temperature range, etc.
