One-board computer 2.1V-5.5V single-chip microcomputer for real-time industrial control

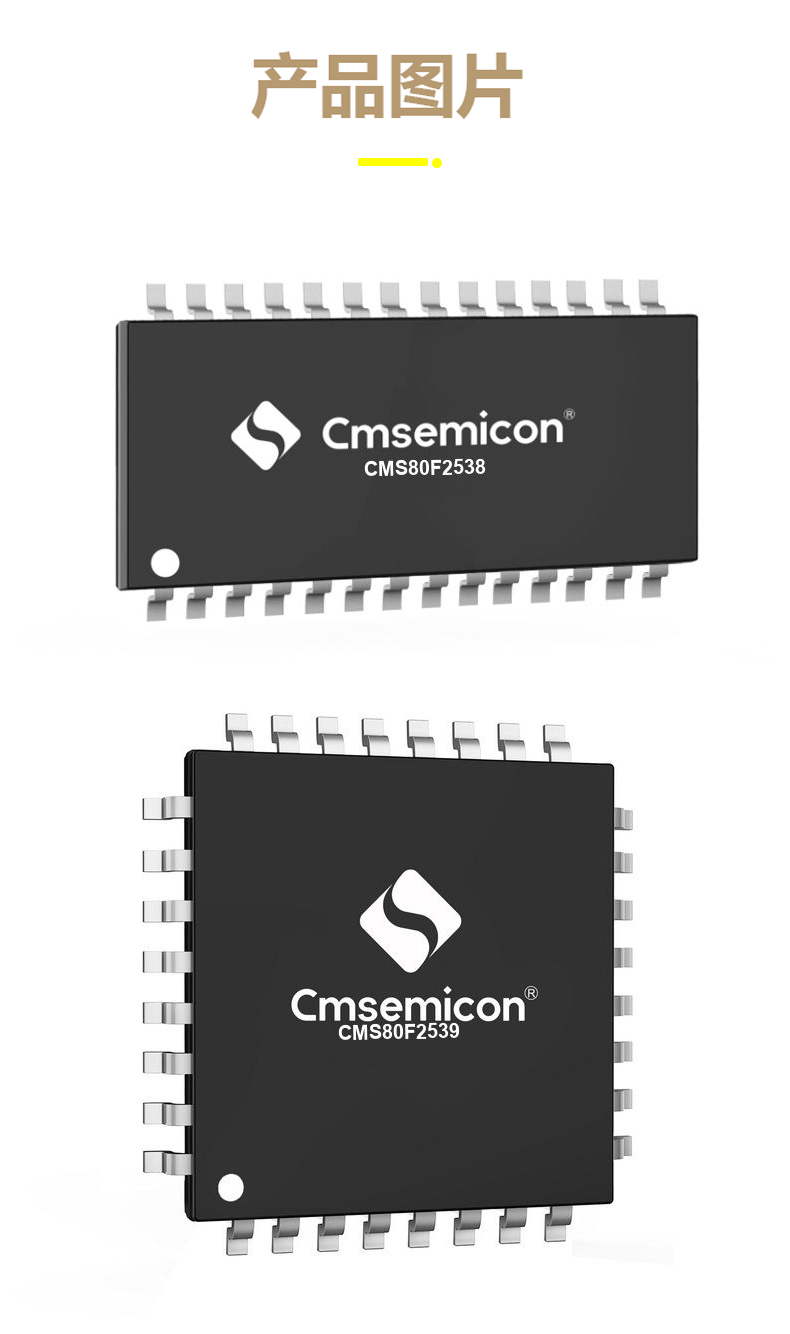

XST-MCU-CMS80F2538
minimum order
1 piece
Quantity
- Model Number:XST-MCU-CMS80F2538
- Type:microcontroller
- Place of Origin:Guangdong, China
- Brand Name:xunster
- D/C:20222538
- Brand:microcontroller
- working voltage:5.5V
- Normal mode:7.0mA
- IDL mode:5.5mA
- APROM:32/31/30/28 KB
- BOOT:0/1/2/4KB
- DATA FLASH:1KB
- RAM:256B
- WDT:1
- BUZZER:1
- SPI:1

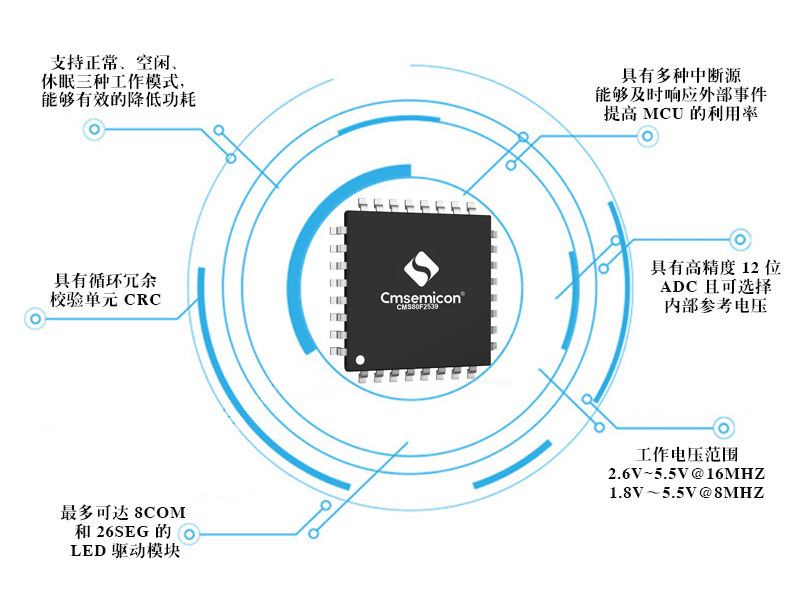

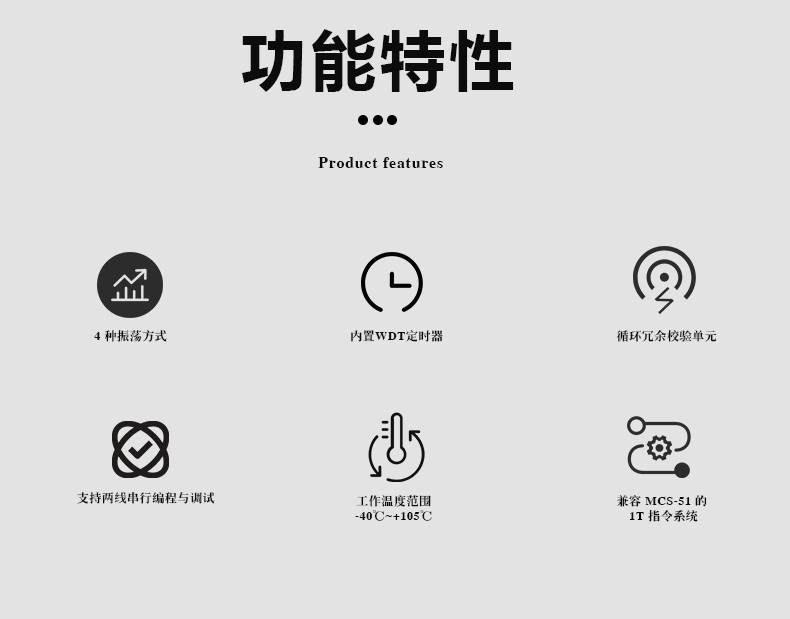

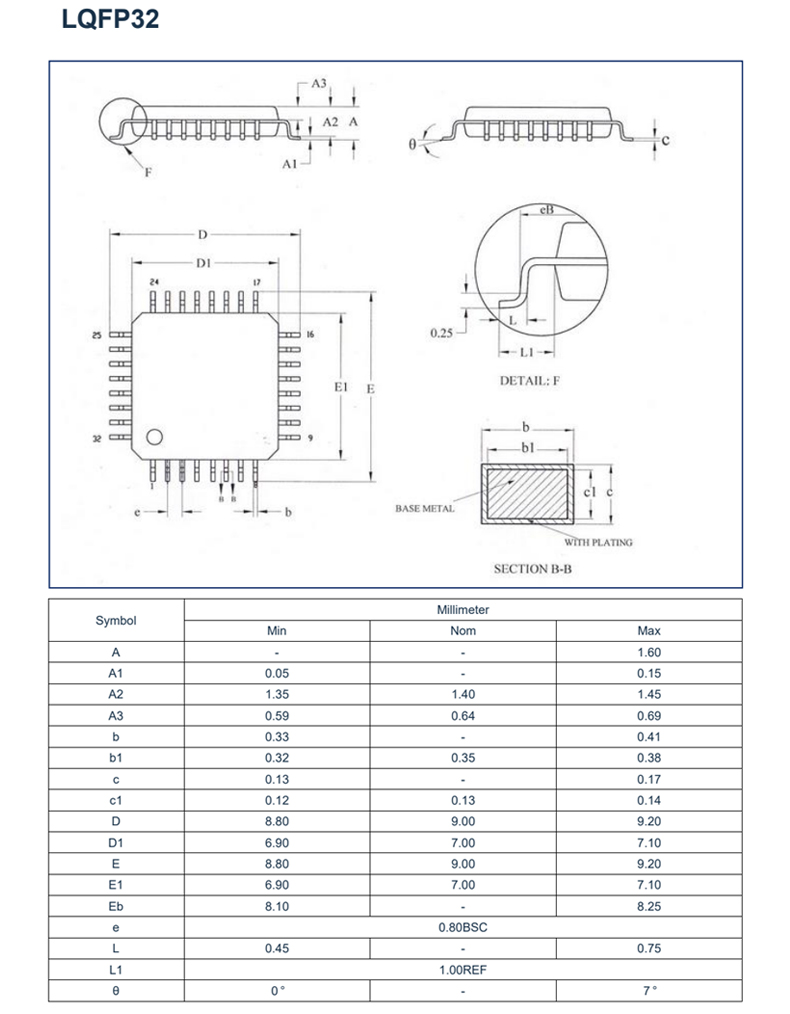

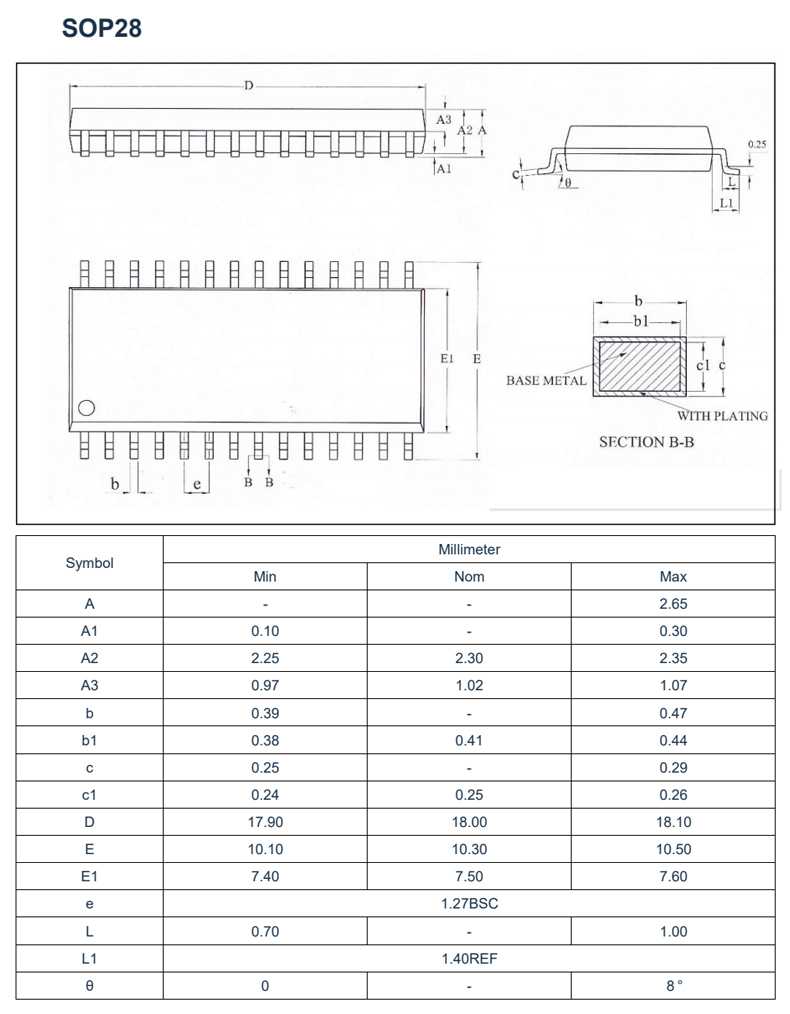

XST-MCU-CMS80F253x Series MCU is an enhanced 1T 8051 Flash MCU, which can support 48MHz peripheral operation, 24MHz kernel operation, 2.1V-5.5V operating voltage, up to 30 GPIOs, and has built-in LED driver modules. It provides 6 channels of complementary PWM output with dead zone control, up to 30 channels of 12-bit ADC, 2 UART, UART1 can arbitrarily map I/O ports, 1 SPI, 1 I2C, Industrial standard design.
| Symbol | parameter | Test Conditions | Minimum | typical | Maximum | Company |
| VDD | working voltage | FSYS=48MHz, machine cycle=2T FSYS=8MHz~24MHz, Machine Cycle=1T | 2.1 | - | 5.5 | V |
| Idd | Normal mode | VDD=5V, FSYS=48MHz, all peripherals off Machine cycle = 2T | - | 7.0 | - | mA |
| VDD=3V, FSYS=48MHz, all peripherals off Machine cycle = 2T" | - | 7.0 | - | mA | ||
| VDD=5V, FSYS=24MHz, all peripherals off Machine cycle = 1T | - | 5.0 | - | mA | ||
| VDD=3V, FSYS=24MHz, all peripherals off Machine cycle = 1T | - | 5.0 | - | mA | ||
| VDD=5V,FSYS=16MHz,all peripherals off Machine cycle=1T | - | 4.0 | - | mA | ||
| VDD=3V,FSYS=16MHz,all peripherals off Machine cycle=1T | - | 4.0 | - | mA | ||
| VDD=5V,FSYS=8MHz,all peripherals off Machine cycle=1T | - | 3.0 | - | mA | ||
| VDD=3V,FSYS=8MHz,all peripherals off Machine cycle=1T | - | 3.0 | - | mA | ||
| VDD=5V,FSYS=32.7678KHz,all peripherals off Machine cycle=1T | - | 0.26 | - | mA | ||
| VDD=3V,FSYS=32.7678KHz,all peripherals off Machine cycle=1T | - | 0.23 | - | mA | ||
| IDL mode | VDD=5V,FSYS=48MHz,All peripherals off | - | 5.5 | - | mA | |
| VDD=3V,FSYS=48MHz,All peripherals off | - | 5.5 | - | mA | ||
| VDD=5V,FSYS=24MHz,All peripherals off | - | 3.5 | - | mA | ||
| VDD=3V,FSYS=24MHz,All peripherals off | - | 3.5 | - | mA | ||
| VDD=5V,FSYS=16MHz,All peripherals off | - | 2.5 | - | mA | ||
| VDD=3V,FSYS=16MHz,All peripherals off | - | 2.5 | - | mA |
