Normally Open Magnetic Reed Switch Proximity Switch Proximity Sensor Magnetic Contact Switch

• Model Number:XST-JJ-SP111
• Type:Magnetic Proximity Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:industrial control
• Description:Magnetic Reed Switch
• Max.switching power:10W
• Min.breakdown voltage:180V DC
• Max.load current:1.5A
• Max.contact impedance:100mΩ

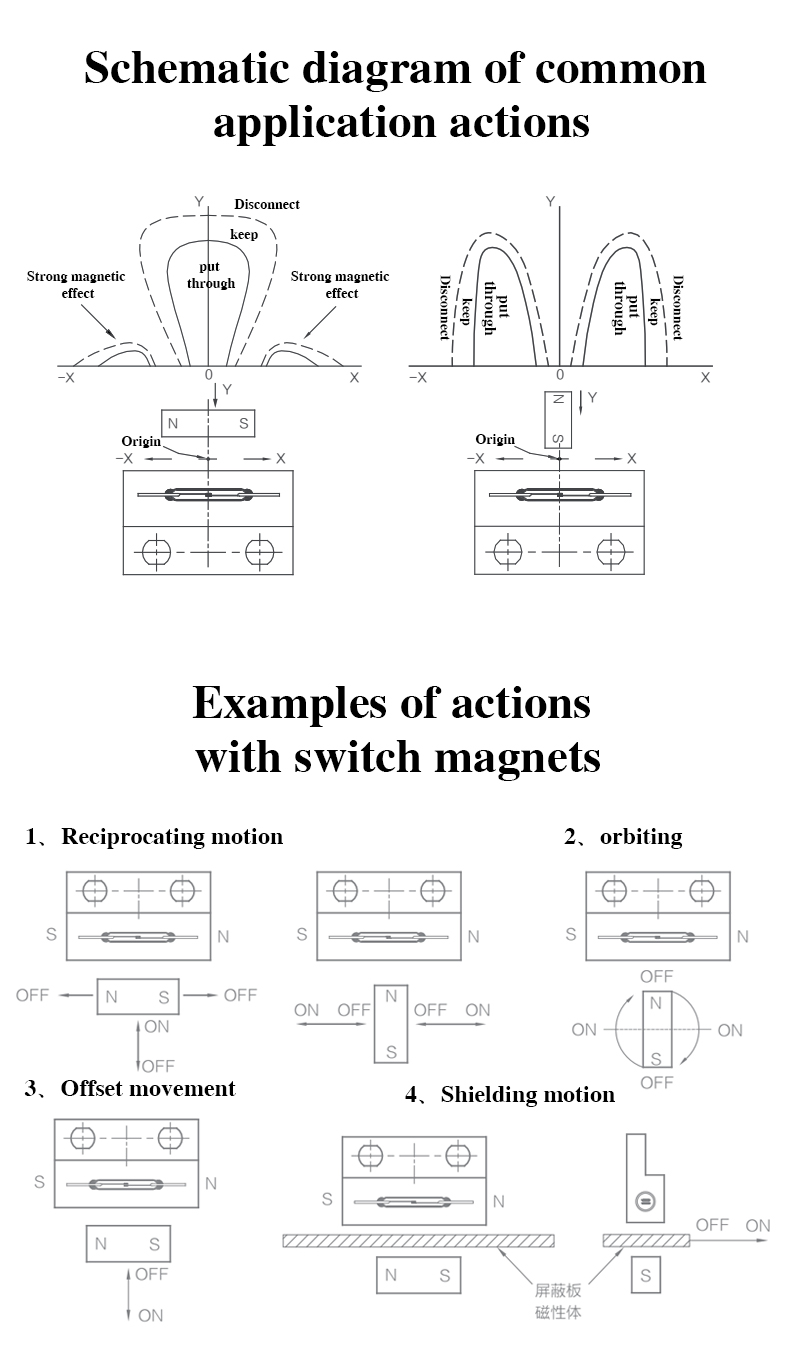

 The working principle of the magnetic proximity switch is to change the position and polarity of the trigger to make the sensor A magnetic field is generated around the sensor so that the contact of the sensor operates. Adopt sealing design, with a service life of at least 1 million Second, it is easy to install and can be adjusted according to different application environments of customers. CharacteristicNo need to stay power, good gas tightness, long service lifeMultiple magnetic field sensitivity range, which can be equipped with a magnet triggerHigh stability, high reliability, high consistencyCustomers can customize the color of the shell, the direction of the line, the wire, the terminal, etc. Application fieldAutomobile, industrial control, counter counterFitness EquipmentSecurity anti -theftSmart home appliances, smart home, smart toys * Product specifications can be customized according to customer requirements. switch type123Max.switching power10W10W5WMax.switching voltage(DC)180V200V175VMax.switching voltage(AC)130V265V125VMax.switching current(DC)250mA500mA400mAMax.switching current(AC)250mA500mA280mAMin.breakdown voltage180V DC450V DC200V DCMax.load current1.5A1.5A0.5AMax.contact impedance100mΩ100mΩ120mΩMin.insulation resistance106MΩ106MΩ106MΩOperating temperature range-40℃~+80℃-20℃~+80℃-40℃~+80℃Note: the above parameters can be formulated according to the specific needs of customers
