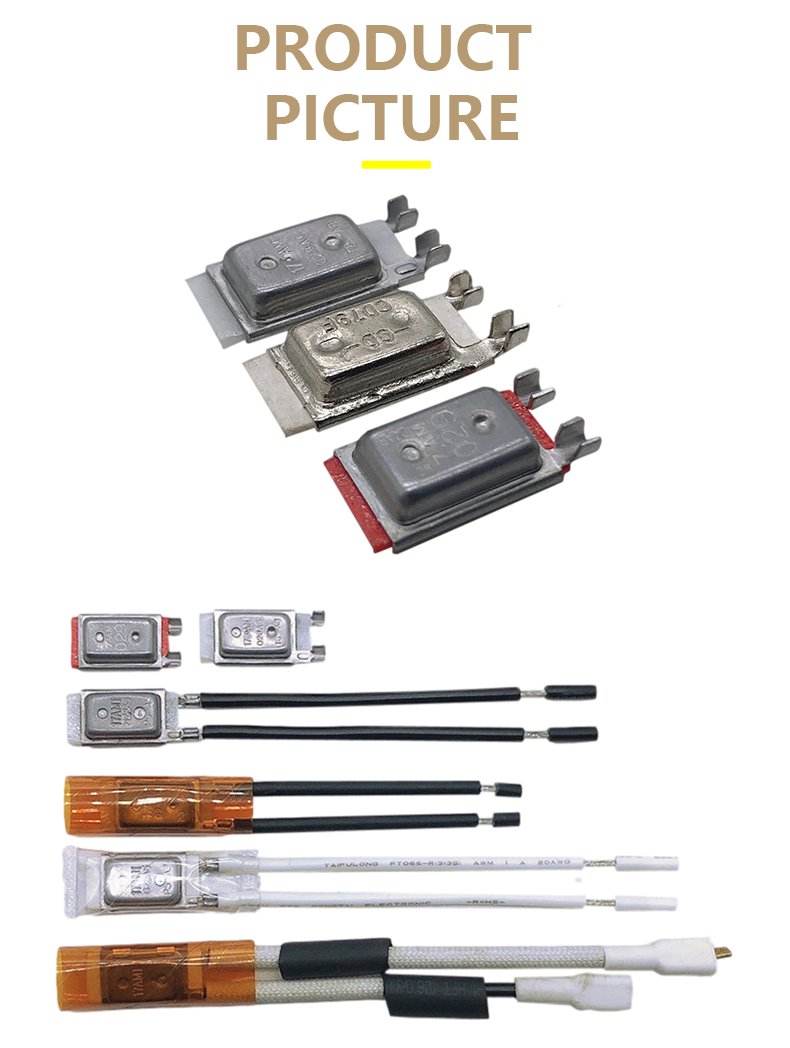

Normally closed 250V 10A HKW motor overload protector thermal protector for new energy battery
XST-HKW
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:XST-HKW
- Type:Other
- Application:new energy battery
- Brand:HKW motor overload protector
- Operating Temperature:20℃~150℃
- Current Rating (Amps):10A
- Voltage Rating - AC:250V
- Voltage:250V
- Series project:BL-WK-HKW

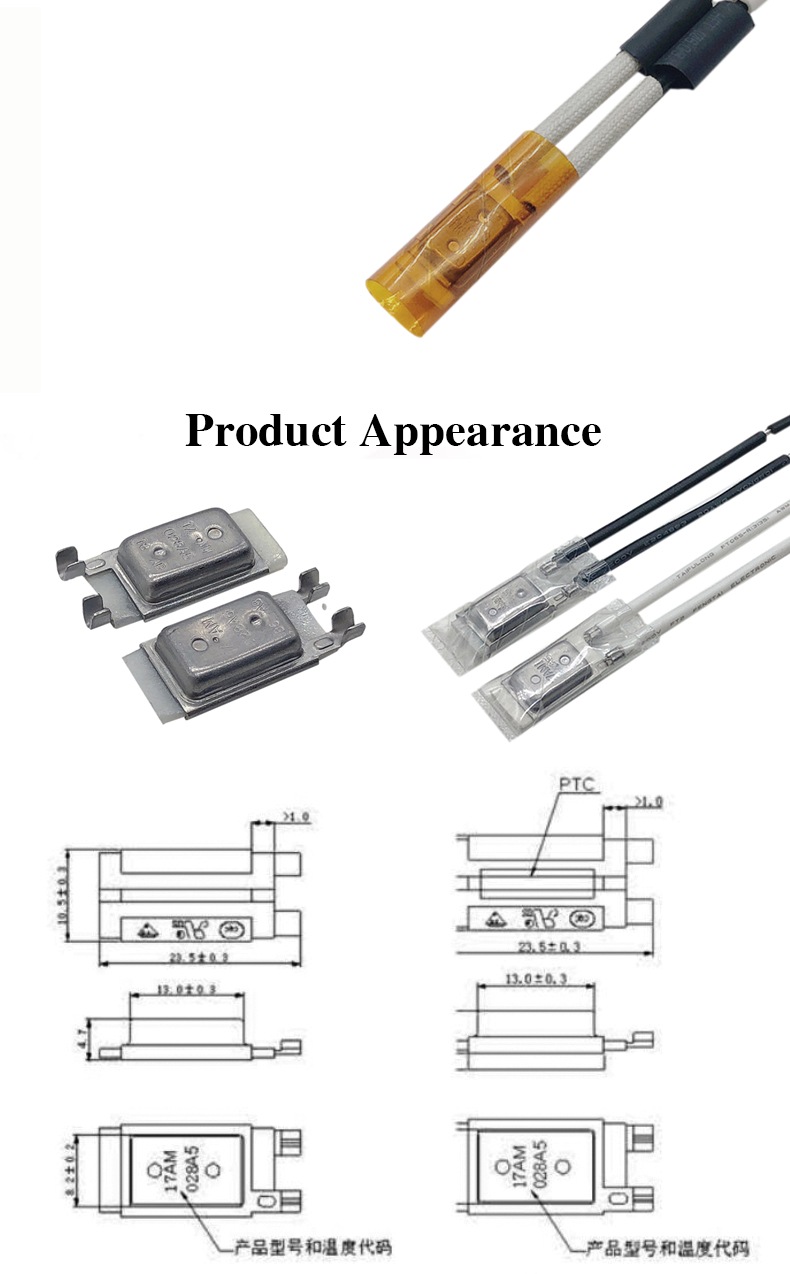

- Plastic shell:23.5*10.4*4.7MM
- Contact type:Normally closed/opened
- Operating temp:50-180℃,5℃ per stepper step
- Tolerance:±5℃
- Contact resistance:≤50mΩ
- Reset temp:action temp down 15-45℃
- Electrical strength:AC2500V/m in/min No breakdown
- Cycle lifetime:≥10000 times
XST-WK-HkW thermal protector use unique bimetal and don’t need more auxiliary parts. Using bimetal Self-sensing temperature and Current thermal effect to change the bimetal’s shape to control the electric circuit cut off or contact on. Overheat and overload double protection.
| Series project | XST-WK-HKW |
| Plastic shell | 23.5*10.4*4.7MM |
| Contact type | Normally closed/opened |
| Operating temp | 50-180℃,5℃ per stepper step |
| Tolerance | ±5℃ |
| Contact resistance | ≤50mΩ |
| Reset temp | action temp down 15-45℃ |
| Electrical strength | AC2500V/m in/min No breakdown |
| Cycle lifetime | ≥10000 times |
