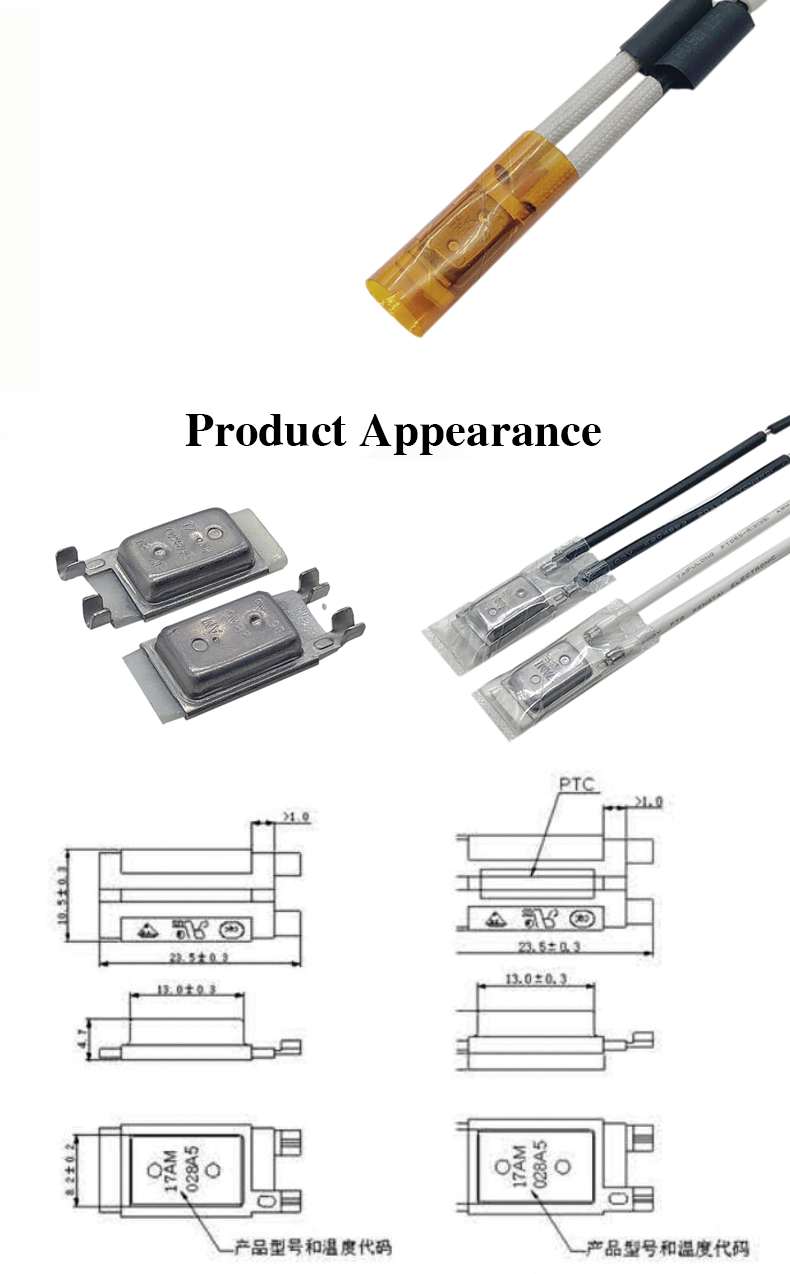

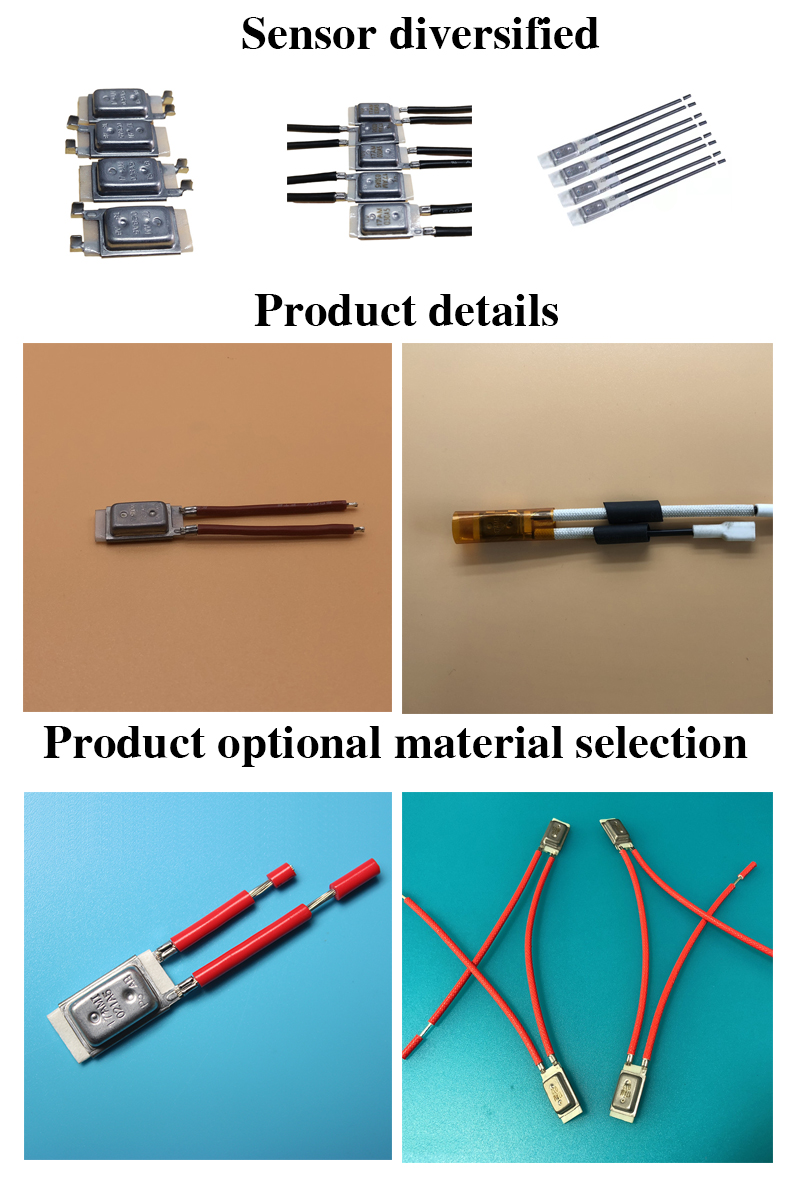

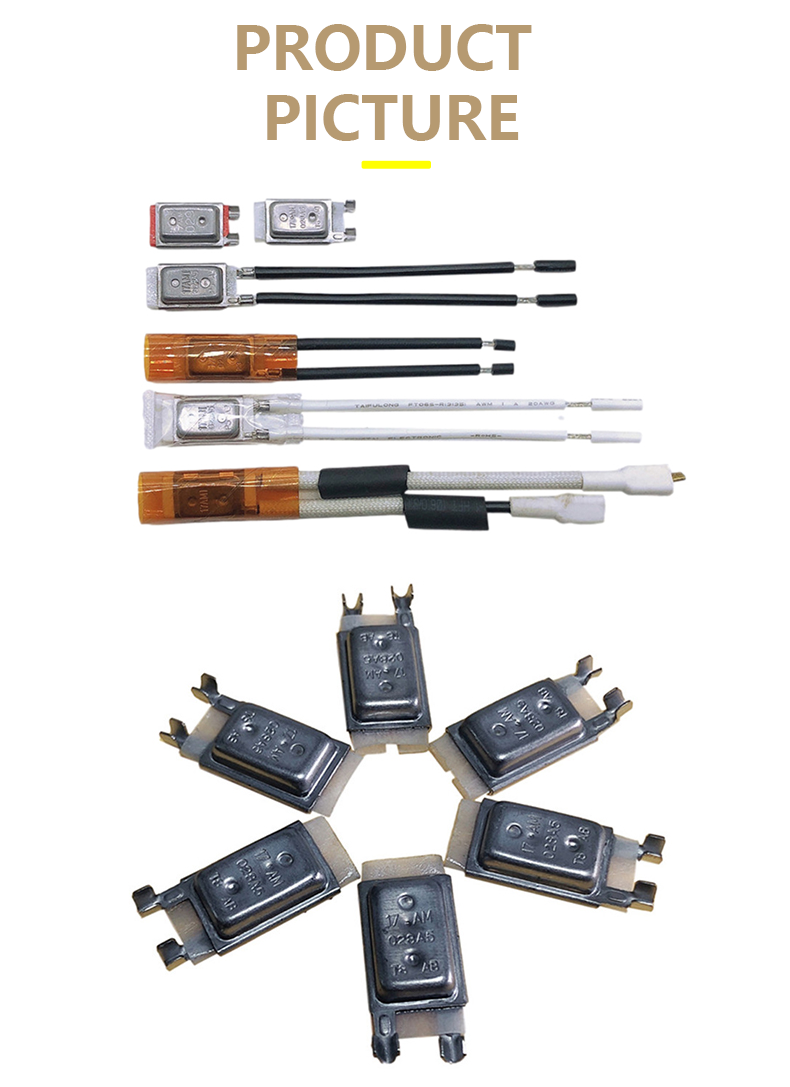

Normally closed 17AM type 250V 10A HKW motor overload protector thermal protector
XST-17AM
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:XST-17AM
- Type:Other
- Application:Automotive accessory motor
- Supplier Type:Other
- Brand:17AM Motor Thermal Protector
- Current Rating (Amps):18A 10A
- Voltage Rating - AC:125V 250V
- Series project:BL-WK-17AM
- Plastic shell:23.5*10.4*4.7MM
- Contact type:Normally closed/opened
- Operating temp:50-180℃,5℃ per stepper step
- Tolerance:±5℃
- Contact resistance:≤50mΩ
- Reset temp:action temp down 15-45℃
- Electrical strength:AC2500V/m in/min No breakdown
- Cycle lifetime:≥10000 times
BL-WK-17AM thermal protector has small dimension; insulation shell; sensitive and long life time. Its widely use in new energy battery;motor; power; ballast; transformer; integrated circuit and electrical equipment’s overheat and overload double protection.
| Series project | XST-WK-17AM |
| Plastic shell | 23.5*10.4*4.7MM |
| Contact type | Normally closed/opened |
| Operating temp | 50-180℃,5℃ per stepper step |
| Tolerance | ±5℃ |
| Contact resistance | ≤50mΩ |
| Reset temp | action temp down 15-45℃ |
| Electrical strength | AC2500V/m in/min No breakdown |
| Cycle lifetime | ≥10000 times |
