New energy vehicles vacuum pump pressure switch controller 12VDC analog voltage pressure sensor

• Model Number:XST-GM-SV- S38
• Type:Pressure Sensor
• Place of Origin:Guangdong, China
• Brand Name:xunster
• Usage:vacuum pump pressure switch controller
• Output:12V DC
• Description:Analog voltage pressure sensor

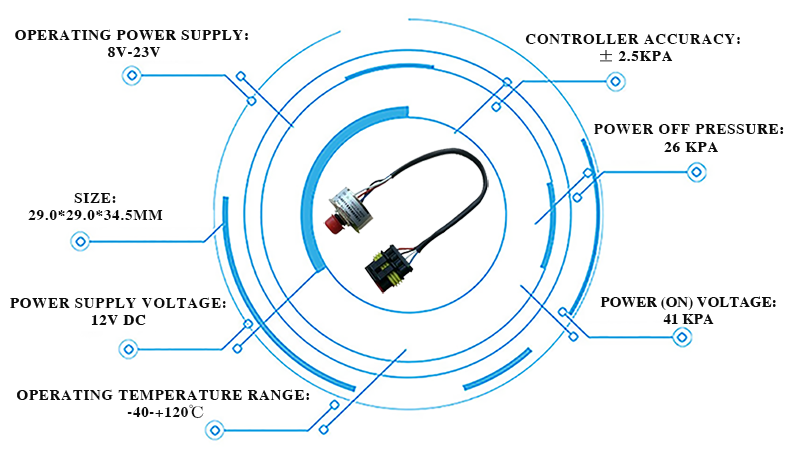

• operating power supply:8-23V
• Control the switch operating range:(OFF)26kPa,(ON)41kPa
• Alarm switch operating range:(OFF)66kPa,(ON)66kPa
• Control accuracy:±2.5kPa
• Designed life:≥1,000,000 cycles
• Circuit current bearing capacity:≤1A
• Levels of protection:IP67

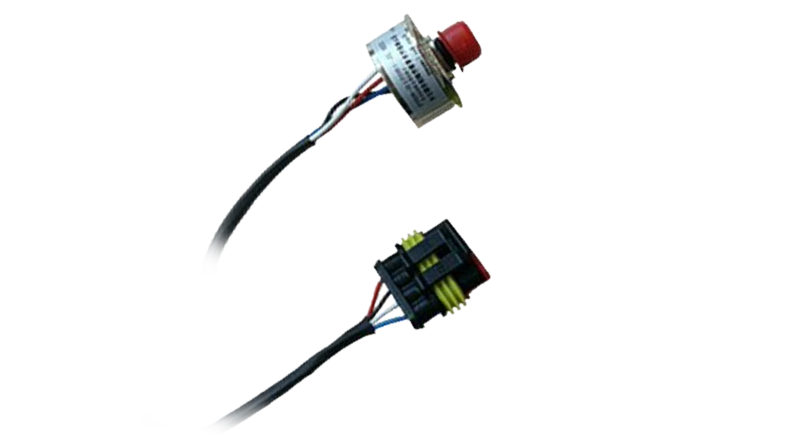

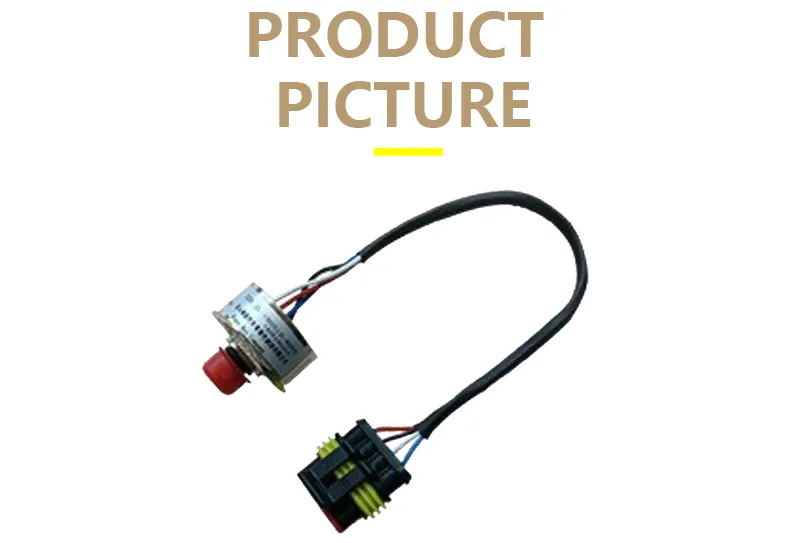

The XST-GM-The SV-S38 is developed and produced using a pressure sensor chip module and a special control signal processing integrated circuit chip, packaged in a metal case and protected by special glue.Each switch controller is subject with linear calibration and temperature compensation to ensure the accurate and stable operation of the vacuum pump without affected by the operating temperature. Standard power supply voltage is DC 12V.
