Microcontroller unit XST-IGBT-CMS6324

XST-IGBT-CMS6324
minimum order
1 piece
Quantity
Contact Now
add to cart
  • Model Number:XST-IGBT-CMS6324
  • Type:Other
  • Place of Origin:Guangdong, China
  • Brand Name:xunster
  • Package Type:Surface Mount
  • Supplier Type:Agency
  • Media Available:datasheet
  • High side absolute voltage:125V
  • High side relative voltage:VB+0.3V
  • High side output voltage:VB+0.3V
  • Maximum supply voltage:25V
  • Low side output voltage:VCC+0.3V
  • Maximum input voltage( HIN/LIN ):10V
  • Maximum of offset voltageswin:50V/ns
  • Maximum power (Note 1):0.625W
  • Junction to thermal resistance:200℃/W
  • Pin welding temperature (duration 10s):260℃

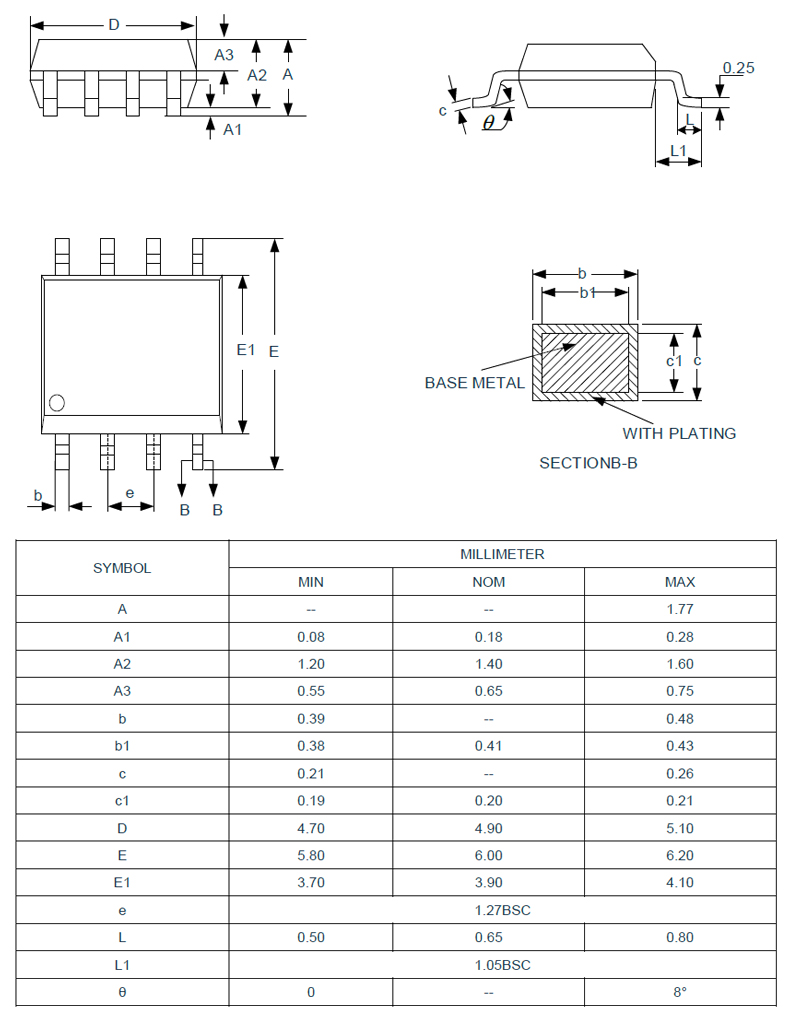

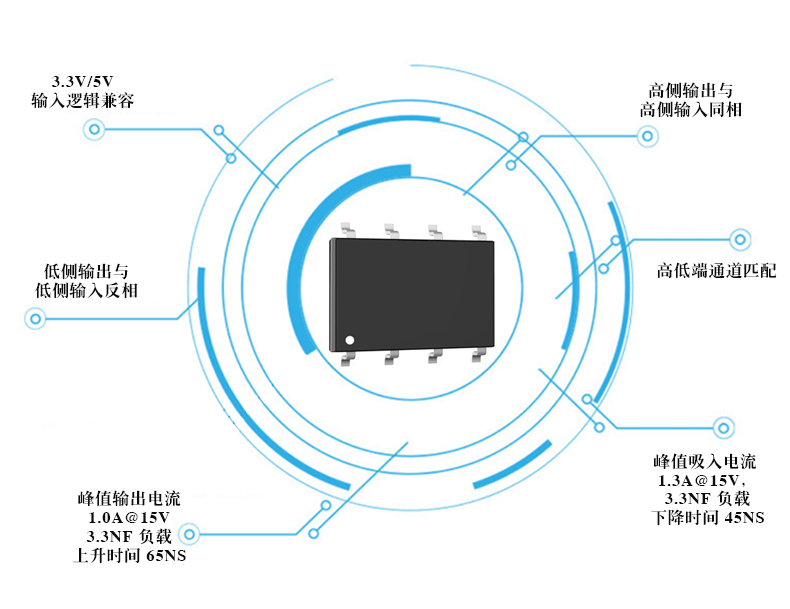

Xst-igbt-cms6324 controls the high side drive circuit output (HO) and low side drive circuit output (LO) respectively through input signals (hin and Lin). The built-in 310ns dead time is the minimum dead time. When the dead time of the MCU output signal is greater than the built-in dead time, the actual dead time is the dead time set by the MCU. Built in VCC and VBS undervoltage (UVLO) protection function can prevent the system from opening the external power tube at low driving voltage.





(TA = 25 ℃, VM = 12V, nu = NV = NW = GND, all pins take GND as the reference point, unless otherwise specified)
parameterSymbolTest conditionsminimum valueTypical valueMaximumCompany
Power supply current parameters
VCC Quiescent currentICCQVHIN=0V VLIN=5V-172-uA
VBS Quiescent currentIBSQVHIN=0-0-uA
VCC Dynamic currentICCDfLIN=20kHz-288-uA
VBS Dynamic currentIBSDfHIN=20kHz-126-uA
VB Floating power leakage currentILKVB=VS=100V--0.1uA
Power supply voltage parameters
VCC Undervoltage high level potentialVCCHY+ -8.5-V
VCC Undervoltage high level potentialVCCHY- -7.9-V
VCC Undervoltage hysteresis levelVCCHY -0.6-V
VS Static negative pressureVSQNVBS=15V--5-V
Time parameter
When the rising edge of the output is transmittedtonNo Load-250-ns
Output falling edge transmission timetoffNo Load-250-ns
Output rise timetrCL=3.3nF-65-ns
Output falling timetfCL=3.3nF-45-ns
Dead TimeDTNo Load-310-ns
High and low side matching timeMTΔTON & ΔTOFF--50ns
