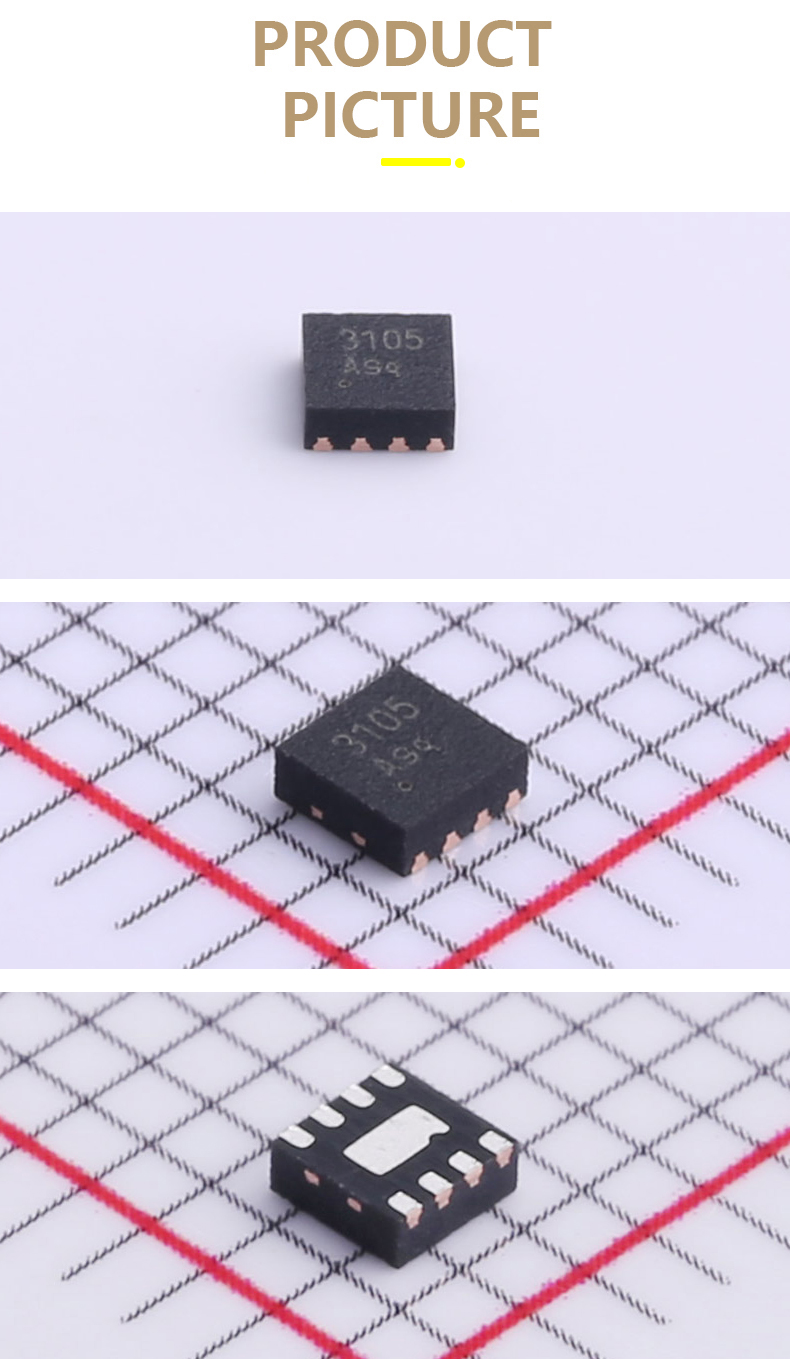

Micro controller XST-DYGL-SL3105A battery management power management IC chip
XST-DYGL-SL3105A
minimum order
1 piece
Quantity
- Model Number:XST-DYGL-SL3105A
- Type:microcontroller
- Place of Origin:Guangdong, China
- Brand Name:xunster
- D/C:2022SL3105A

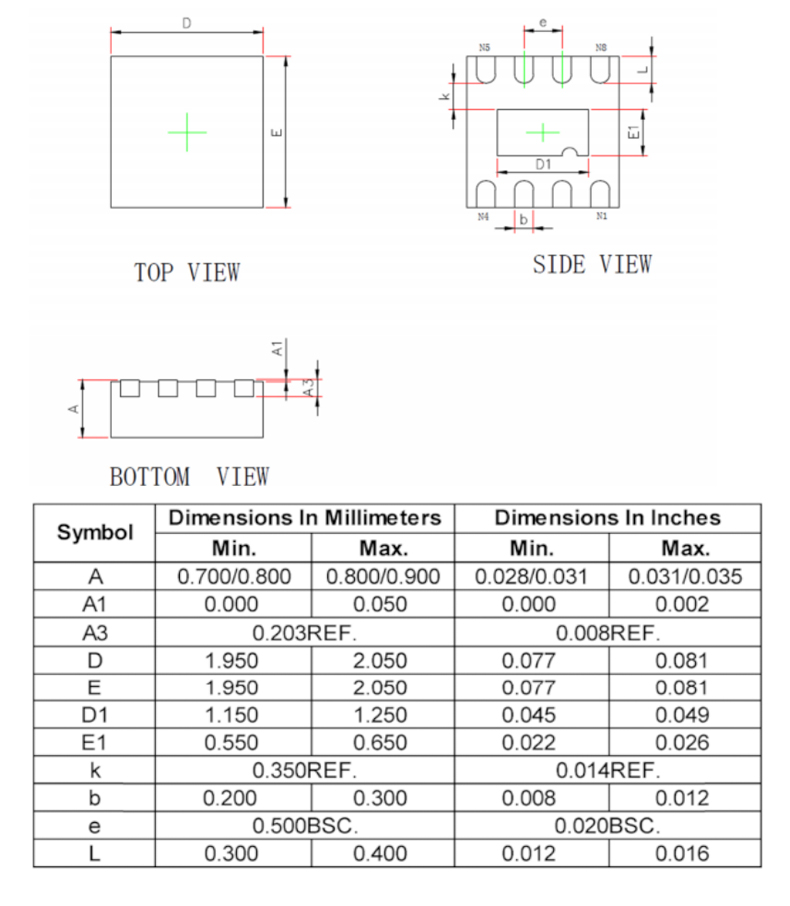

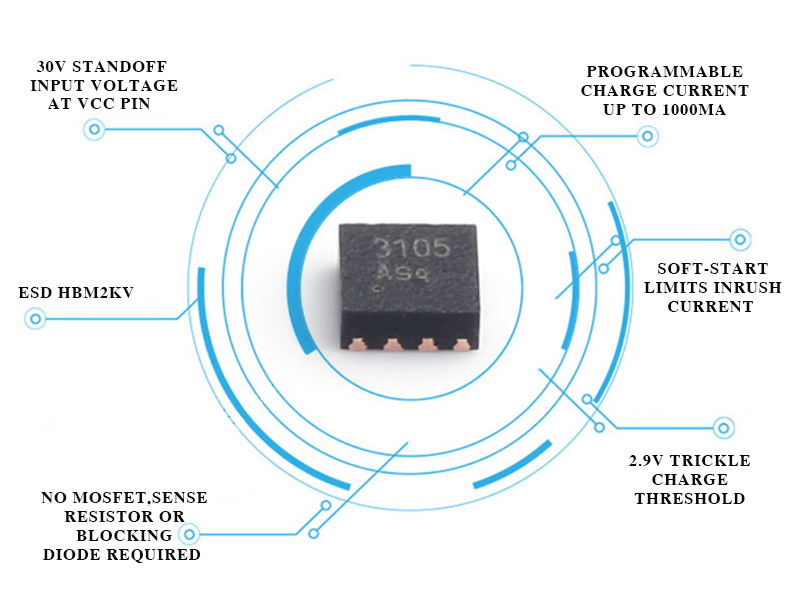

- Input Supply Voltage VCC:VSS-0.3~VSS+30V
- PROG pin Voltage,CE pin Voltage Ven:VSS-0.3~10V
- BAT pin Voage Vbat:VSS-0.3~11V
- CHRG,STDBY pin Voltage Vchrg:VSS-0.3~10V
- BAT pin Current bat:1.4A
- PROG pin Curent lprog:1.4mA
- Operating Ambient Temperature:-40to 85℃
- Maximum Junction Temperature:150℃
- Storage Temperature:-55 to 150℃
- Lead Temperature(Soldering,10 sec):260℃
The XST-DYGL-SL3105A Series is a complete constant current & constant voltage linear charger for single cell lithium-ion batteries.Its DFN package and low external component counts make the XST-DYGL-SL3105A Series ideally suited for portable applications.Furthemore,the XST-DYGL-SL3105A Series is specifically designed to work within USB power specifications.
| Input Voltage Range | 4.25 | 6 | V | |||
| Input supply current | Icc | Charge mode,RPROG=10K | 350 | 2000 | uA | |
| Standby mode,Vbat=4.3V | 150 | 500 | uA | |||
| Shutdown mode(Vcc | 50 | 200 | uA | |||
| BAT pin Current | Ibat | RPROG =200k,Current mode | 4 | 5 | 6 | mA |
| RPROG =100k,Current mode | 8 | 9.5 | 11 | mA | ||
| RPROG =10k,Current mode | 85 | 95 | 105 | mA | ||
| RPROG =2k,Current mode | 425 | 475 | 525 | mA | ||
| RPROG =1k,Current mode | 850 | 950 | 1050 | mA | ||
| Standby mode,Vbat=4.3V | 0 | -2.5 | -6 | uA | ||
| Shutdown mode | 1 | 2.5 | uV | |||
| Sleep mode,Vcc=0V | 0.3 | 2.5 | uV | |||
| Regulated Charge Voltage(SL3105A/AL/AN) | Vfloat | 0℃ | 4.158 | 4.2 | 4.242 | V |
| Regulated Charge Voltage(SL3105B/BL/BN) | 4.257 | 4.3 | 4.343 | V | ||
| Regulated Charge Voltage(SL3105C/CL/CN) | 4.307 | 4.35 | 4.394 | V | ||
| Regulated Charge Voltage(SL3105D/DL/DN) | 4.356 | 4.4 | 4.444 | V | ||
| PROG pin Voltage | Vprog | RpRoG =1k,Current mode | 0.93 | 1 | 1.07 | V |
| Trickle charge current | Itrikl | Vbat | 85 | 95 | 105 | mA |
| Trickle charge Threshold Voltage | VtrikL | RpRoG=10K,Vbat Rising | 2.7 | 2.9 | 3.1 | V |
| Trickle voltage hysteresis voltage | Vtrhys | RPROG=10K | 0.08 | 0.12 | 0.16 | V |
| Recharge Battery threshold Voltage | Vrecg | VFLOAT-VRECHRG | 105 | 150 | mV | |
| Under voltage Lockout Threshold | VuVLo | BAT=3.5V,IN Rising | 3.05 | 3.4 | 3.75 | V |
| VCC under voltage lockout hysteresis | Vuvhys | 600 | mV | |||
| CHRG pin Output low voltage | Vchrg | Ichrg=5mA | 1.2 | 2 | V | |
| STDBY pin Output low voltage | Vstdby | Istdby=5mA | 1.2 | 2 | V | |
| Enable Threshold | VCC=4.25V~6.5V | 0.3 | 1 | 1.5 | V | |
| Enable Leakage Current | -0.1 | 0.1 | uA | |||
| Thermal Shutdown Temperature | TSHDN | 140 | ℃ | |||
| Thermal Shutdown Hysteresis | TSHDN | 20 | ℃ |
