MEMS microphone 2662-2718-DT1Z1 digital microphone semiconductor
XST-GM-SL-2662-2718-DT1Z1
minimum order
1 piece
Quantity
- Model Number:XST-GM-SL-2662-2718-DT1Z1
- Type:Microphone
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Color:Black
- Sensitivity:-25dBFS
- Signal to noise ratio:62dB(A)
- Current consumption:750μA
- Total harmonic distortion:0.1%
- Acoustic Overload Point:120dBSPL
- Power supply rejection:-90dBFS(A)

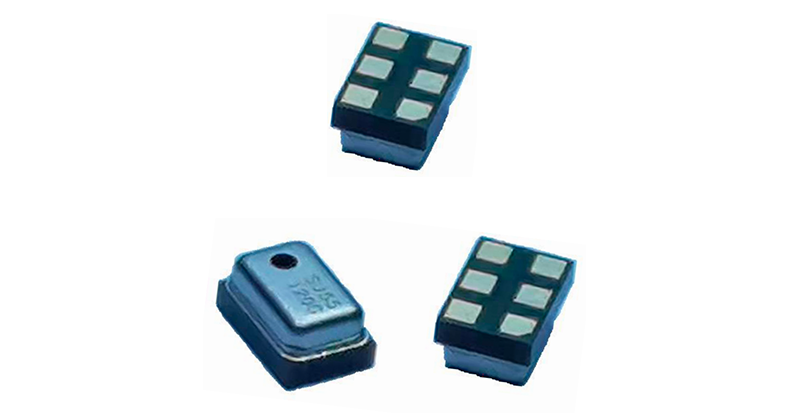

XST-GM-ML-2662-2718-DT1Z1 is high-performance top-port digital silicon microphone that receives the sound signal from the topside hole on lid.Provides a series of packaged MEMS silicon microphones with compact size to achieve high performance such as high SNR, high sensitivity, excellent reliability and broad frequency response.
| Parameter | Symbol | Condition | Min. | Typ. | Max | Unit |
| Sensitivity | Sens | 94dB SPL @1kHz | -27 | -26 | -25 | dBFS |
| Signal to noise ratio | SNR | 94dB SPL @1kHz | 61 | dB(A) | ||
| Current consumption | Idd | Vdd=1.8V, fCLOCK=768KHz | 300 | 350 | µA | |
| Total harmonic distortion | THD | 94dB SPL @1kHz | 0.1 | % | ||
| Acoustic Overload Point | AOP | 10% THD @ 1kHz | 120 | dBSPL | ||
| Power supply rejection | PSR | 100mVpp square wave @ 217 Hz, A-weighted | -90 | dBFS(A) |
