MEMS mic 2663-3526-DB1H1 SMD digital microphone
XST-GM-ML-2663-3526-DB1H1
minimum order
1 piece
Quantity
- Model Number:XST-GM-ML-2663-3526-DB1H1
- Type:Microphone
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Sensitivity:-25dBFS
- Signal to noise ratio:63dB(A)
- Current consumption:850μA
- Total harmonic distortion:0.2%
- Acoustic Overload Point:120dBSPL
- Power supply rejection:-80dBFS(A)

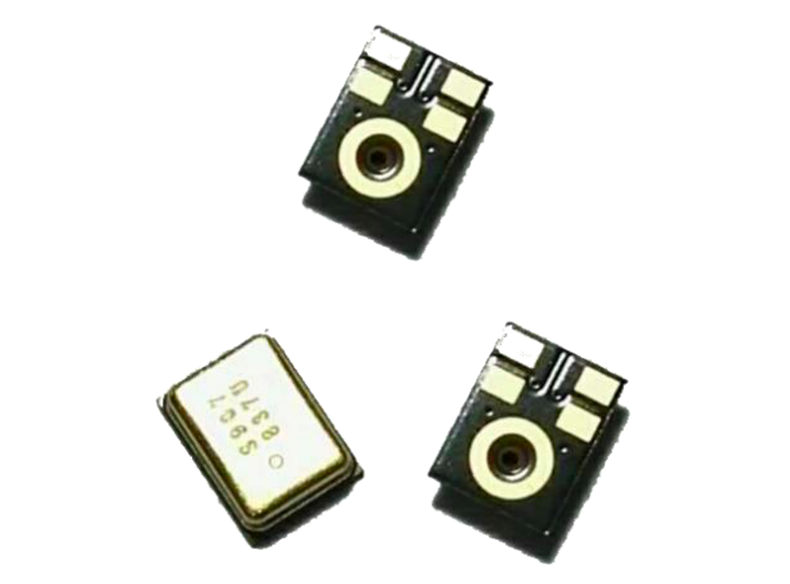

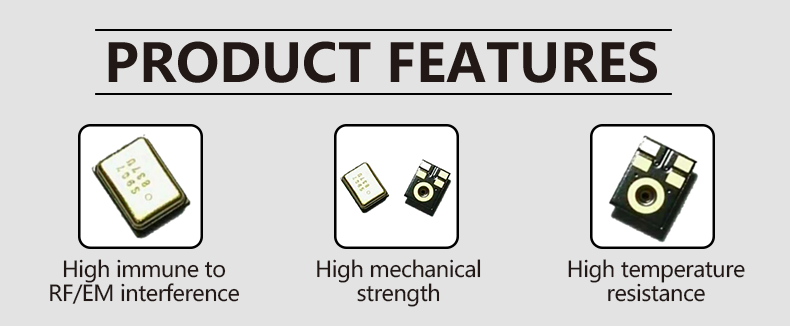

XST-GM-ML-2663-3526-DB1H1 is high-performance bottom-port digital silicon microphone that receives the sound signal from the hole on Bottom PCB.Provides a series of packaged MEMS silicon microphones with compact size to achieve high performance such as high SNR, high sensitivity,excellent reliability and broad frequency response.

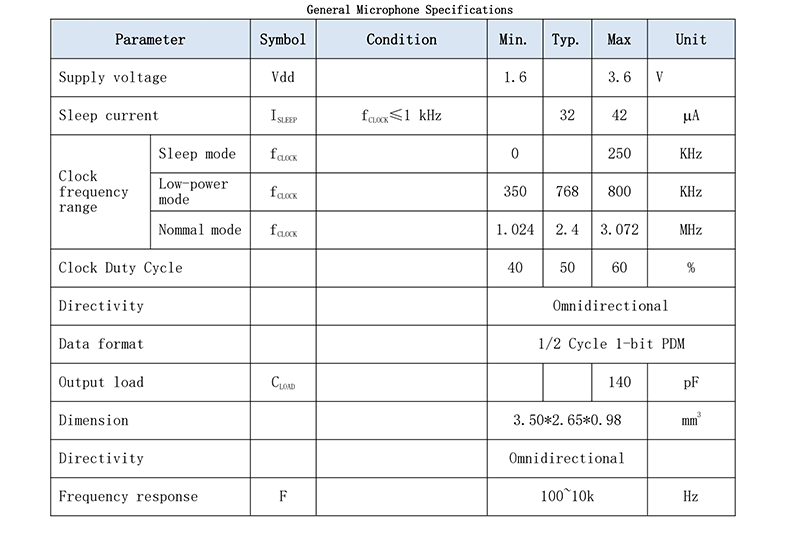

| Parameter | Symbol | Condition | Min. | Typ. | Max | Unit |
| Sensitivity | Sens | 94dB SPL @1kHz | -27 | -26 | -25 | dBFS |
| Signal to noise ratio | SNR | 94dB SPL @1kHz | 62 | dB(A) | ||
| Current consumption | Idd | Vdd=1.8V, fCLOCK=768KHz | 380 | µA | ||
| Total harmonic distortion | THD | 94dB SPL @1kHz | 0.2 | % | ||
| Acoustic Overload Point | AOP | 10% THD @ 1kHz | 120 | dBSPL | ||
| Power supply rejection | PSR | 100mVpp square wave @ 217 Hz, A-weighted | -80 | dBFS(A) |
