MCU semiconductor OTP motor drive chip microcontroller single-chip microcomputer
XST-MCU-SC8P1762E
minimum order
1 piece
Quantity
- Model Number:XST-MCU-SC8P1762E
- Type:microcontroller
- Place of Origin:Guangdong, China
- Brand Name:xunster
- D/C:20221762
- Brand:microcontroller
- working voltage:5.5V
- Working Current:2mA
- Static Current:10A
- Low level input voltage:0.3VDD V
- High level input voltage:0.7VDD V
- Low level output voltage:0.1VDD V
- AD Port Input Voltage:VDD V
- AD Module operating voltage:5.5 V
- Internal Fixed Reference Voltage:1.212 V
- PMOS Bulk diode conductivity:0.79 V

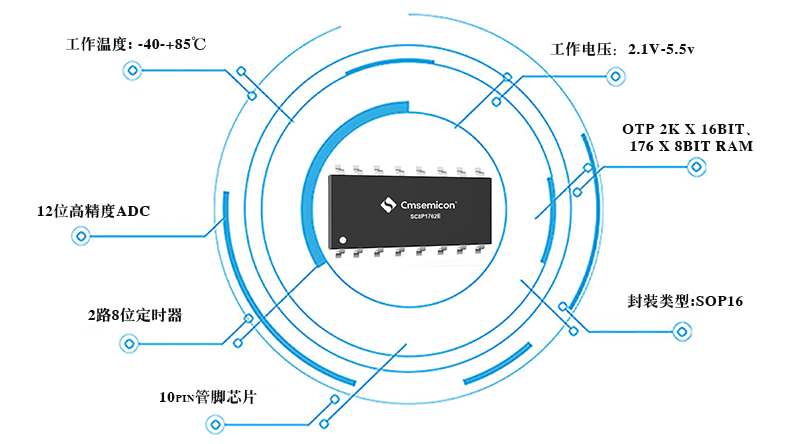

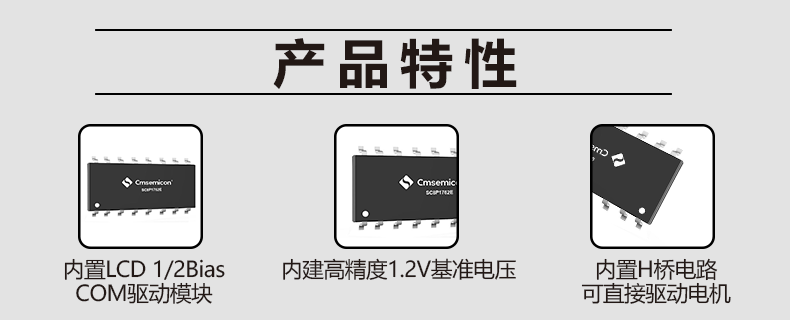

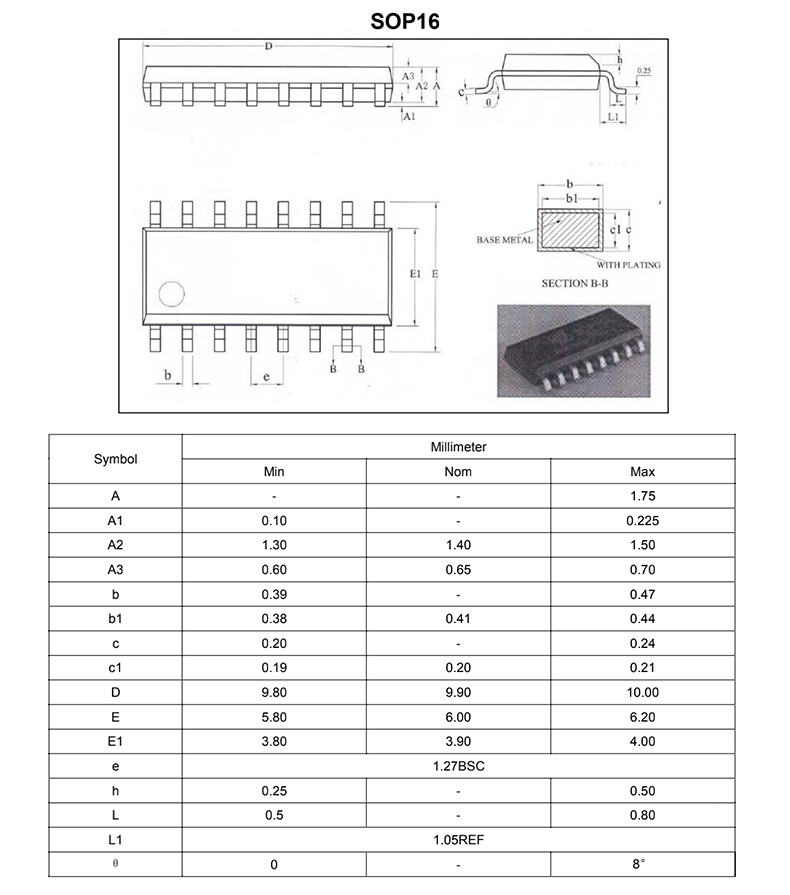

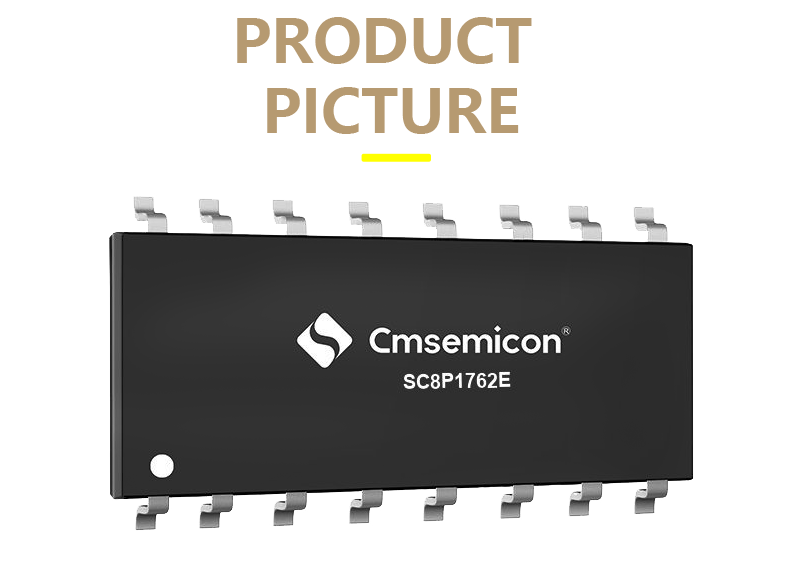

XST-MCU-SC8P1762E series MCU is a semiconductor OTP motor drive chip, with an operating voltage of 2.1V~5.5V, integrated high-precision 12-bit ADC, built-in H-bridge drive motor, built-in two PWM and LCD modules, built-in high-precision 1.2V reference voltage, -40°C- 85°C, SOP16 package is provided.
| Symbol | parameter | Test Conditions | Minimum | typical | Maximum | Company | |
| VDD | condition | ||||||
| VDD | working voltage | - | 8MHz | 3.0 | - | 5.5 | V |
| - | 4MHz | 2.1 | - | 5.5 | V | ||
| Idd | Working Current | 5V | ADC Enabling | - | 2 | - | mA |
| 3V | ADC Enabling | - | 1 | - | mA | ||
| Istb | Static Current | 5V | —— | - | 0.1 | 10 | A |
| 3V | —— | - | 0.1 | 10 | A | ||
| Vil | Low level input voltage | - | —— | - | - | 0.3VDD | V |
| Vih | High level input voltage | - | —— | 0.7VDD | - | - | V |
| Voh | High level input voltage | - | No Load | 0.9VDD | - | - | V |
| Vol | Low level output voltage | - | No Load | - | - | 0.1VDD | V |
| Vadi | AD Port Input Voltage | - | —— | 0 | - | VDD | V |
| Vad | AD Module operating voltage | - | —— | 2.7 | - | 5.5 | V |
| Ead | AD Conversion Error | - | —— | - | ±2 | - | - |
| Vref | Internal Fixed Reference Voltage | - | —— | 1.188 | 1.2 | 1.212 | V |
| Rph | Pull-up resistance value | 5V | —— | - | 32 | - | K |
| 3V | —— | - | 60 | - | K | ||
| Rpl | Dropdown Resistance Value | 5V | —— | - | 34 | - | K |
| 3V | —— | - | 62 | - | K | ||
| Iol | Output irrigation current | 5V | Vol=0.3VDD | - | 35 | - | mA |
| 3V | Vol=0.3VDD | - | 15 | -, | mA | ||
| Ioh | Output Pull Current | 5V | Voh=0.7VDD | - | 17 | - | mA |
| 3V | Voh=0.7VDD | - | 6 | - | mA | ||
| Vpd | PMOS Bulk diode conductivity | I=400mA,VCC= 3V,VDD=PA5=P A6=0V | 0.79 | V | |||
| Vnd | NMOS Bulk diode conductivity | I=-400mA, VCC=VDD=3V, PA5=PA6=0V | 0.79 | V | |||
| TSD | Thermal shut-off temperature point | 150 | ℃ | ||||
| Ron | Internal resistance of power tube conduction | IO=±200mA VDD=6.5V TA=25C | 0.31 | Ω | |||
| PVDD | PVDD Power Voltage | 2 | -- | 9.6 | V | ||
| IOUT(PEAK) | Maximum peak current driven by motor | 2.5 | A | ||||
| Iout | Motor-driven continuous drop current | 1.5 | A | ||||
