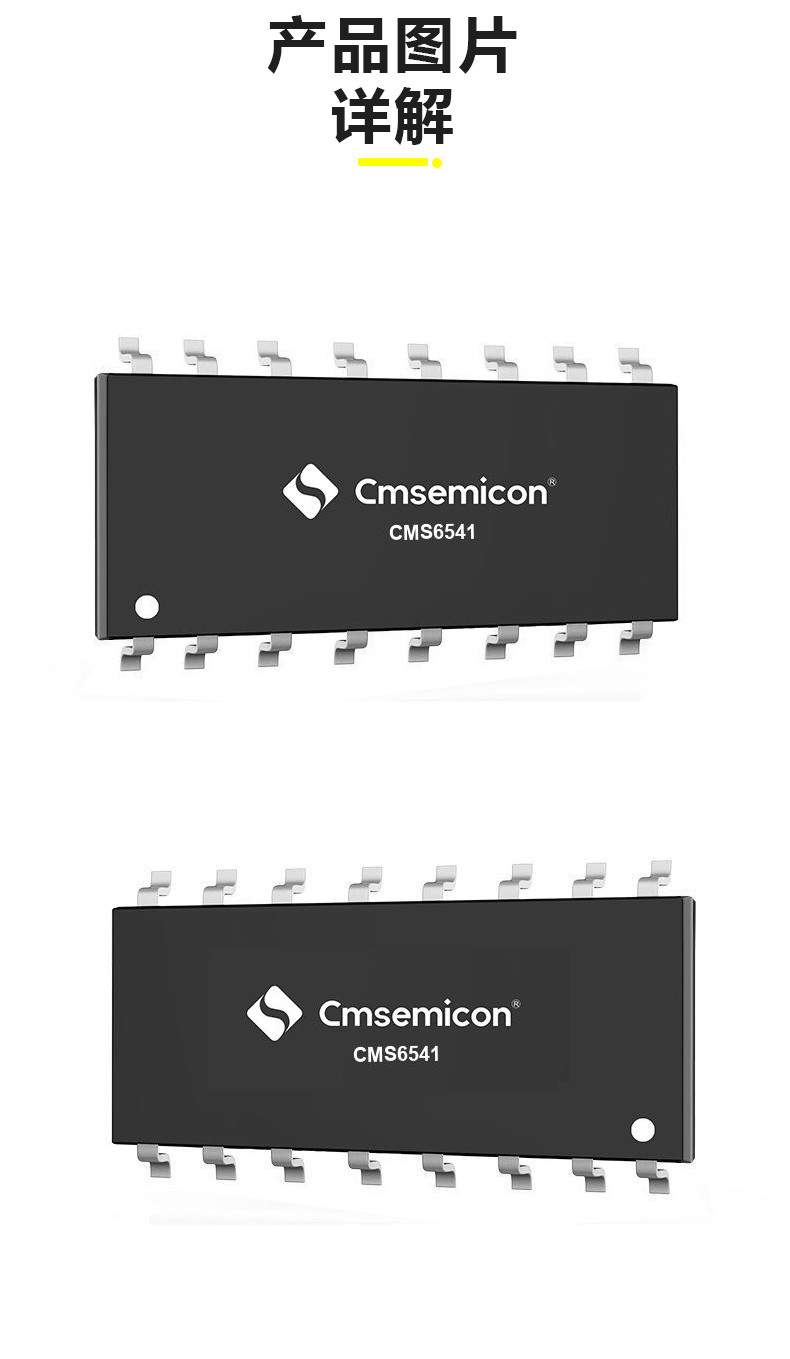

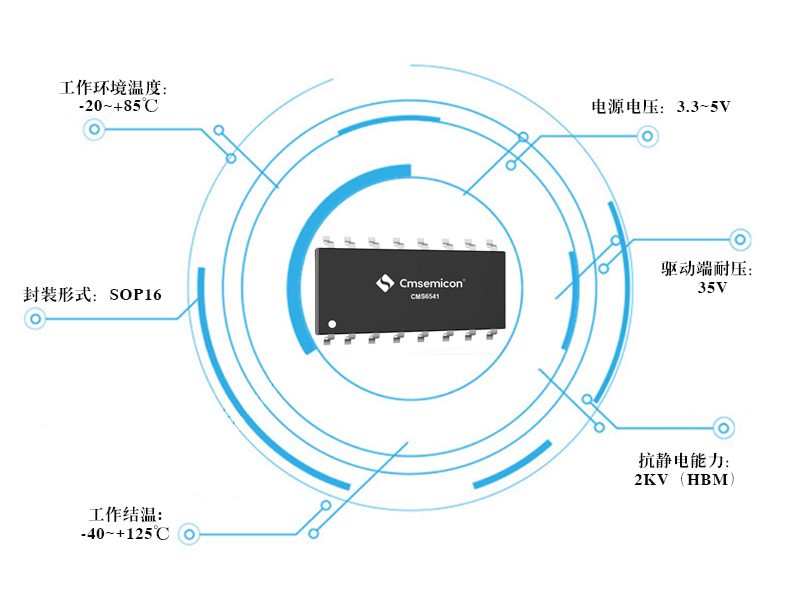

Insulated Gate Bipolar TransistorCMS6541 IGBT semiconductor
CMS6541
minimum order
1 piece
Quantity
- Model Number:CMS6541
- Type:Other
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Package Type:Surface Mount
- Supplier Type:Agency
- Media Available:datasheet
- Absolute voltage:VS1,2,3+25V
- Relative voltage:180V
- High side output voltage:VB1,2,3+0.3V
- Maximum supply voltage:25V
- Low side output voltage:VCCV
- Junction temperature:150℃
- Storage temperature:150℃
- Maximum power consumption (Note 1):1.25W
- Pin welding temperature (duration 10s):260℃
- ESD (Note 2):2000V
Xst-igbt-cms6541 integrated circuit 5-way open drain drive; Xst-igbt-cms6541 circuit integrates watchdog function to delay protection for three drives.
| parameter | Symbol | value | Unit |
| supply voltage | VCC(MAX) | 5.5 | V |
| OCO maximum continuous output current | Ioc0 | 7 | mA |
| OC1 ~ oc4 maximum continuous output current | Ioc1~4 | 70 | mA |
| Maximum power consumption | PDmax | 1 | W |

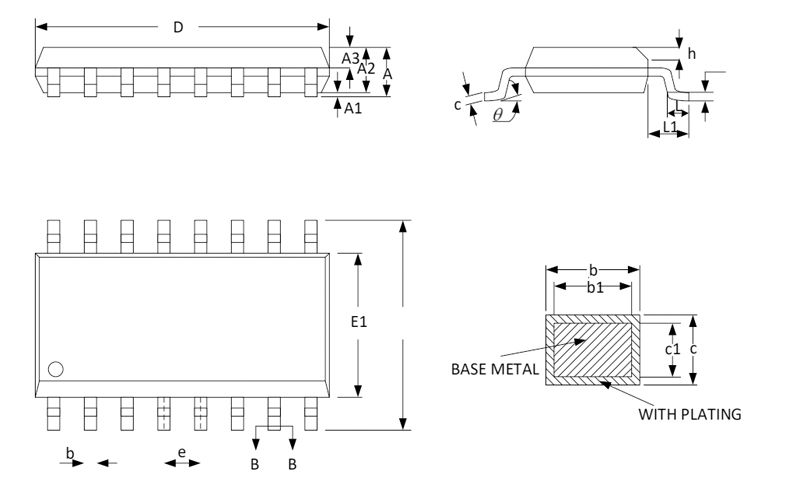

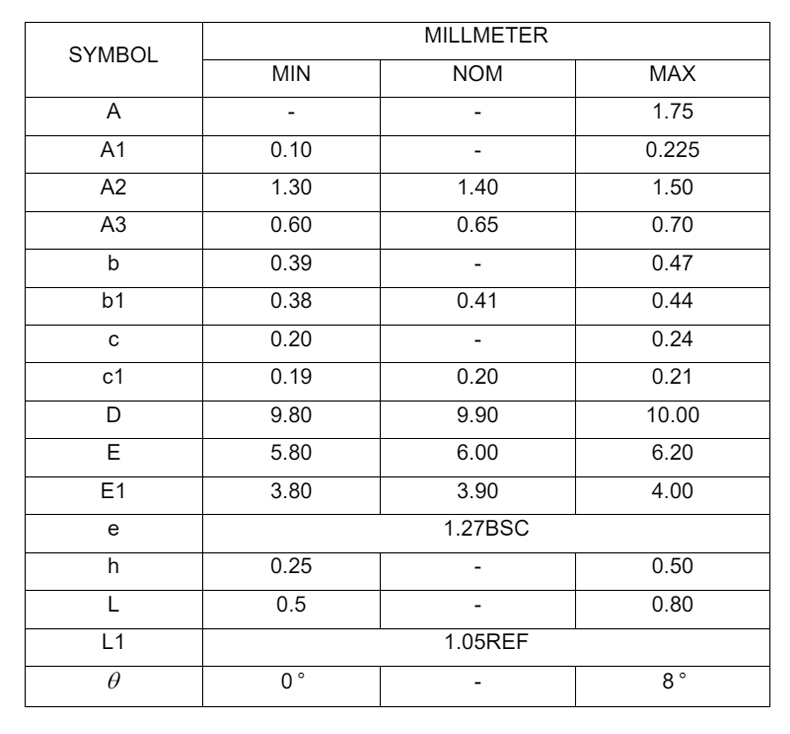

| Junction to ambient thermal resistance sop16l package | θJAS | 120 | ℃/W |
| Operating temperature range | Topr | -20~+105 | ℃ |
| Junction temperature | TJ | 150 | ℃ |
| Storage temperature | Tstg | -55~+150 | ℃ |
| welding temperature | TLED | 260℃,10S | |
| ESD(3) | 2K | V |
| Parameter | Symbol | Condition | Minimum value | Typ | Maximum | Unit |
| Input voltage | P0-P4 | ON | 2.7 | 5 | 5.5 | V |
| OFF | 0 | - | 0.7 | V | ||
| Input current | IP0-IP4 | P0-P4=5V | 300 | 500 | 700 | uA |
| I_PWM | PWM_IN=5V | 300 | 500 | 700 | uA | |
| I_OC5 | OC5=12V | 90 | 120 | 150 | uA | |
| Quiescent current | IQ | / | 30 | 50 | 70 | uA |
| Oc0 continuous output current | IOC0 | P0=5V | 4 | 5 | 6 | mA |
| OC1 ~ 4 continuous output current | IOC1-IOC4 | P1-P4=5V (PWM_IN=5V, F=1KHZ duty=50%) | 40 | 50 | 60 | mA |
| Output impedance | ROC0 | P0=5V,I=5mA | 60 | 80 | 110 | Ω |
| ROC1~4 | P1-P4=5V I=50mA (PWM_IN=5V, F=1KHZ duty=50%) | 6 | 8 | 11 | Ω | |
| Oc5 monitoring overturning voltage | Vdetect | P5 string 30K resistance to 5V, reduced" Drive terminal voltage until P5 turns over | 4 | 6 | 8 | V |
| Watchdog delay protection | T | P1~3=5V,1=30mA Reduce PWM_ In frequency untilOc1-oc3 overturn | 16ms | 20ms | 24ms | V |
| Operating temperature range | TA | - | -20 | - | 85 | ℃ |
| Working junction temperature | TJ | - | -40 | - | 125 | ℃ |
