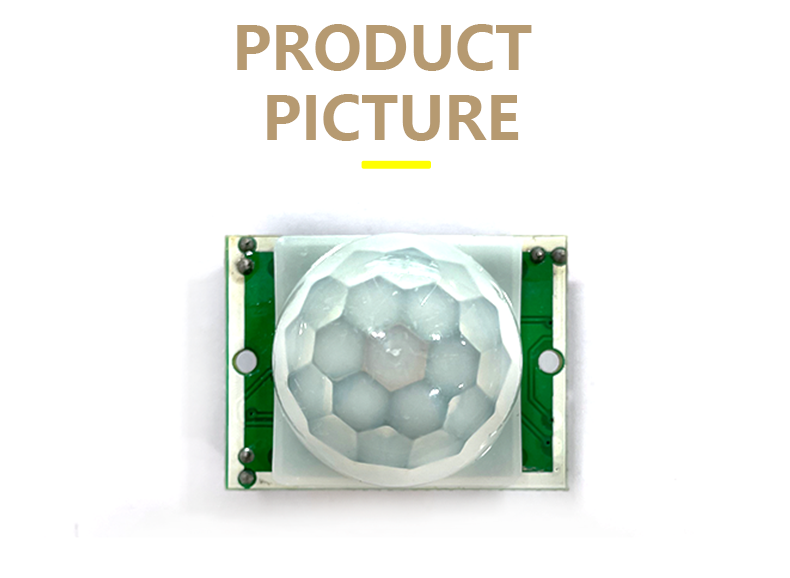

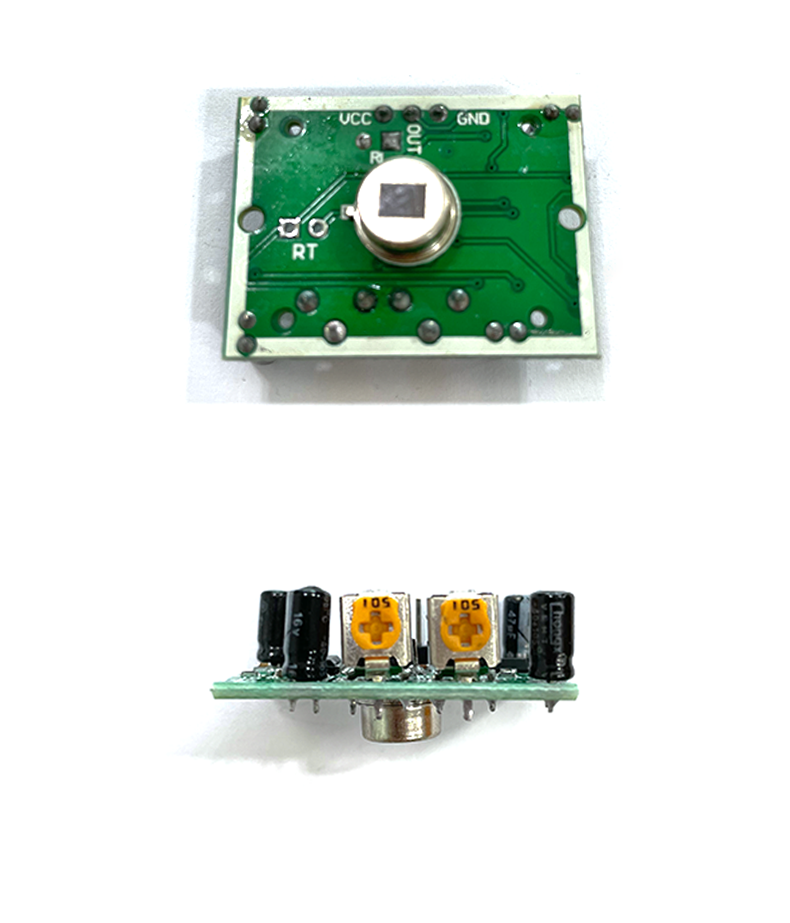

HC-SR501 Human Body Infrared Sensor Module PIR IR Module green/blue board

• Model Number:XST-MZ-416B
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Chipset:HC-SR501
• Application:Human infrared induction
• Work voltage range:DC voltage 3.6 ~ 20V
• Static current:<50uA
• Level output:height 3.3 V /low 0V
• Delay time:0.5-200s (adjustable)
• Circuit board shape size:32mm*24mm
• Sensing angle:<100 degrees cone angle
• Work temperature:-15-+70 degrees
• Sensor lens size:diameter: 23mm (default)

Product Description:

   D-SUN PIR human infrared sensing module is an automatic control product based on infrared technology. High sensitivity, strong reliability, ultra -low power consumption, ultra -low voltage working mode. Widely used in various types of automatic sensing electrical equipment, especially automatic control products for dry battery power supply.

Electrical parameter

Product model: HC-SR501 human sensing module

Work voltage range: DC voltage 3.6 ~ 20V

Static current: <50UA

Level output: height 3.3 V /low 0V

Triggement: l Repeatable triggers/h Repeat triggers (default repeated trigger)

Delay time: 0.5-200s (adjustable) can be produced at zero several seconds-tens of minutes

Blocking time: 2.5s (default) can be made in zero-second-tens of seconds

Circuit board shape size: 32mm*24mm

Sensing angle: <100 degrees cone angle

Work temperature: -15-+70 degrees

Sensor lens size: diameter: 23mm (default)
