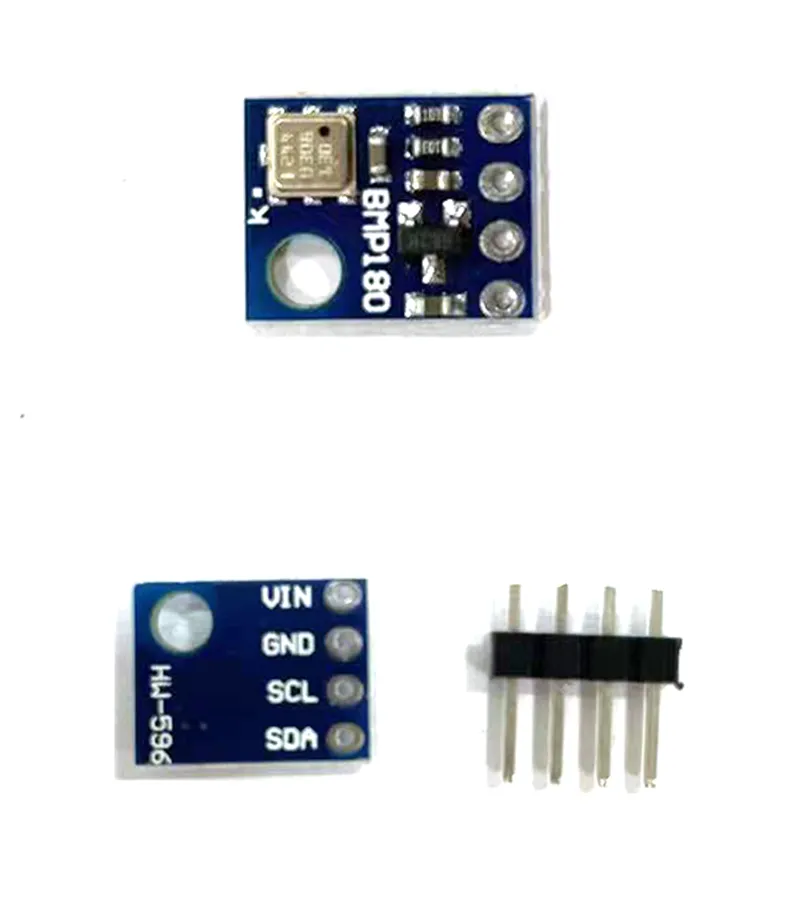

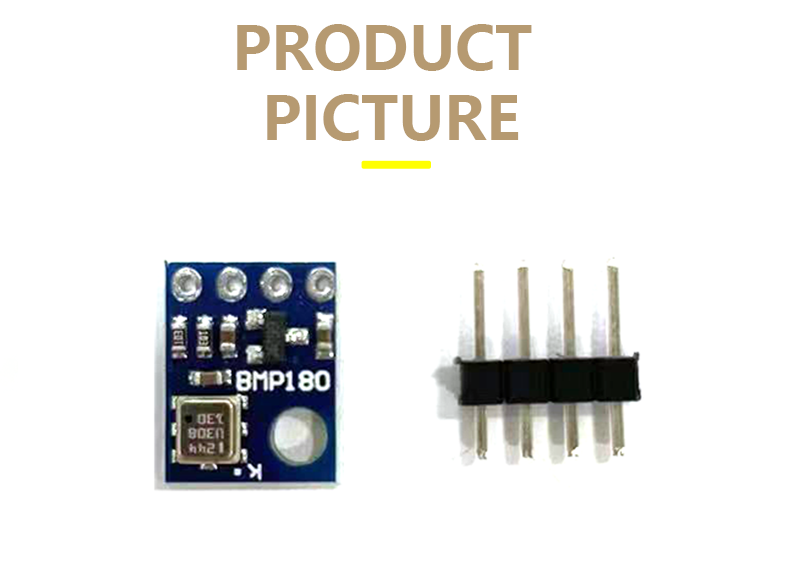

GY-68 BMP180 Air Pressure Sensor Module High Precision Height Sensor Module instead of BMP085

• Model Number:XST-MZ-596
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Brand Name:Xunster
• Chipset:GY-68 BMP180
• Application:GPS precise navigation,Weather forecast
• Pressure range:300 ~ 1100HPa
• Power voltage:1.8V ~ 3.6V (VDDA), 1.62V ~ 3.6V (VDDD)
• Size:3.6mmx3.8x0.93mm
• Over current:0.1 uA

BMP180 is a high -precision, small volume, ultra -low energy -consuming pressure sensor that can be applied to mobile devices.

Its performance is excellent, the minimum accuracy can reach 0.03HPa, and the electricity consumption is low, only 3 μA.

The BMP180 uses a powerful 8-PIN ceramic-free chip bearing (LCC) ultra-thin packaging, which can be directly connected to various microprocessors through the I2C bus.

Main feature:

Pressure range: 300 ~ 1100HPa (9000 meters above sea level ~ -500 meters)

Power voltage: 1.8V ~ 3.6V (VDDA), 1.62V ~ 3.6V (VDDD)

LCC8 packaging: lead -free ceramic carrier packaging (LCC)

Size: 3.6mmx3.8x0.93mm

Low power consumption: 5μA, in the standard mode

High -precision: In low power consumption mode, the resolution is 0.06HPa (0.5 meters)

In high linear mode, the resolution is 0.03HPa (0.25 meters)

Temperature output

I2C interface

Temperature compensation

Leadless, in line with the ROHS specification

MSL 1 reaction time: 7.5ms

Over current: 0.1 uA

No external clock circuit is required

Typical application:

GPS precise navigation (calculation of pedestal, upper and lower bridge testing, etc.)

Indoor outdoor navigation

Monitoring such as leisure, sports and health

Weather forecast

Vertical speed indication (up/sinking speed)

Fan power control
