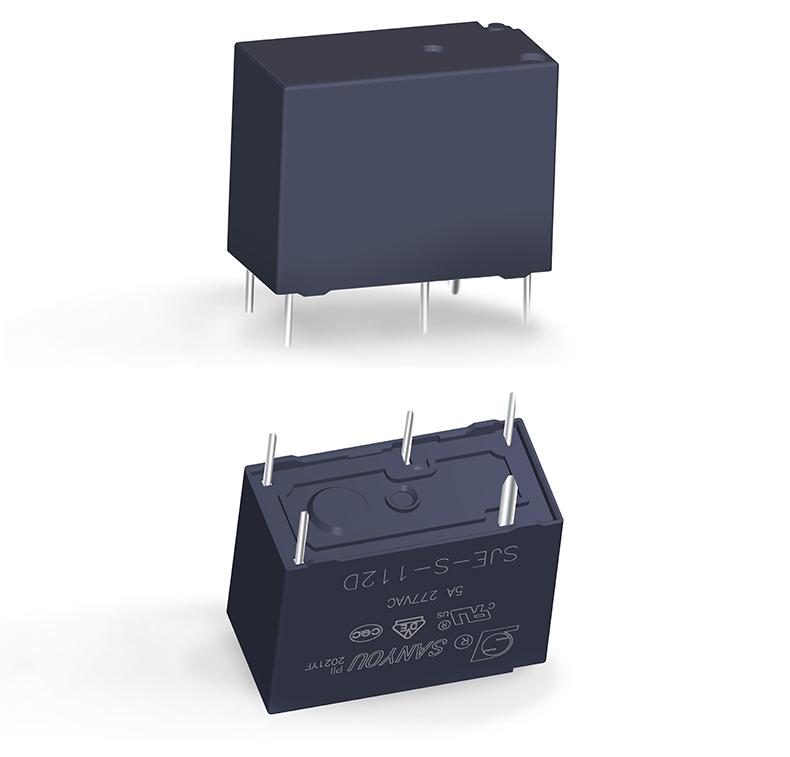

General Power Relay 10A switching small size PCB relay
XST-JDQ-SJE10AV1.0
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:XST-JDQ-SJE10AV1.0
- Type:POWER RELAY
- Switching Voltage:10A
- Mounting Type:Surface Mount
- Operating Temperature:-40℃~+105℃
- Output Type:AC
- Voltage - Output:277VAC
- Relay Type:General Purpose
- Nominal switching capacity:NO/NC:10A/5A 277VAC
- Max.switching power:2770VA
- Contact material:Silver alloy
- Initial contact resistance (at 6VDC 1A):100mΩ Max.(1A 6VDC)
- Initial insulation resistance:1,000MΩ Min.(DC500V)

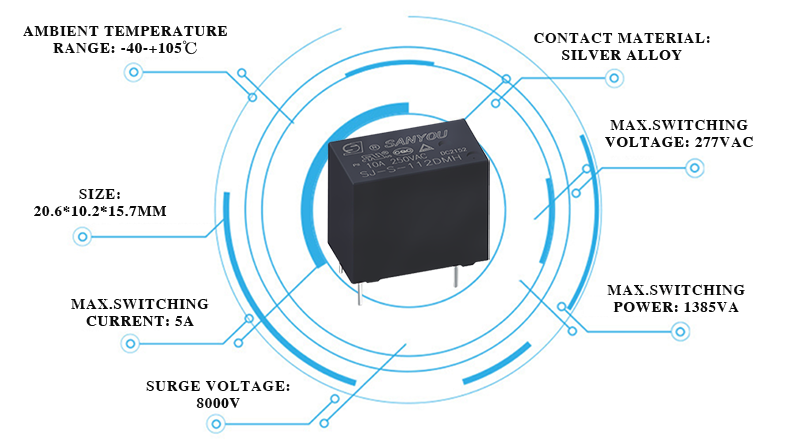

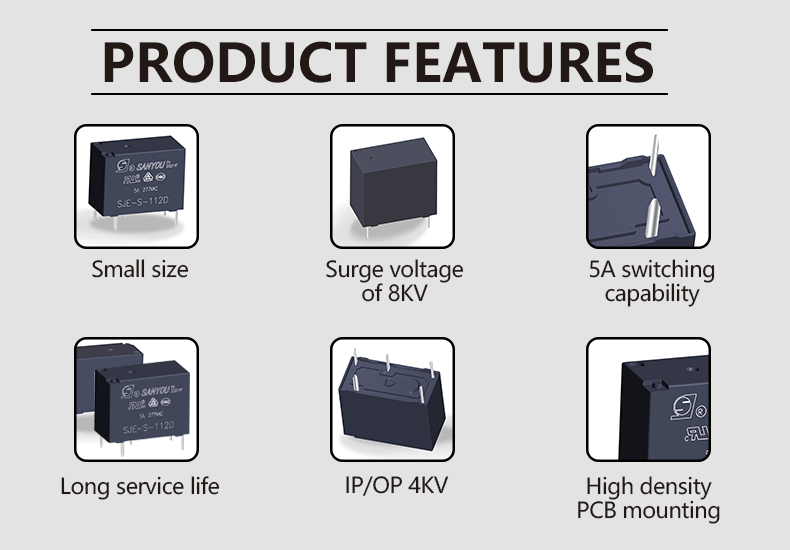

XST-JDQ-SJE(5A)V1.0 can be applied to air conditioner,refrigerator,microwave oven,stove etc. Small size (20.6x10.2x15.7 mm) with 5A switching capability for high density PCB mounting. IP/OP 4KV.Withstand surge voitage of 8KV. It has UL, c-ul, VDE, CQC, TUV and other certifications. It has the characteristics of long service life, strong impact resistance and low power, etc
| Model | SJE-D(E,L)H | SJE-D(E,L)MH |
| Nominal switching capacity | NO/NC:10A/5A 277VAC | 10A 277VAC |
| Max.switching current | 10A | 10A |
| Max.switching voltage | 277VAC | 277VAC |
| Max.switching power | 2770VA | 2770VA |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 (at room temperature) |
| Electrical(at 360 ops./h) | 100,000 (at room temperature) | |
| Ambient temperature | -40℃~+105℃(no condensation) | |
