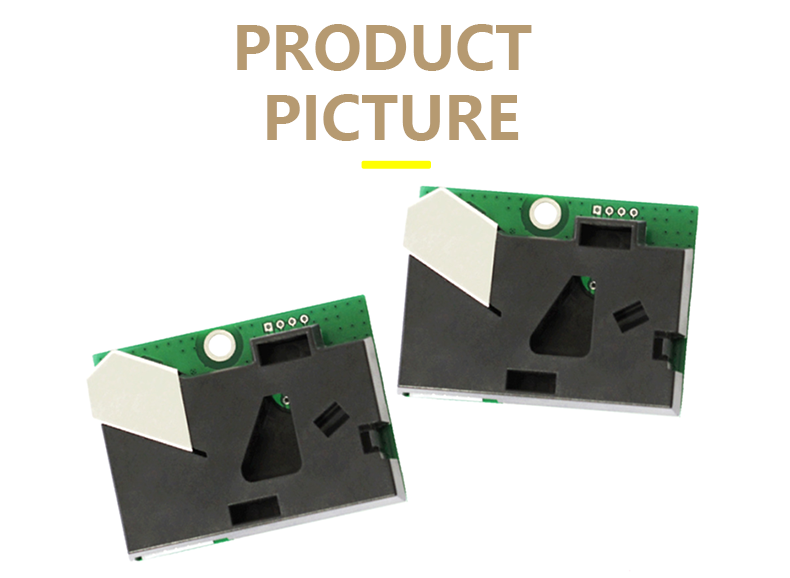

Dust Sensor Module For Household ZPH02 Air-quality and Particles Sensor Two-in-one Sensor

• Model Number:XST-ZPH02
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Air-quality and Particles
• Brand:Air-quality and Particles Sensor
• Voltage - Supply:5±0.2 V DC
• Current - Supply:≤150mA
• Operating Temperature:0℃~50℃
• Humidity Range:≤90%RH

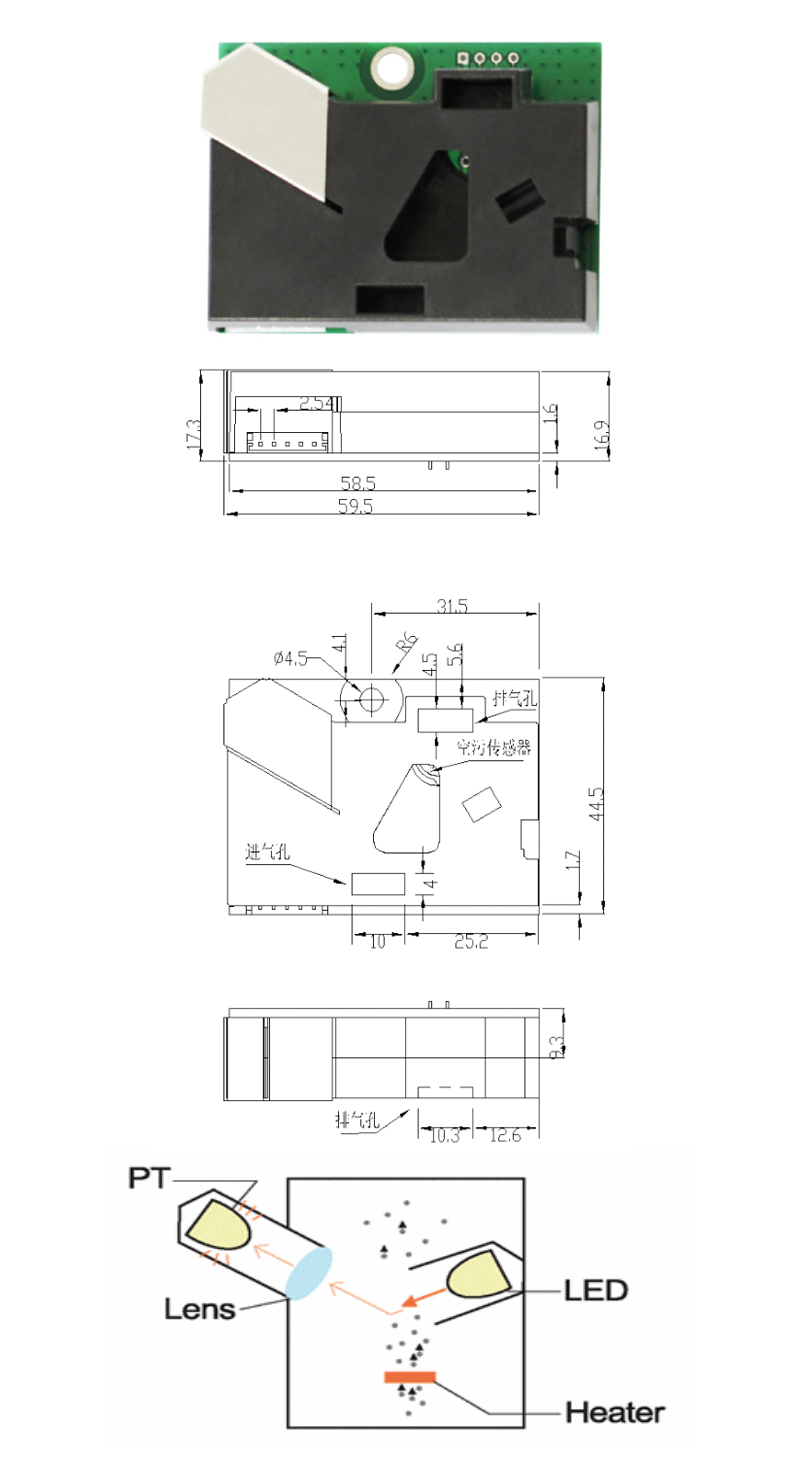

• Size / Dimension:59.5x44.5x17mm(LxWxH)
• Current Rating - AC:-
• Current Rating - DC:-
• Tolerance:-
• Voltage - Rated:-
• Flow Sensor Type:-
• Application:Air Purifier
• D/C:-
• Cross Reference:-
• Output UART:9600, 1Hz±1%
• Output PWM:period: 1Hz±1%
• Warm-up time:≤5min
• Physical interface:EH2.54-5P terminal socket

Profile
This module integrates mature VOC detection technology and advanced PM2.5 detection technology to detect VOC and PM2.5 at the same time. The VOC sensor in this module has high sensitivity to formaldehyde, benzene, carbon monoxide,ammonia, hydrogen, alcohol, cigarette smoke, essence and other organic vapors.PM2.5 detection adopts particle counting principle to detect the particles (diameter ≥1μm).Before delivery, the sensor has been aged, debugged, calibrated and has good consistency and high sensitivity. It has the PWM signal output, and it can be configured to be UART digital serial interface and customized IIC interface.

Features
2 in 1
High Sensitivity
Good Consistency
Good Stability for long time
Interface output is multiple
Easy to install and use

Applications
Air Purifier
Air Refresher
Portable meter
HVAC System
AC System
Smoke Alarm System
