Circuit Protection SMD Bidirectional SMC TVS Diodes for cell phone handsets

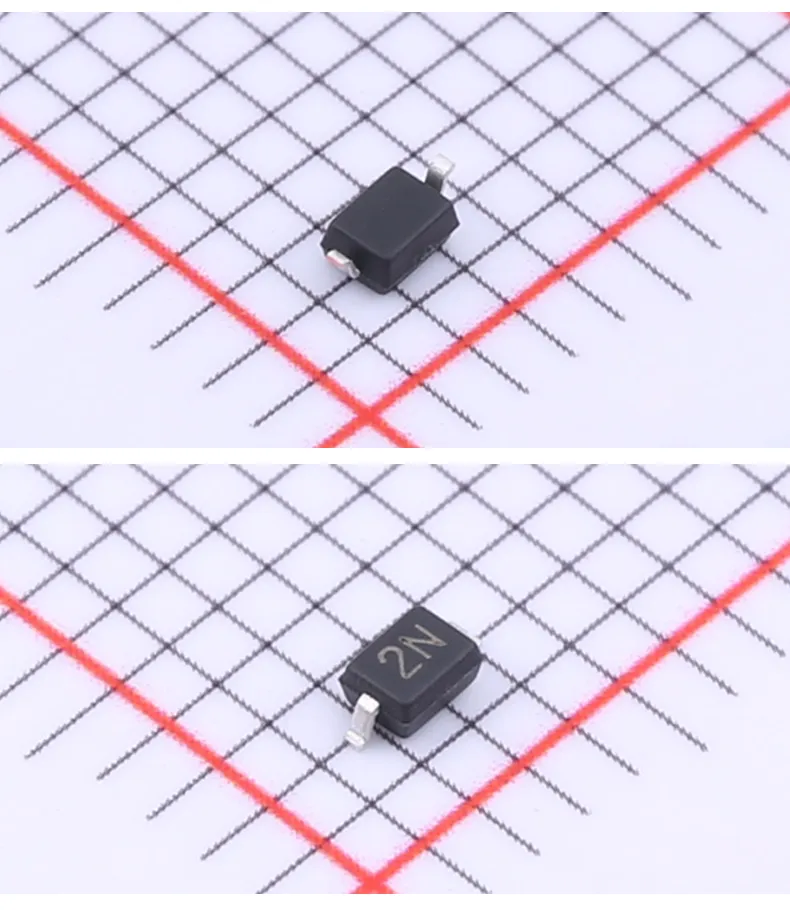

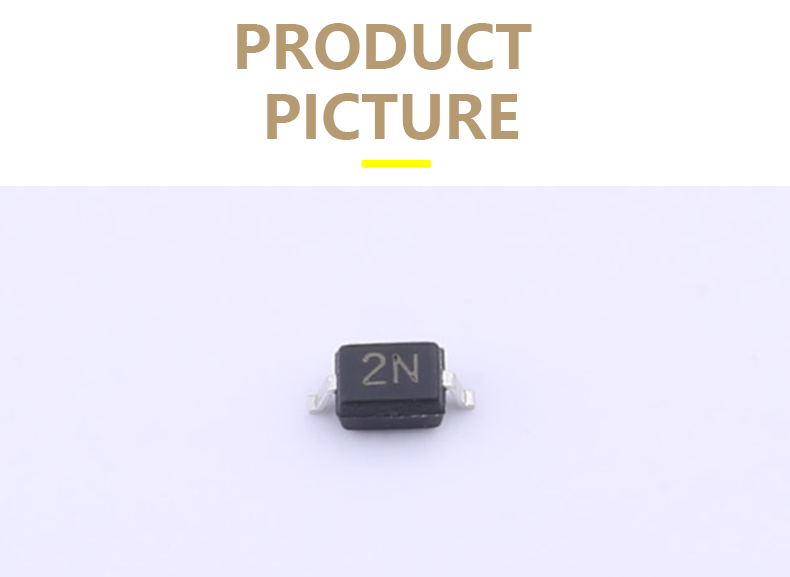

XST-ESD-SD36C
minimum order
1 piece
Quantity
- Model Number:XST-ESD-SD36C
- Type:TVS DIODE
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- D/C:contact us
- Package Type:Surface Mount
- Application:contact us
- Supplier Type:Agency
- Media Available:datasheet
- Brand:TVS DIODE
- Operating Temperature:-55to150℃, -55to+150℃
- Mounting Type:Surface Mount

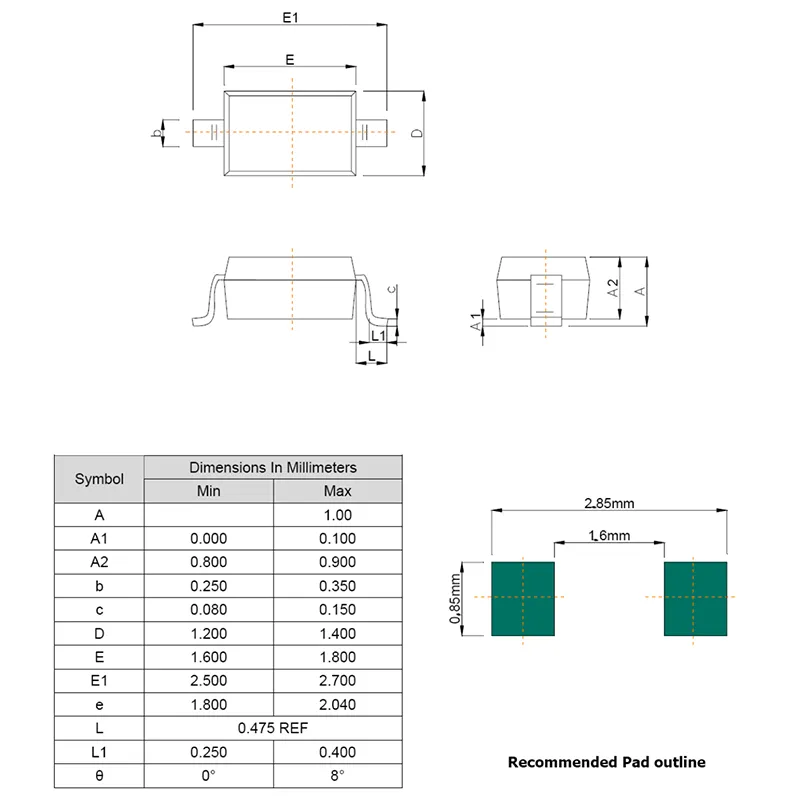

- Package / Case:SOD-323

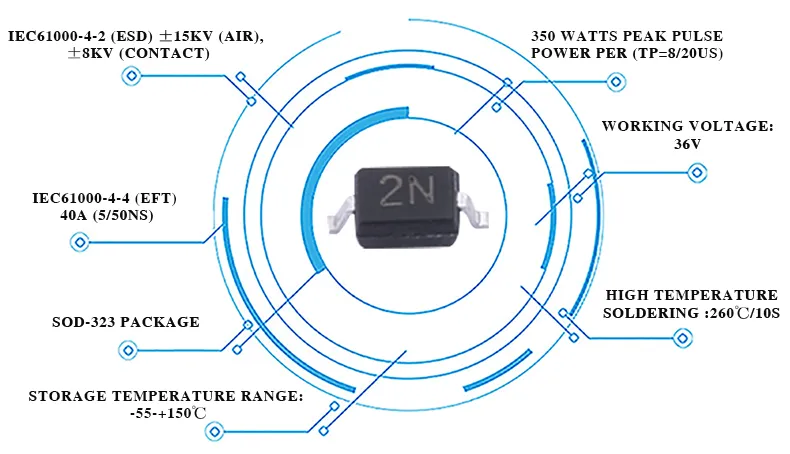

- ESD per IEC 61000-4-2 (Air):±15kV
- Peak Pulse Power (8/20μs):350W
- Storage Temperature:-55to+150℃
- Lead Soldering Temperature:260(10 sec.)℃
The XST-ESD-SD36C is designed for applications requiring transient overvoltage protection capability. This series has been specifically designed to protect sensitive components which are connected to power,data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).They are intended for use in voltage
and ESD sensitive equipment.
| PART NUMBER | DEVICE MARKING | VRWM (V) Max | VB (V) Min | IT (mA) | VC@1A (V) Max | VC (V) | IR (µA) Max | CT (pF) Max | |
| Max | (@A) | ||||||||
| SD03C | 2A | 3.3 | 4 | 1 | 7.5 | 13.0 | 20 | 40 | 450 |
| SD05C | 2B | 5 | 6 | 1 | 9.8 | 18.0 | 17 | 10 | 200 |
| SD08C | 2C | 8 | 8.5 | 1 | 13.4 | 24.0 | 15 | 2 | 120 |
| SD12C | 2D | 12 | 13.3 | 1 | 19.0 | 32.0 | 11 | 1 | 75 |
| SD15C | 2J | 15 | 16.7 | 1 | 24 | 38.0 | 10 | 1 | 68 |
| SD18C | 2K | 18 | 20 | 1 | 29 | 45.0 | 9 | 1 | 57 |
| SD24C | 2H | 24 | 26.7 | 1 | 43 | 52.0 | 7 | 1 | 50 |
| SD36C | 2N | 36 | 40 | 1 | 60 | 75.0 | 5 | 1 | 35 |
