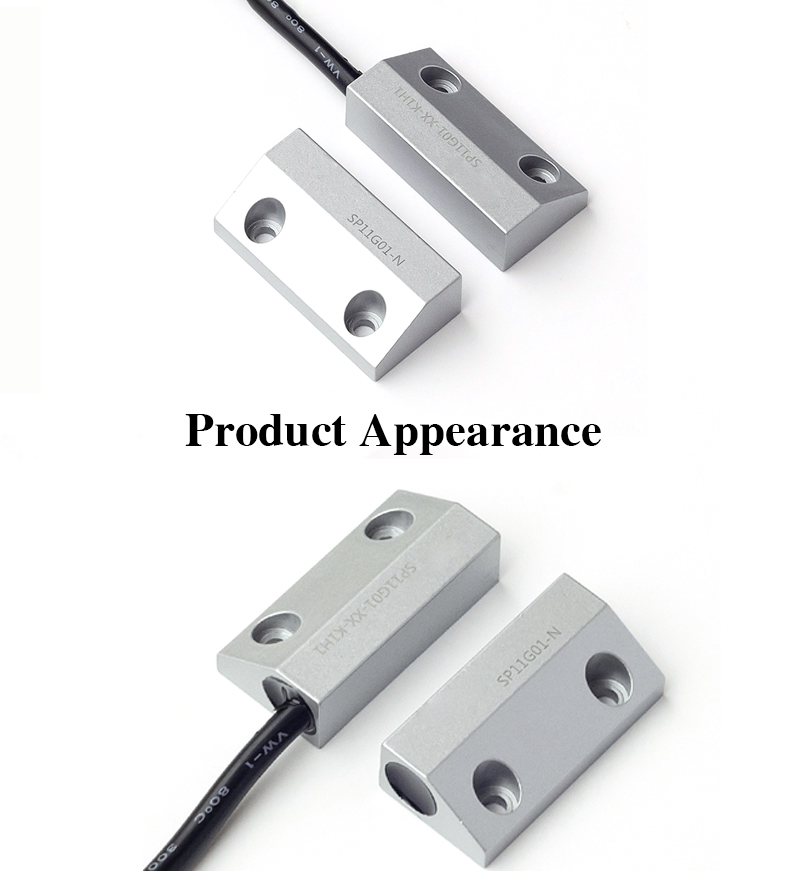

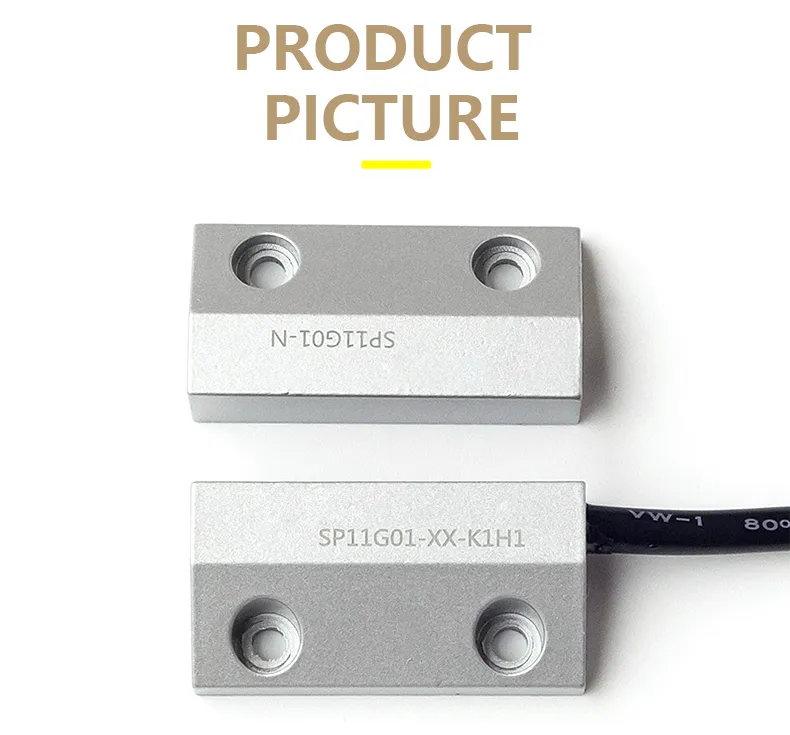

Broadside Customized Low Voltage Motion Switch Position Detection Magnetic Proximity Sensor

• Model Number:XST-JJ-SP11G
• Type:Magnetic Proximity Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Position Detection
• Description:Magnetic Proximity Sensor
• Contact power:70 W-max
• Switching voltage:DC 200 V-max
• breakdown voltage:DC 400 V-min
• Switching current:1.0 A-max
• temperature range:-25℃ ~ +95℃

 The proximity switch generates a magnetic field around the sensor by changing the position and polarity of the trigger.So that the contact of the sensor acts. The design life of the seal is more than 1 million times, which is convenient to install and can be adjusted according to different application environments of customers. CharacteristicNo need to stay power, good gas tightness, long service lifeMultiple magnetic field sensitivity range, which can be equipped with a magnet triggerHigh stability, high reliability, high consistencyCustomers can customize cables, terminals, etc. Application fieldindustrial controlPosition detectionSecurity anti -theftCheck the rising state of the vehicle cargo boxTest box cover closed * Product specifications can be customized according to customer requirements.  ProjectsParameterContact formType a contact (normally open type)Contact power70 W-maxSwitching voltageDC 200 V-maxbreakdown voltageDC 400 V-minSwitching current1.0 A-maxload current1.75 A-maxContact impedance1.0 Ω-maxInsulation impedance1010 Ω-minContact capacity0.3 Pf-typtemperature range-25℃ ~ +95℃
