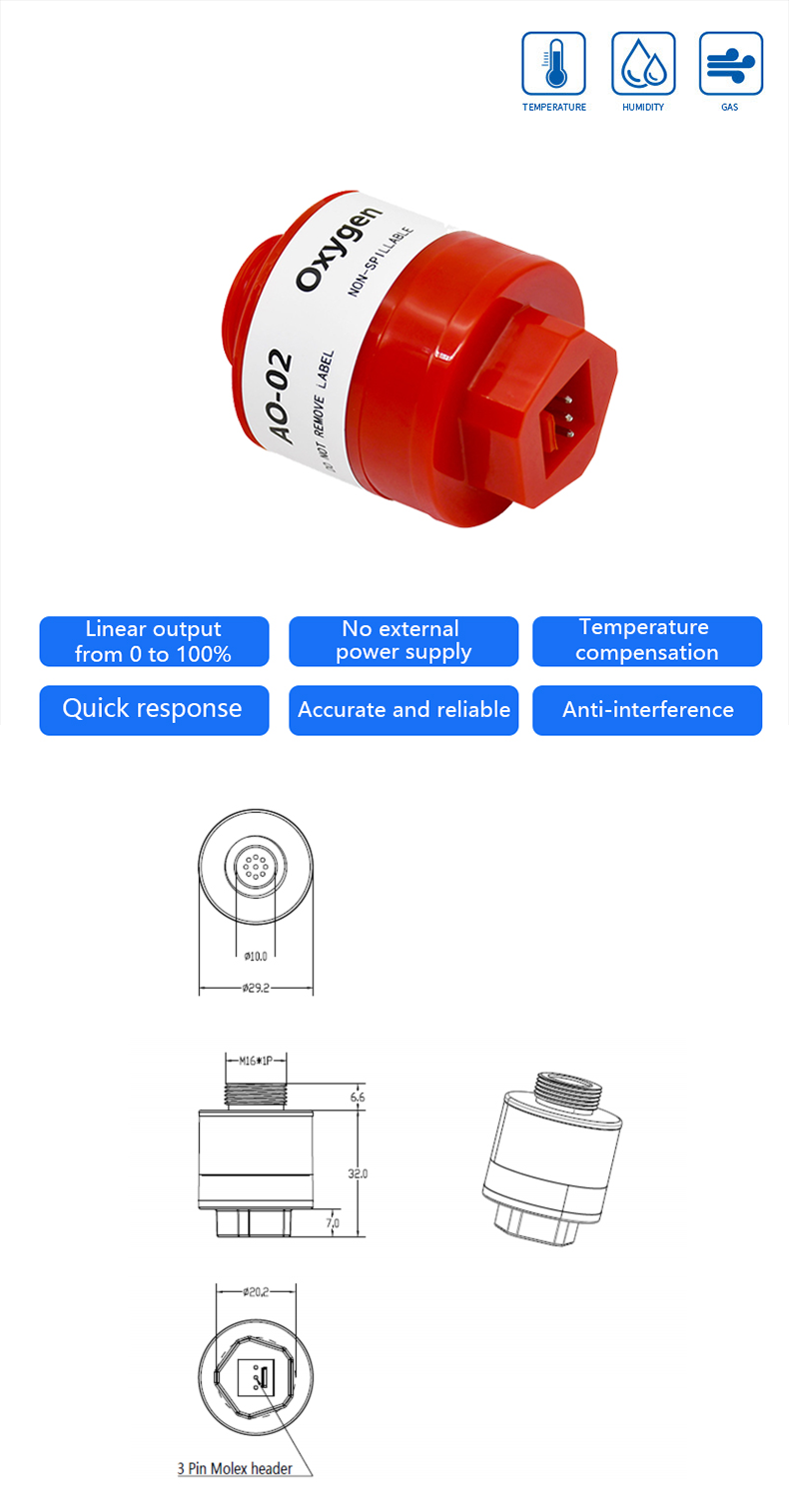

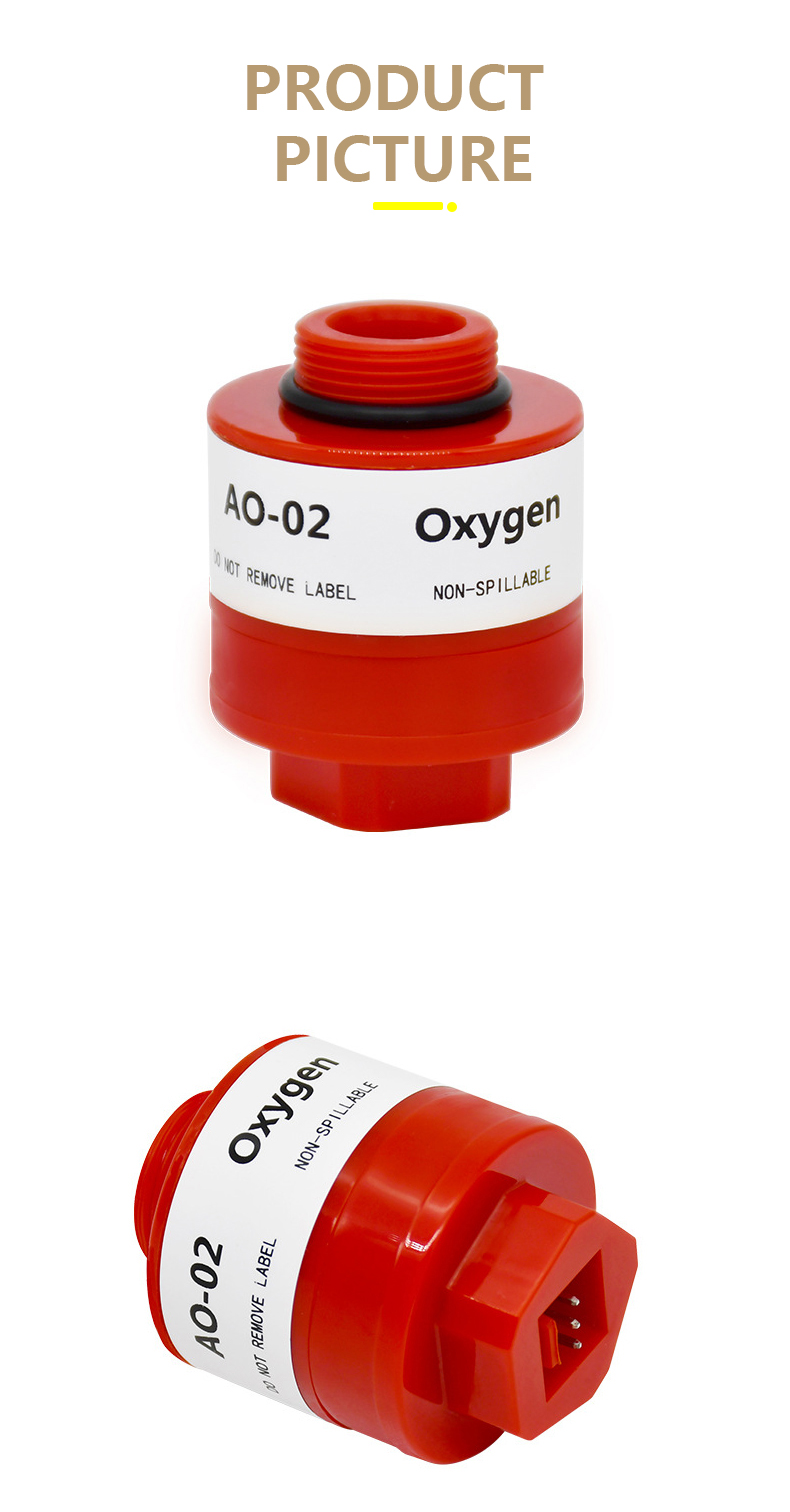

AO2 Oxygen Sensors For Cars PTB-18.10 AO3 Gas Sensor For Oxygen detection

• Model Number:XST-AO2-PTB18
• Type:Air quality sensor, Gas Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Oxygen detection
• Description:AO2 Oxygen Sensors

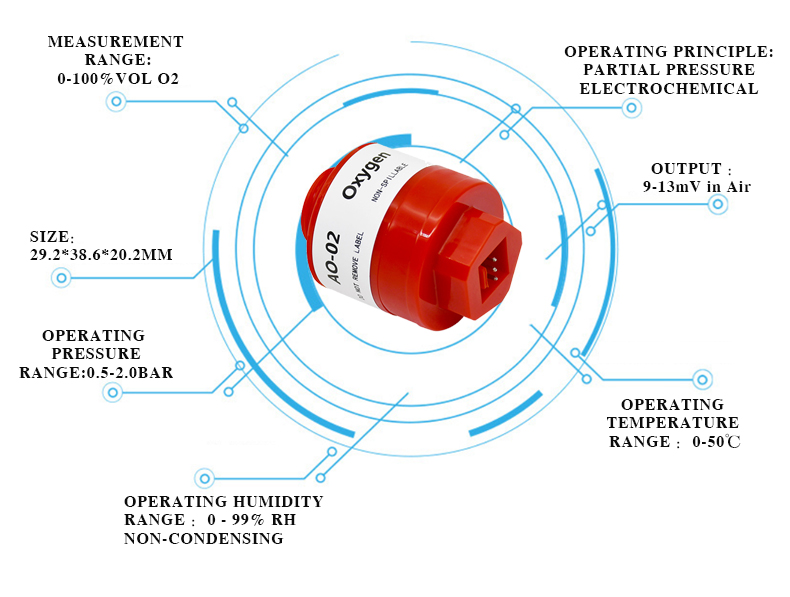

• Operating Principle:Partial Pressure Electrochemical
• Output:9 - 13 mV in Air
• Measurement Range:0 - 100%Vol.O2
• Response Time (T 90):<5 s
• Response Time (T 99.5 ):<40 s
• Baseline Offset:<20 μV
• Linearity:Linear 0-100%Vol.O2
• Temperature Compensation:0 °C to 40 °C
• External Load Resistor:≥ 10 kΩ

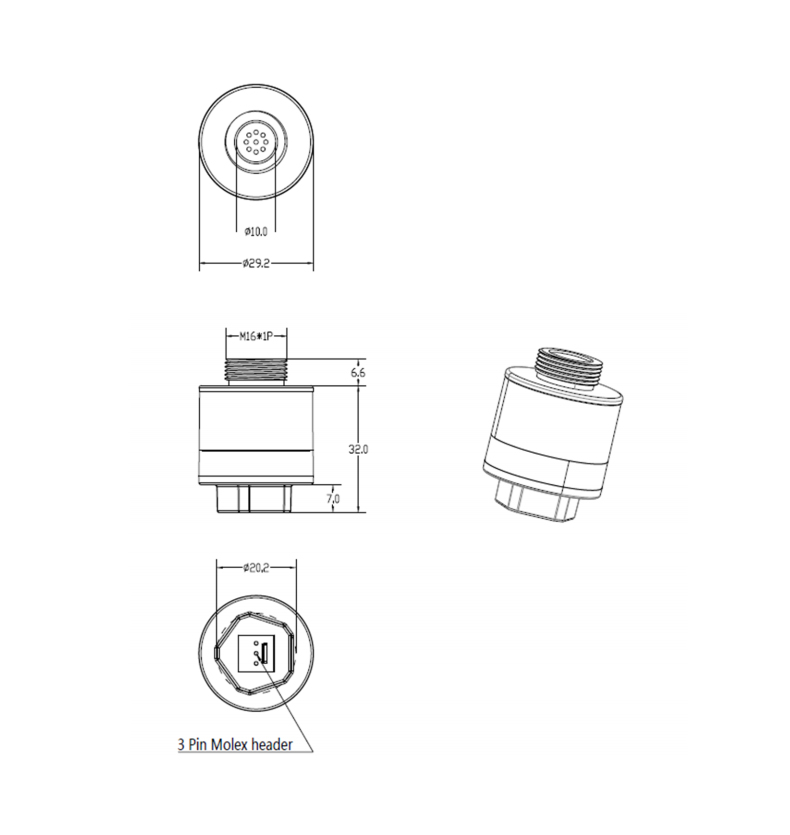

• Connector:3 Pin Molex header

The AO2-PTB18 oxygen sensor is designed to be for various instruments related to oxygen testing, such as motor vehicle exhaust gas detection equipment, exhaust gas environmental protection detection equipment and oxygen index testing equipment, etc. The use is limited to system monitoring. The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture. Please strictly follow the instructions for operating the oxygen analyzer and replacing the oxygen sensor.
