5V 1mA SOP-8 Package Absolute Pressure Sensor For Air Pressure Related Products
XST-GM-SV-SOP8-0100A
minimum order
1 piece
Quantity

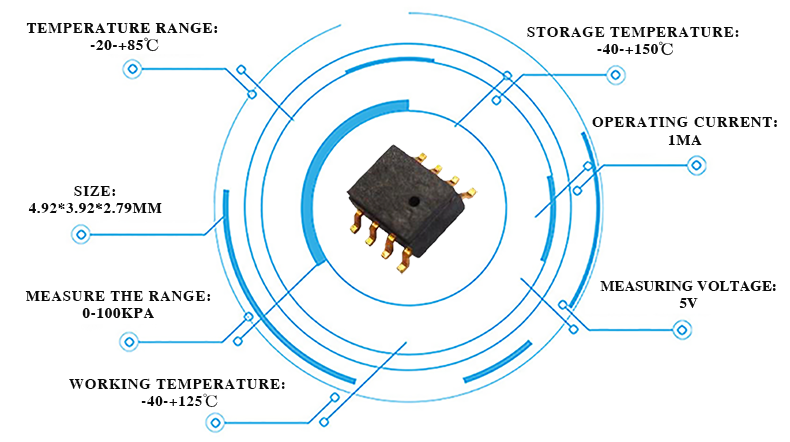

- Model Number:XST-GM-SV-SOP8-0100A
- Type:ABSOLUTE PRESSURE SENSOR
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Usage:Air Pressure Related Products
- Description:Absolute Pressure Sensor
- Range:0-100kPa
- Operating voltage:5V
- working current:1mA
- Bridge resistor:3.5-4.5kΩ
- Full range output:80-120mV
- Zero point output:-35~5mV
- Degree of linearity:0.3-0.5%FS
- Stress hysteresis:0.2%FS
- Storage temperature:-40°C ~ 150°C
- Overload pressure:3X kPa

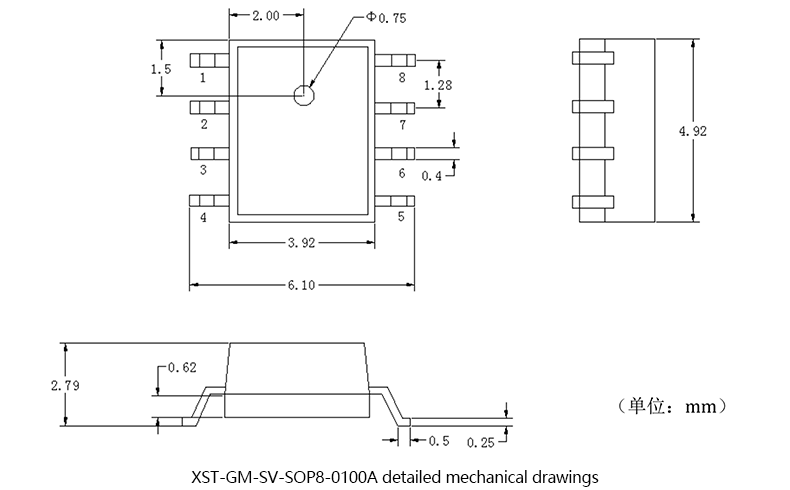

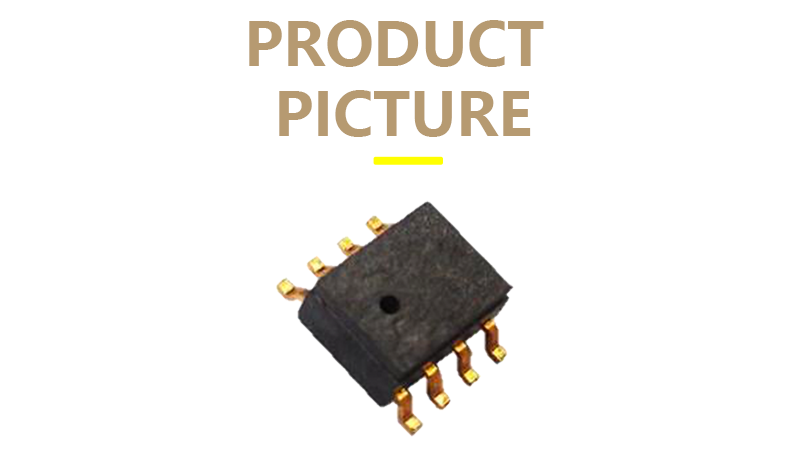

XST-GM-SV-SOP8-0100A is a SOP-8 package of absolute pressure sensor, is by the company independently developed and produced by the diffusion silicon pressure resistance pressure sensor core package, using neutral soft transparent silica gel protection, can be effectively moisture-proof, and use open ring circuit design, more convenient for subsequent circuit processing, is widely used in pressure related products.
| Parameter | Min. | Typ. | Max | Unit | |
| Range | 0 | — | 100 | kPa | |
| Operating voltage / working current | — | 5/1 | — | V/mA | |
| Bridge resistor | 3.5 | 4.0 | 4.5 | kΩ | |
| Full range output | 80 | 100 | 120 | mV | |
| Zero point output | -35 | -15 | 5 | mV | |
| Temperature coefficient | Zero drift | -0.09 | — | 0.09 | %FS/℃ |
| Sensitivity | -2.5 | -2 | -1.6 | 10-3/℃ | |
| Resistivity | 1.5 | 1.8 | 2.1 | 10-3/℃ | |
| Degree of linearity | — | 0.3 | 0.5 | %FS | |
| Stress hysteresis | — | — | 0.2 | %FS | |
| Repetitiveness | — | — | 0.2 | %FS | |
| Temperature hysteresis | — | — | 0.3 | %FS | |
| Working temperature | -40 | — | 125 | ℃ | |
| Storage temperature | -40 | — | 150 | ℃ | |
| Overload pressure | 3X | kPa | |||
