5V 15-115kPa Analog Output Pressure Sensor Module XST-GM-SV-YHMAP-0100A MEMS mic for Industry
XST-GM-SV-YHMAP-0100A
minimum order
1 piece
Quantity
- Model Number:XST-GM-SV-YHMAP-0100A
- Type:ABSOLUTE PRESSURE SENSOR
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Usage:Industry
- Output:Analog voltage
- Description:pressure sensor
- Pre-processing time:10ms
- Range:15-115kPa
- Operating voltage:4.8-5.5Vdc
- Operating current:3-5mAdc
- Full range span:4.7Vdc
- accuracy:±1.5%VFSS
- sensitivity:45mV/kPa

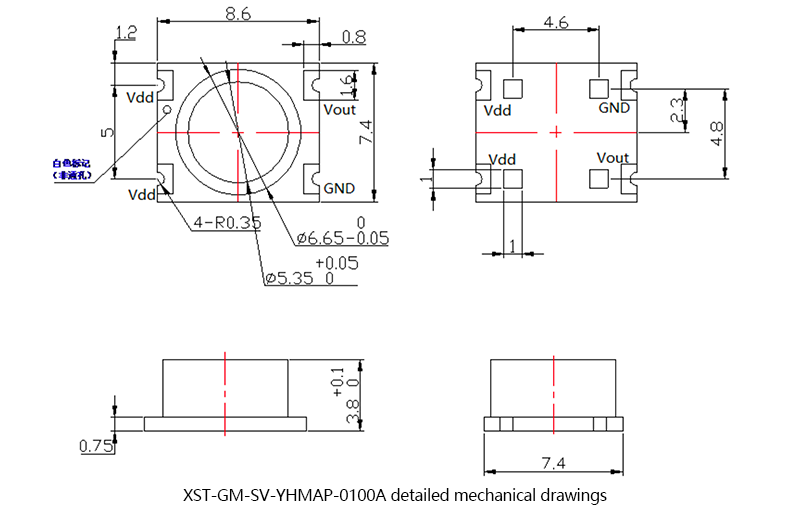

XST-GM-SV-YHMAP-0100A series module is composed of diffusion silicon pressure sensor chip and special signal processing integrated circuit chip,packaged on the 8.6mm×7.4mm FR4 substrate and metal ring.The internal chip and leads are protected by special glue to ensure the pressure sensor module in wet and exhaust environments.Each module is compensated by a linear checksum temperature, so that its voltage output signal is linearly proportional to the input pressure, and is not affected by the operating temperature.Standard power supply voltage is DC 5V, analog voltage output.
| Parameter | Min. | Typ. | Max | Unit | |
| Range | 15 | — | 115 | kPa | |
| Operating voltage | 4.8 | 5 | 5.5 | Vdc | |
| Operating current | 3.0 | 5.0 | mAdc | ||
| Minimum pressure offset @Vs=5V (1) | 0.2 | Vdc | |||
| Full Range FS Output @Vs=5V (2) | 4.5 | Vdc | |||
| Full range span | — | 4.7 | — | Vdc | |
| accuracy | — | — | ±1.5 | %VFSS | |
| sensitivity | — | 45 | — | mV/kPa | |
| Pre-processing time | — | 10 | — | ms | |
| Offset stability | — | ±0.5 | — | %VFSS | |
| Power time | — | — | 10 | ms | |
