30A 200V Low Power Loss and High Efficiency Schottky Diodes For Frequency Switch
XST-EJG-MBRF30200CT
minimum order
1 piece
Quantity
- Model Number:XST-EJG-MBRF30200CT
- Type:Schottky Diode
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Package Type:Surface Mount
- Supplier Type:Agency
- Media Available:datasheet
- Brand:Schottky Diode
- Current - Average Rectified (Io):30A
- Operating Temperature:-55to+150℃
- Mounting Type:Surface Mount

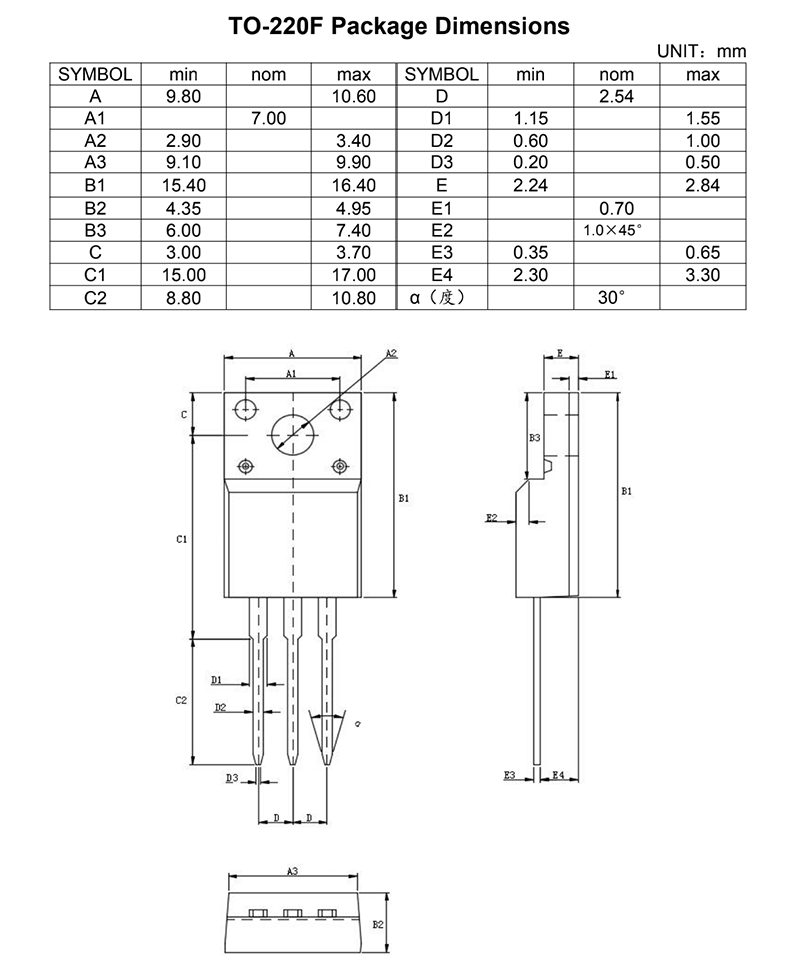

- Package / Case:TO-220F
- Voltage - DC Reverse (Vr) (Max):200V
- VRRM:200V
- VR:200V
- IF(AV):15A(Per Leg)
- IF:30A(Per Device)
- IFSM:250A
- TJ:150℃
- TSTG:-55to+150℃

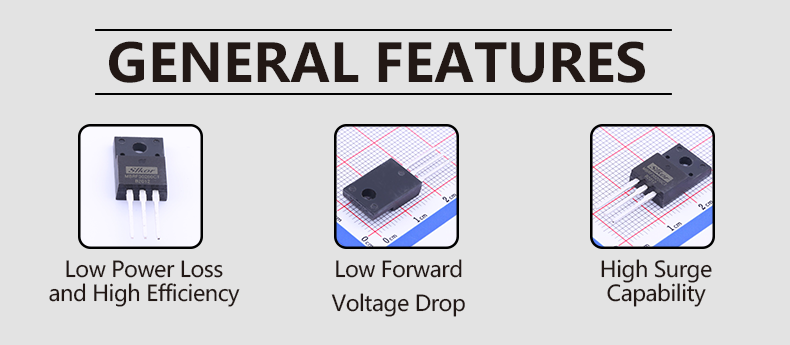

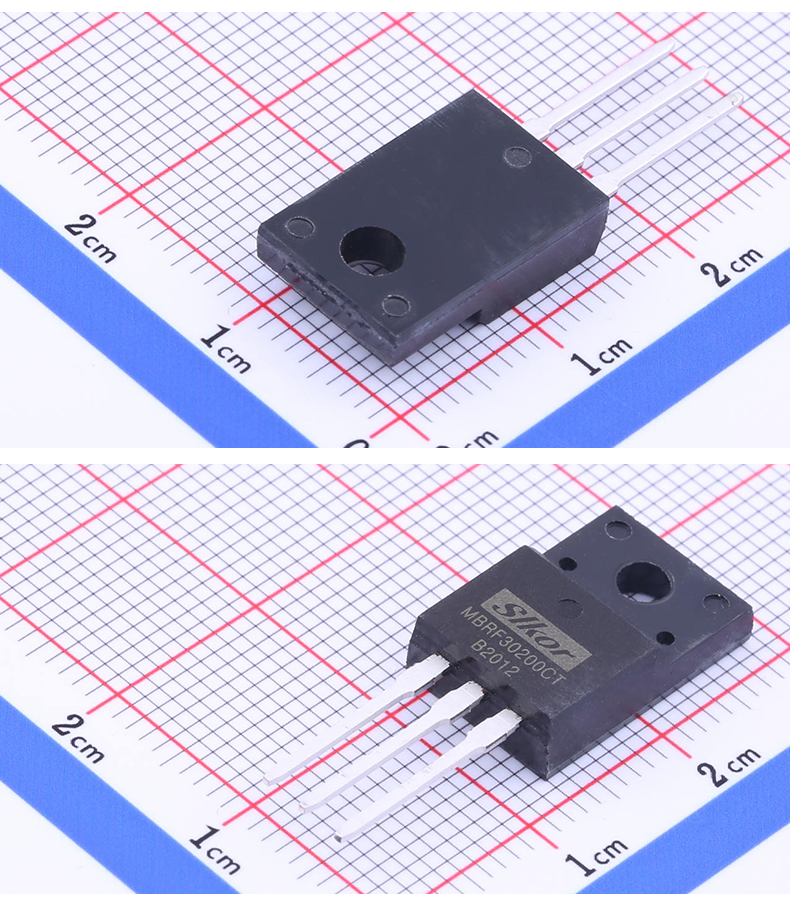

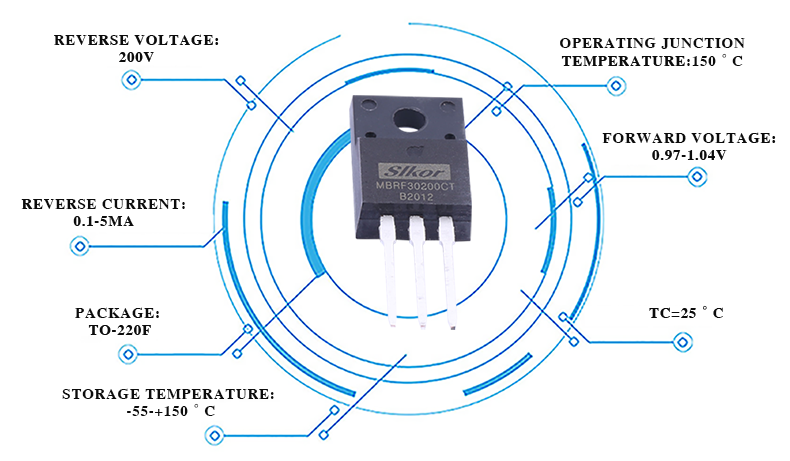

XST-EJG-MBRF30200CT schottky diodes has the characteristics of common cathode structure, low power loss and high efficiency, low forward voltage drop, high surge capability, etc.
| Parameter | Symbol | Value | Unit |
| Maximum Repetitive Reverse Voltage | VRRM | 200 | V |
| Maximum DC Reverse Voltage | VR | 200 | V |
| Average Rectified Forward Current, Tc=120℃ | IF(AV) | 15(Per Leg) 30(Per Device) | A |
| Peak Forward Surge Current,8.3ms Half Sine wave | IFSM | 250 | A |
| Operating Junction Temperature | TJ | 150 | ℃ |
| Storage Temperature Range | TSTG | -55to+150 | ℃ |
| Parameter | Symbol | Test Condition | Min | Max | Unit | |
| Maximum Repetitive Reverse Voltage | VRRM | IR=100μA | 200.0 | V | ||
| Reverse Current | IR | VR =200V Tc=25℃ VR =200V Tc=125℃ | 0.1 5 | mA | ||
| Forward Voltage | VF | IF=15A Tc=25℃ IF=15A Tc=125℃ IF=30A Tc=25℃ IF=30A Tc=125℃ | 0.97 0.87 1.14 1.04 | V | ||
