12V DC Magnetic Contact Alarm Sensor NO/NC Magnetic Proximity Switch Normally Closed
XST-WK-9700-A
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:XST-WK-9700-A
- Type:Other
- Application:electrical equipment
- Supplier Type:Other
- Brand:Magnetic Proximity Switch
- Operating Temperature:30℃~150℃
- Current Rating (Amps):8A 4A 2A
- Voltage Rating - AC:250V
- Voltage Rating - DC:12V 24V
- Series project:BL-WK-9700-A

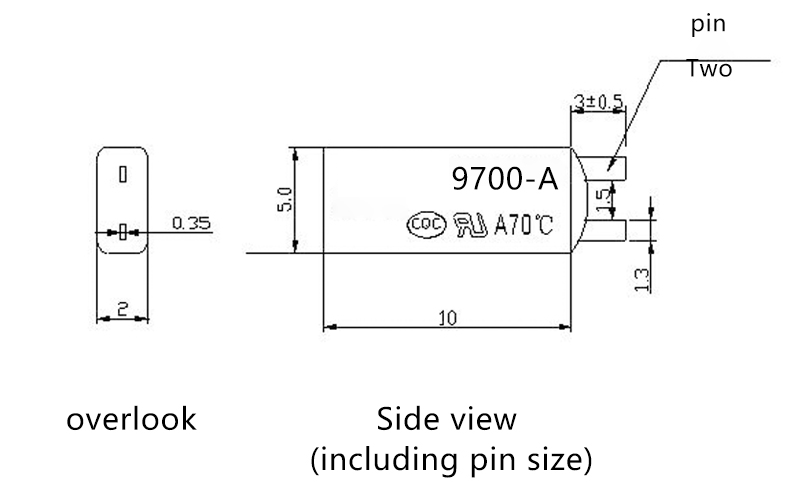

- Plastic shell:10*5*2MM
- Contact type:Normally closed/opened
- Operating temp:45-150℃,5℃ per stepper step
- Tolerance:±3℃ ±5℃
- Contact resistance:≤50mΩ
- Reset temp:action temp down 10-45℃
- Electrical strength:AC1500V/m in/min No breakdown
- Cycle lifetime:≥10000 times

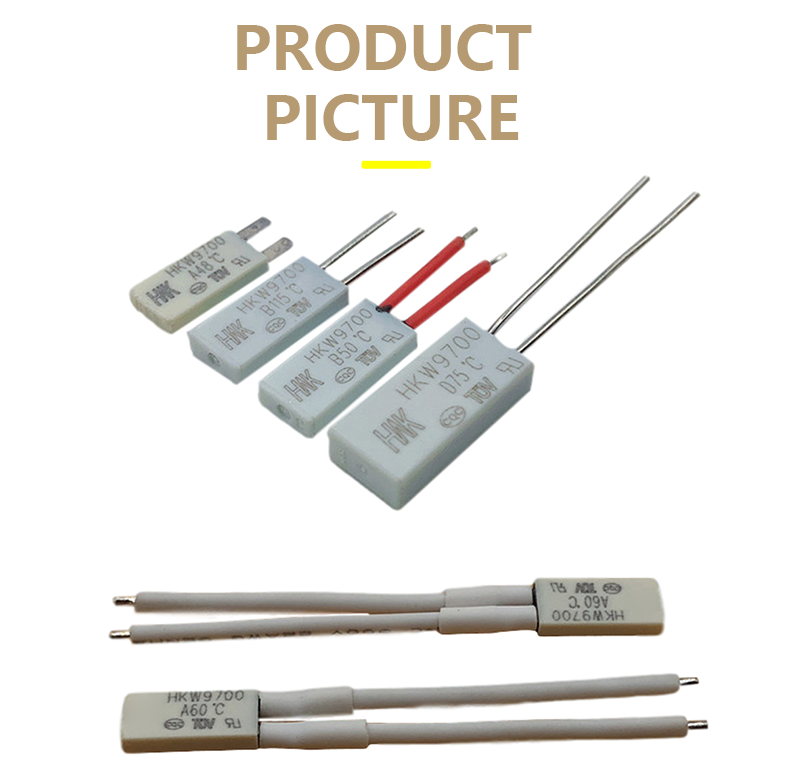

XST-WK-Hk9700-A series thermal protector is ultra-small in size, sensitive to temperature, accurate in protection, and installed by patch, which is especially suitable for the safety protection of various circuit boards. Ultra-small volume, more flexible and convenient installation, sensitive to temperature, quick action, quick and convenient plug-in installation, meeting ROHS standard of environmental protection, normally open and normally closed optional.
| Series project | XST-WK-9700-A |
| Plastic shell | 10*5*2MM |
| Contact type | Normally closed/opened |
| Operating temp | 45-150℃,5℃ per stepper step |
| Tolerance | ±3℃ ±5℃ |
| Contact resistance | ≤50mΩ |
| Reset temp | action temp down 10-45℃ |
| Electrical strength | AC1500V/m in/min No breakdown |
| Cycle lifetime | ≥10000 times |
