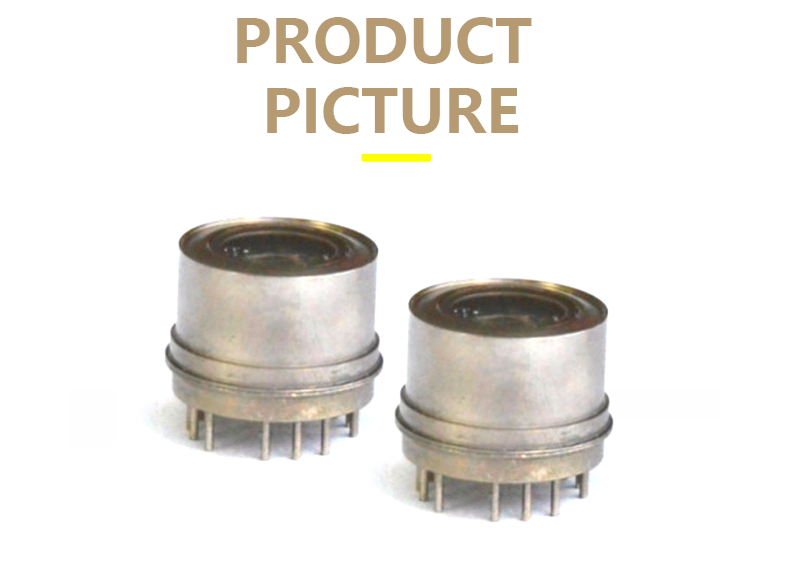

12V APD four-quadrant photoelectric detection preamplifier for laser guidance and tracking
- Model Number:XST-8M2404-2
- Type:Laser Diode
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Package Type:Through Hole
- Max. Forward Voltage:15V
- Brand:detection preamplifier
- Operating Temperature:-40~+60℃
- Mounting Type:Through Hole
- Diameter of photosensitive surface:4mm
- Spectral response wavelength:1064nm
- Temperature bias coefficient:3±0.4V/℃
- Output voltage pulse width:300~800ns
- Dark noise peak-to-peak:≤15mV
- Temperature sensor scale factor:10±2mV/℃
- Temperature sensor zero voltage:750±20mV
Introduce

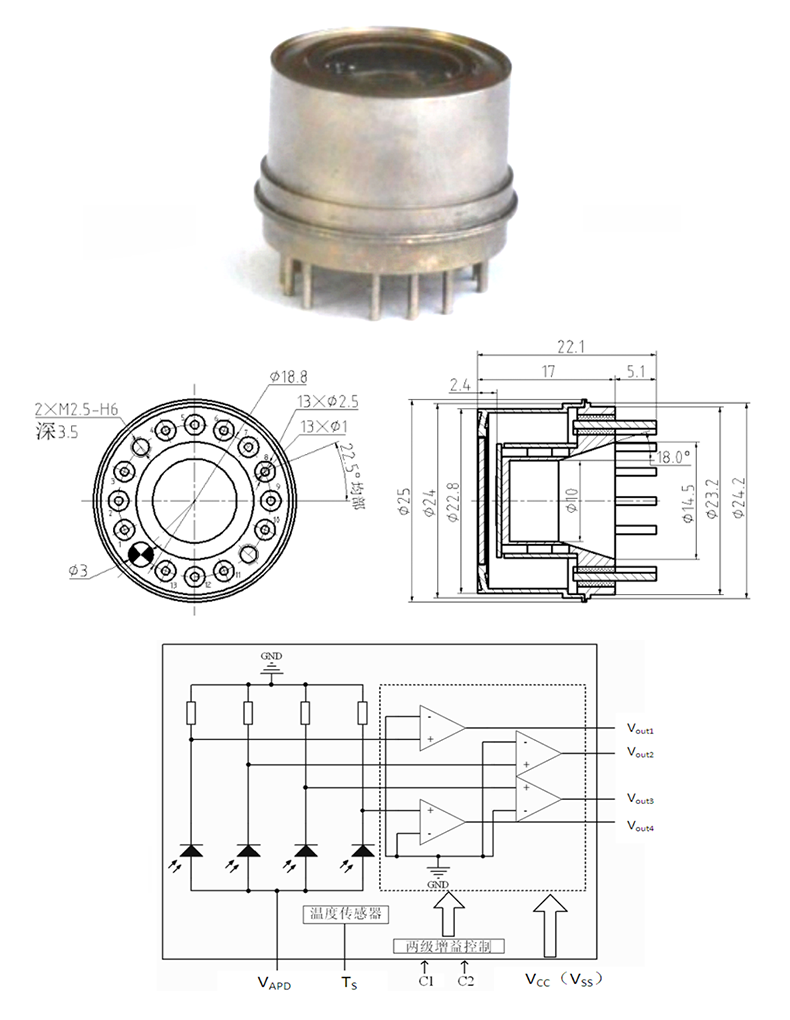

The 8M2404-2 photodetector preamplifier is composed of an avalanche photodiode (APD) and a low noise preamplifier circuit. The product has the characteristics of low noise, high response, low power consumption and controllable gain.
Gain control: when the control voltage is 12±1.2V, the control attenuation factor is 15±3 times; When the control voltage is 0V, the control attenuation factor is 0 times.
Features
Photosensitive surface diameter: Φ4mm
Operating wavelength: 1064nm
High response: ≥3.0 x 105V/W
Low noise: ≤15mV
Package form: TO-25
Integrated temperature sensor outputs real-time temperature
Adopt ±12V dual power supply
Application
Laser guidance and tracking
Laser positioning, displacement monitoring
Other photoelectric detection
| Parameter name | Maximum rating | Unit |
| Working voltage | ±15 | V |
| The bias voltage | -350 | V |
| Working temperature | -40~+60 | ℃ |
| Storage temperature | -50~+85 | ℃ |
| Parameter name | symbol | Test conditions (TC=22±3℃) | parameter value | Unit | |
| Diameter of photosensitive surface | D | - | Φ4 | mm | |
| Photoelectric parameters | Spectral response wavelength | λ | - | 1064 | nm |
| Temperature bias coefficient | - | - | 3±0.4 | V/℃ | |
| The responsivity | Re | λ=1064nm;τ=20ns;f=10KHz; f=1000nW;VR=-150V | ≥3.0×105 | V/W | |
| Output voltage pulse width | Tw | λ=1064nm;τ=20ns;f=10KHz; f=1000nW;VR=-150V | 300~800 | ns | |
| Dark noise peak-to-peak | Vnp-p | A dark background | ≤15 | mV | |
| Pulse polarity | - | - | negative | - | |
| C1 control factor | - | control voltage:+12V | 15±3 | multiple | |
| C2 control multiple | - | control voltage:+12V | 15±3 | multiple | |
| Measuring temperature range | - | - | -40~+60 | ℃ | |
| Temperature sensor scale factor | - | - | 10±2 | mV/℃ | |
| Temperature sensor zero voltage | - | T=25℃ | 750±20 | mV | |
